10Base-T to 10Base-2 Converter

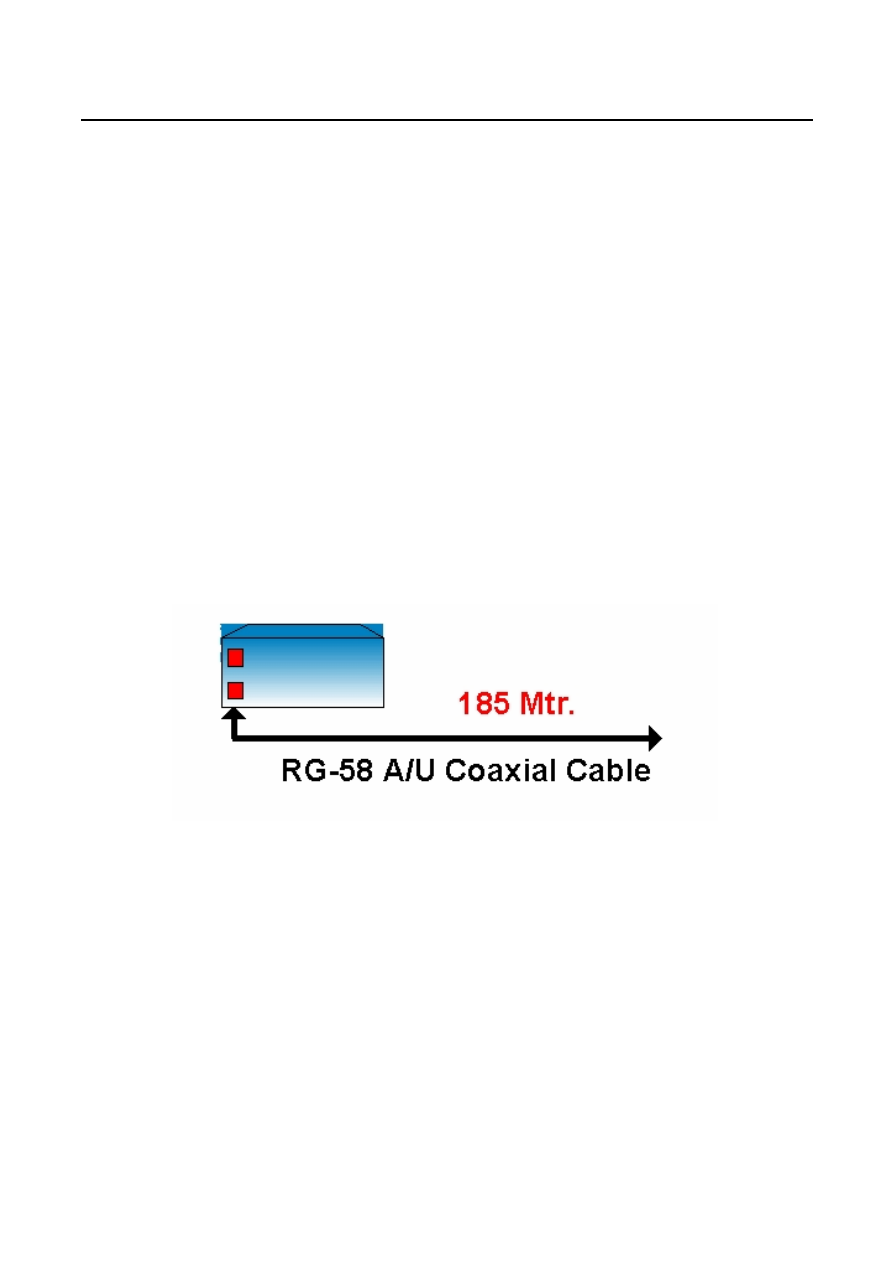

10Base-2 Connection
To connect to an Ethernet using 10Base-2 cable, do
the following:

1. Attach the supplied BNC T-connector to the

Converter’s BNC connector.


2. Connect one end of a Thinnet (10Base-2) coaxial

cable to the BNC T-connector attached to your
Converter.

3. Connect the other end of the coaxial cable to the

BNC T- connector attached to the Ethernet device.



Note: If either your converter or the Ethernet device is
an end node, attach a BNC terminator to the open
connector on the BNC T-connector.
