Lippert Components Bike and Tire Rack User Manual
Page 3

Rev: 09.25.2014
Page 3
Bike Rack and Tire Carrier Owner's Manual
Prior To Operation
1. Remove all loose items from bicycles (pumps, bags, etc.)
2. Check that all quick release hubs are tight.
The max load and rating per the applicable product is referenced on Page 4. The weight limit includes all items
secured to the bumper, including mounting devices, attachment hardware, spare tires, bikes and load attaching
devices.

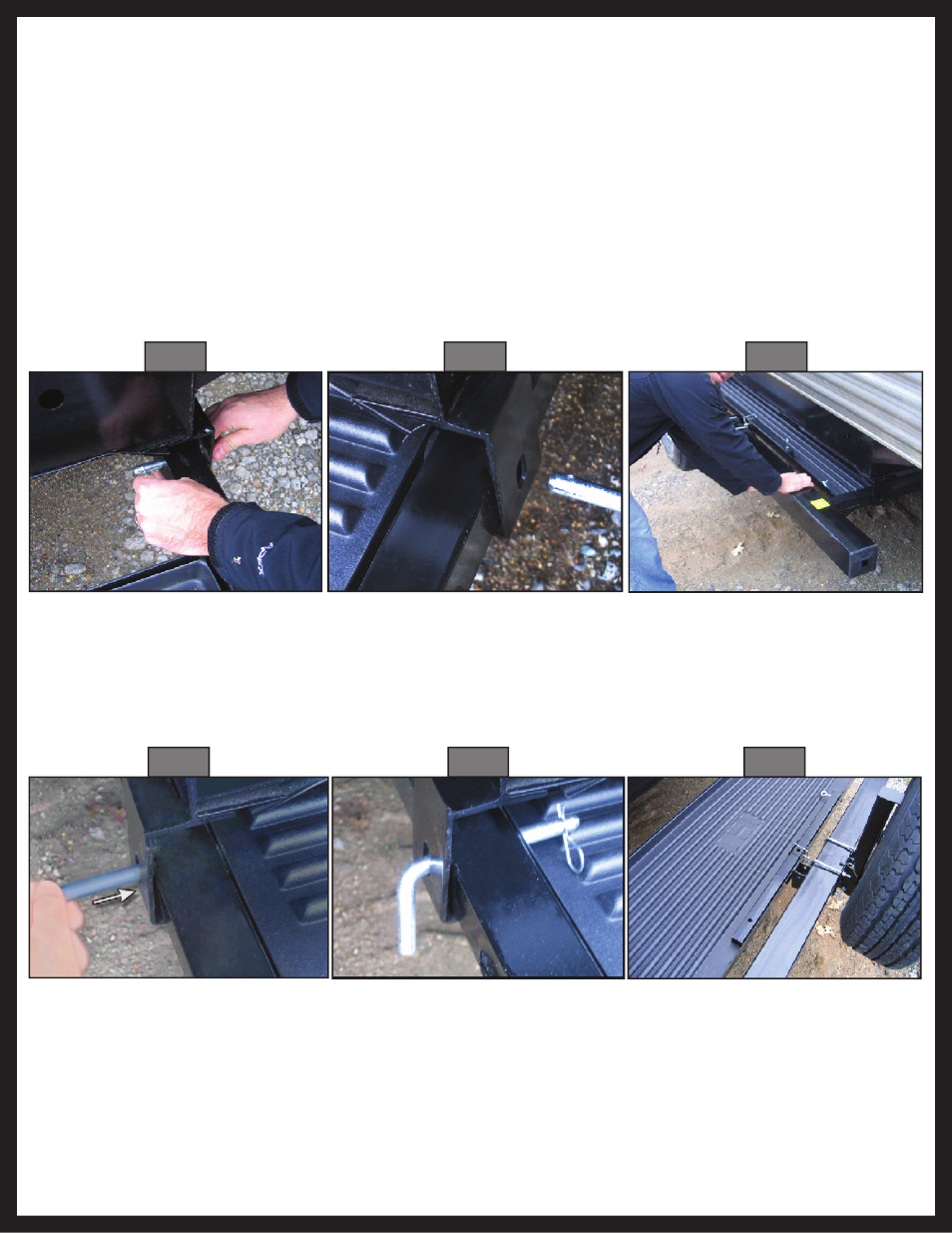

Manual Slide-Out Bike Rack Operation
1. Pull hair pin from cane bolt (Fig. 1).
2. Pull cane bolt from bike rack assembly. Repeat steps 1 and 2 on opposite side of the assembly (Fig. 2).
3. Extend the bike rack by pulling on the bumper to extend (Fig. 3).
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Fig. 6
NOTE: DO NOT attempt to extend the bike rack by pulling on the spare tire rack.
4. After bike rack is extended, replace cane bolt in assembly bracket (Fig. 4).
5. Replace hairpin in cane bolt (Fig. 5).
6. Once the bike rack is extended, it is ready to set up to store the bicycle(s) (Fig. 6).
