Lippert In-Wall Troubleshooting Guide

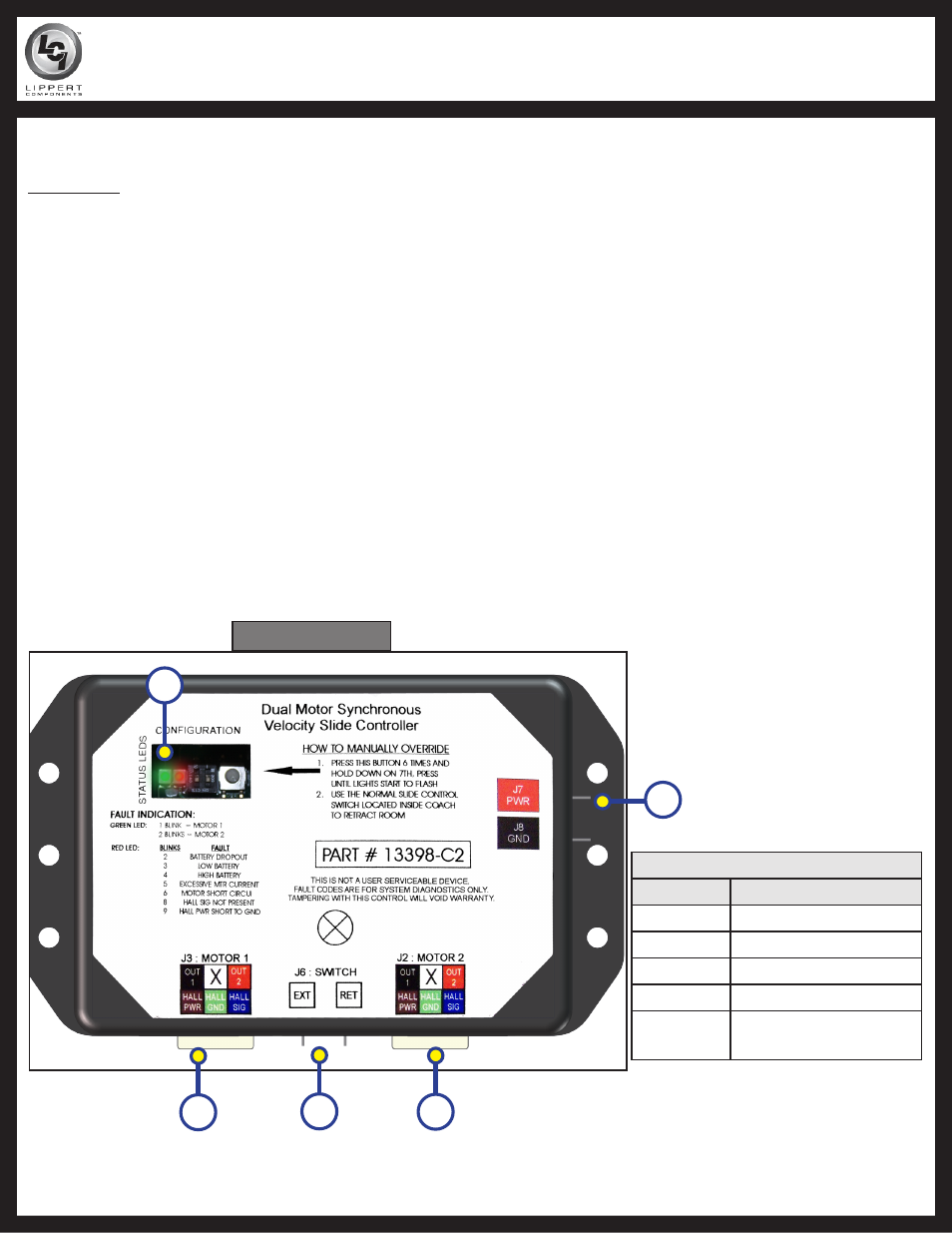

Fig. 1 - Controller
A C B
D
E
Controller (Fig. 1)
Callout Description
A Motor 1 Junction
B Motor 2 Junction
C Switch Junction
D Power Junction
E
Controller LED
Display
System Inoperative
Controller
1. Locate Controller (Fig. 1).
2. Activate switch.
3. Look for the status LEDs on the controller to light while switch is activated (Fig. 1E).
4. If status LEDs light, but no error codes are present, skip to page 9 of this guide to do a visual inspection
of the mechanical portions of this system.
5. If status LEDs do not light, and no error codes are present, check the following:
A. Check for 12VDC in to controller (red and black terminals) (Fig. 1D).
B. Check for 12VDC at switch connection on both extend and retract (Fig. 1C).
C. Check the battery for 12VDC.
6. If error codes are present, refer to the label on the controller for error identification.
