AUXILIARY OPERATION

The Lippert XL Hydraulic Slideout and HLG System can be run with auxiliary
power devices like electric drills, ratchet wrenches or cordless screwdrivers. In
the event of electrical or system failure, this manual method of extending and
retracting the jacks can be used. A standard handheld drill is all that is required.

NOTE: It is suggested to use a power drill running on AC power instead of a
corless drill with a rechargeable battery pack. The auxiliary operation takes an
extended period of time to finish and may quickly run batteries down.

See the instructions below:

1. Remove protective label. (See Fig 3).

2. Using a standard hex bit, insert into auxiliary drive device, i.e.
cordless drill or screwdriver or ratchet wrench.

3. Insert hex bit into coupler found under protective label, Fig. 4

4. Run drill forward or clockwise to extend slideout room and in
reverse or counterclockwise to retract slideout room.

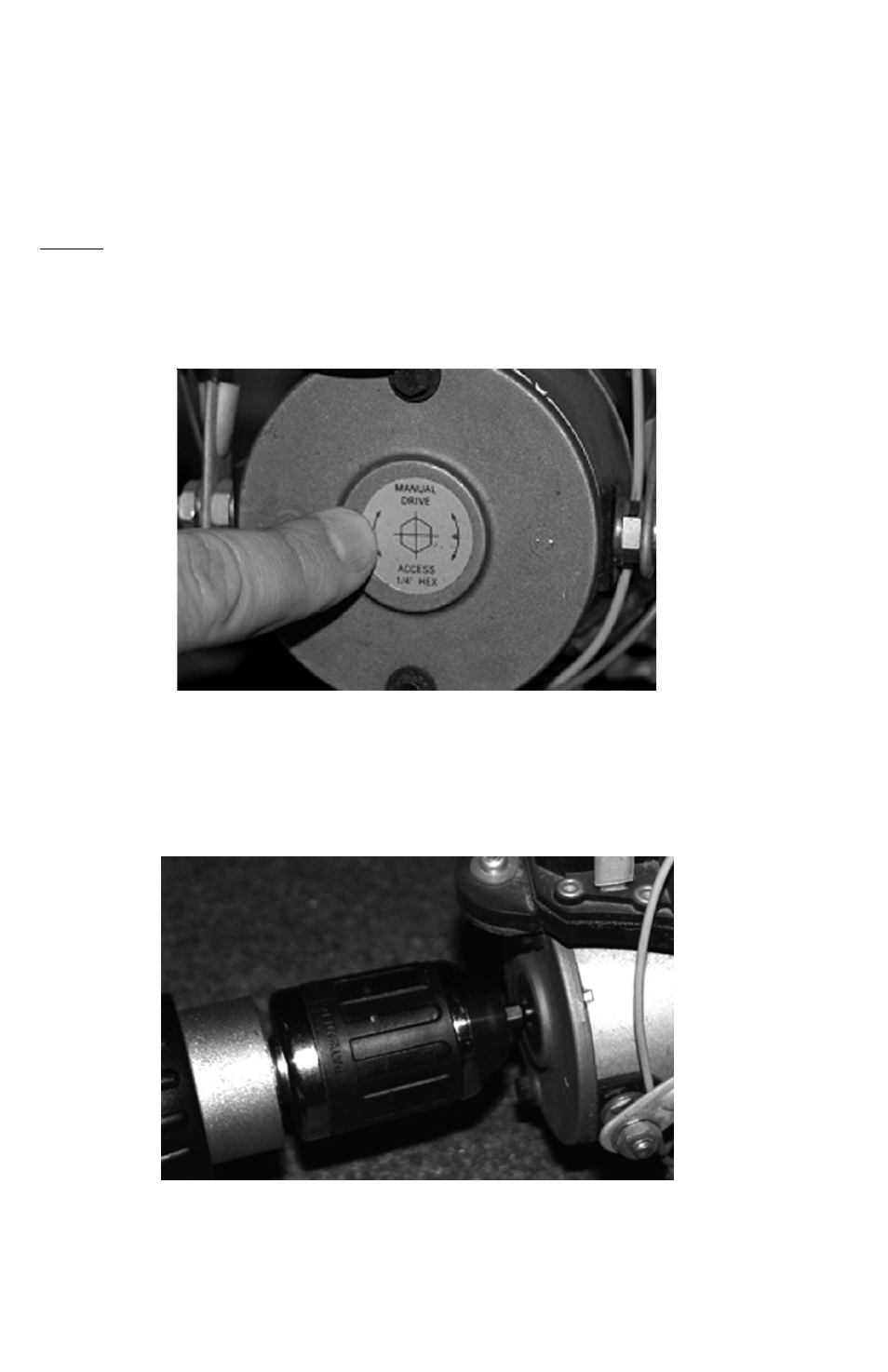

Fig. 3

Fig. 4
