Lippert Components Level Up - Manual (Page 7)

Rev: 12.15.2014
Page 7
Level Up Towable Owner's Manual
NOTE: If the auto level sequence was started with the front of the unit in a below level condition, the
Hitch Recognition will not function and the LCD will display “Feature Disabled.” In order for hitch
recognition feature to function, the auto level sequence MUST be started with the front of the unit
above level.
4. Connect tow vehicle and make sure travel trailer and hitch are connected and locked.
5. Push “UP” arrow until ”AUTO RETRACT” appears in LCD screen.
6. Push “ENTER.” System will immediately retract all jacks.
Manual Operation
1. Front landing gear (5th Wheels) or Front jacks (Travel Trailers)
NOTE: The landing gear or front jacks will operate manually any time system is “ON” except in “AUTO
MODE.”
A. Push “ON/OFF” (Fig. 1K) to turn system on.
B. Push “UP” arrow (Fig. 1A) once or until screen reads “MANUAL MODE” (Fig. 4).
C. Push “ENTER” (Fig. 1C) once while screen reads “MANUAL MODE" (Fig. 4).
D. Push “FRONT” (Fig. 1G) to extend front landing gear or front jacks.
E. Push “RETRACT" (Fig. 1D) and orange LED (Fig. 5) comes on.
F. Push “FRONT” (Fig. 1G) to retract front landing gear or front jacks.
NOTE: If orange LED (Fig. 5) is on, landing gear or jacks will retract. If orange LED (Fig. 5) is off, landing gear
or jacks will extend.
G. Push “ON/OFF” to turn system off.
H. After 3 minutes system will turn off by itself.

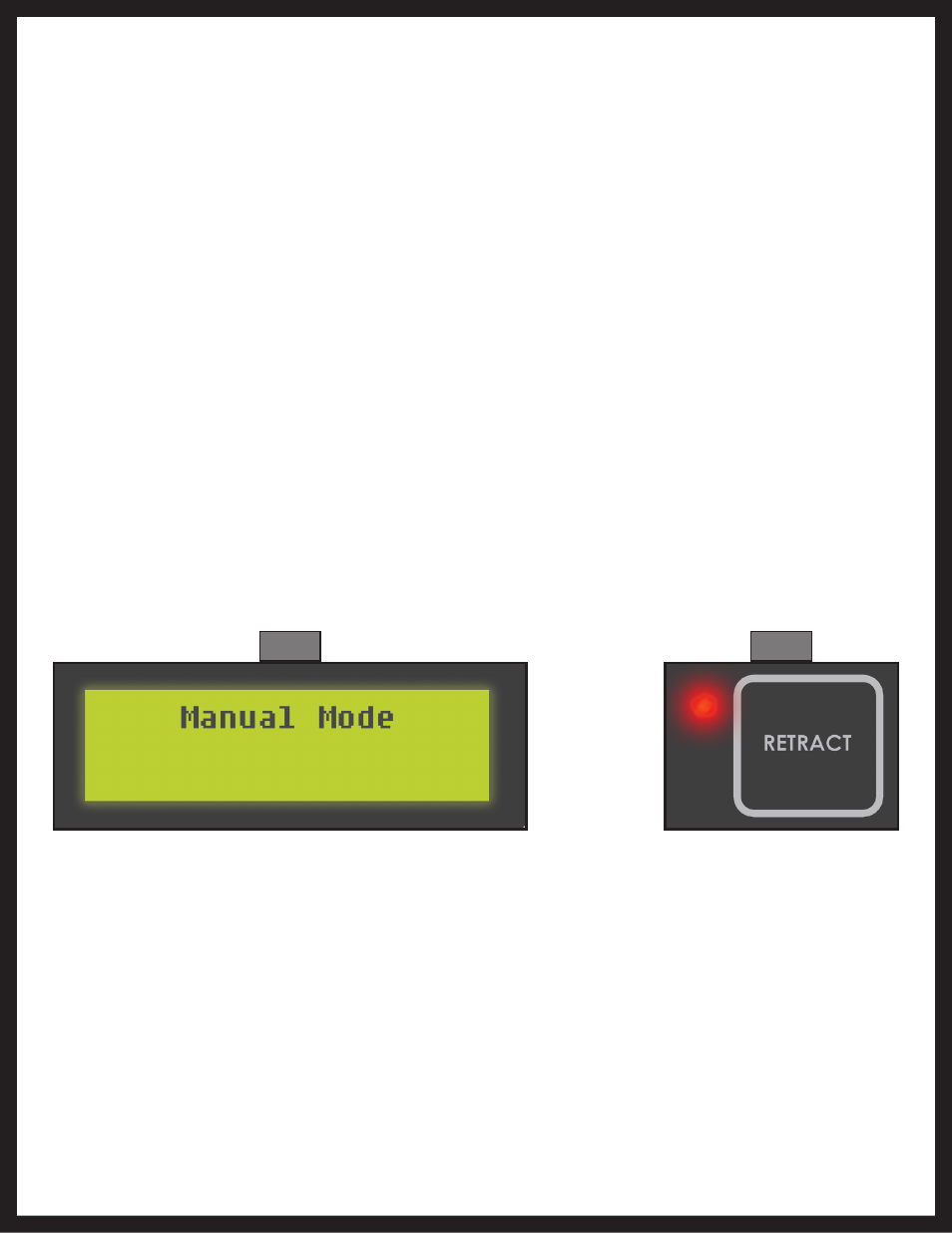

Fig. 4 Fig. 5
2. Level-Up® jacks - EXTEND
A. Turn “ON/OFF” button “ON."
B. Push scroll arrow to display “MANUAL MODE” (Fig. 4).
C. Push “ENTER" button, “MANUAL MODE” displayed (Fig. 4).
NOTE: By pushing “RIGHT,” passenger side Level-Up® jacks operate. By pushing “LEFT,” driver side Level-Up®
jacks operate, and so on.
3. Level-Up® jacks - RETRACT
A. Push “RETRACT" and orange LED (Fig. 5) will come on.
B. Push “REAR” to retract all Level-Up® jacks.
C. To extend, the “RETRACT“ light (Fig. 5) should be off.
NOTE: The side to side movement in manual mode is limited to 5 o of tilt.
