7,000-LB AXLE WHEEL END COMPONENTS
AXLES AND SUSPENSION
7,000-LB AXLE WHEEL END COMPONENTS
AXLES AND SUSPENSION
A
B
C
D
E
F
G
I
H

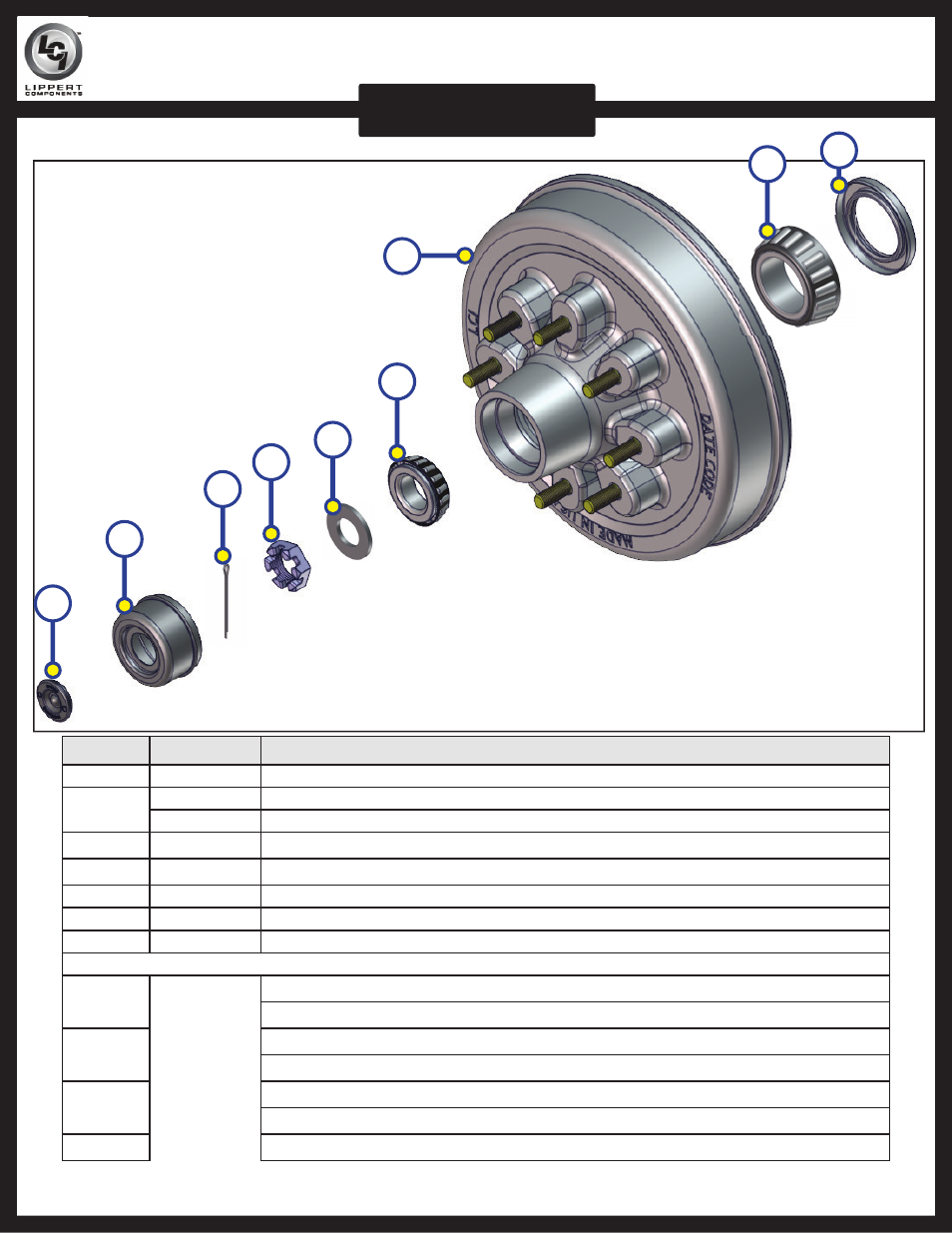

Callout Part # Description
A 122065 Rubber plug for lubed grease caps
B
127300 Dust Cap, for 2.75" Bore, Super lube
127206 Dust Cap, for 2.75" Bore, Non-lube
C 122075 Cotter Pin
D 122081 Spindle Nut, 6 Slot
E 179660 Spindle washer, round ID
E1 172888 Spindle washer, for spindle with D-flat
E2 119216 Spindle locking tang washer
Use E1 and E2 in place of C and E if spindle has no hole for cotter pin and has D-flat
F
127009 Outer Bearing Cone, 14125A
127012 Outer Bearing Cup, 14276
G
122096 Brake Hub; 865 - 1/2 "
134543 Brake Hub; 865 - 9/16"
H
122066 Inner Bearing Cone, 25580
124287 Inner Bearing Cup, 25520
I 122088 Grease Seal, Double Lip, 2.25" ID x 3.376" OD
