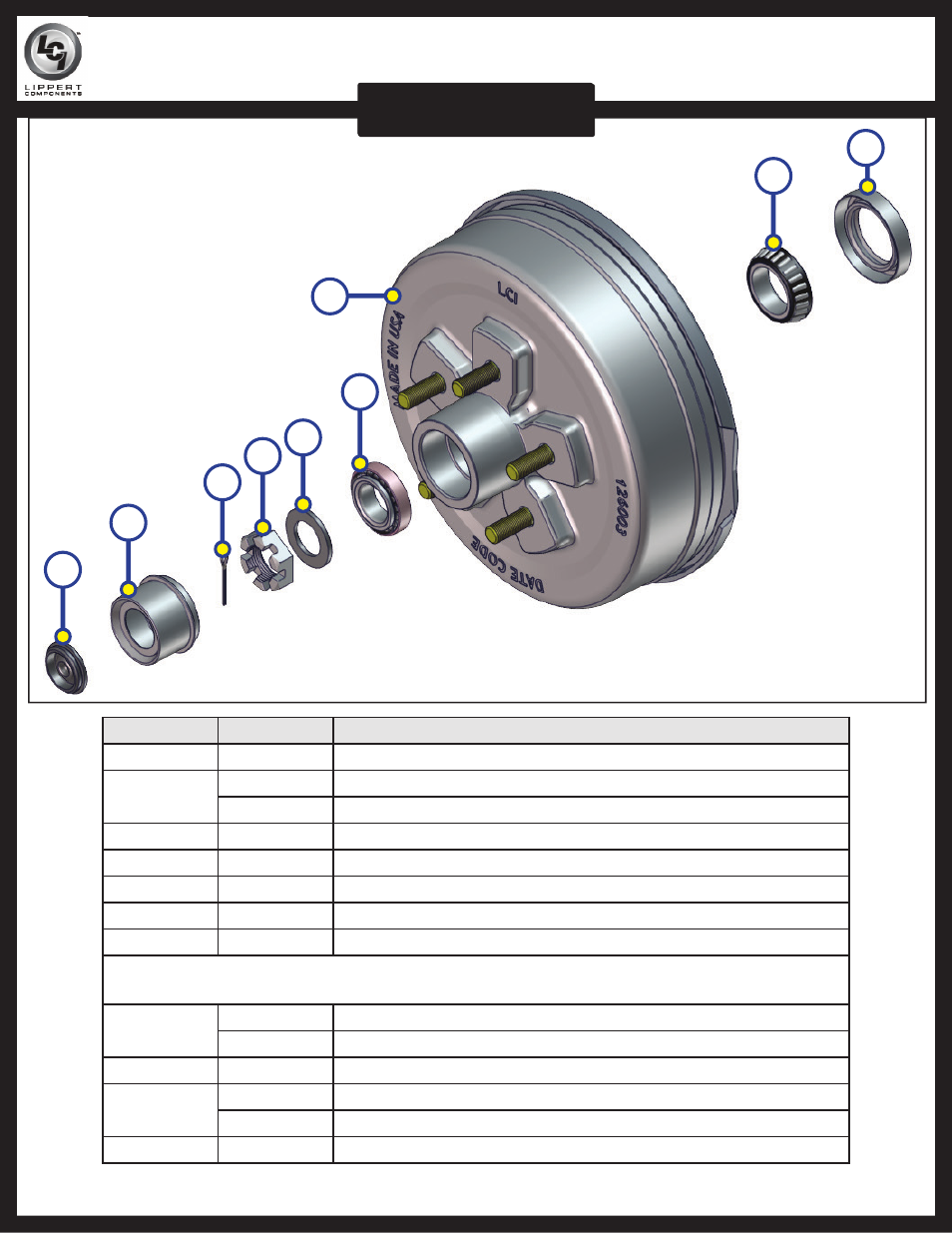

3,500-LB AXLE WHEEL END COMPONENTS
AXLES AND SUSPENSION
Callout Part # Description
A 122065 Rubber plug for lubed grease caps
B
122067 Dust cap, for 2" bore, super lube
122099 Dust cap, for 2" bore, non-lube
C 122075 Cotter pin
D 122081 Spindle nut, 6 slot
E 119214 Spindle washer, round ID
E1 119215 Spindle washer, for spindle with D-flat
E2 119216 Spindle locking tang washer
Use E1 and E2 in place of C and E if spindle has no hole for cotter pin and has D-flat on all
axles built prior to 2009.
F
122089 Outer bearing cone, L44649
125102 Outer bearing cup, L44610
G 126003 Brake hub; 545-1/2"
H
122092 Inner bearing cone, L68149
124296 Inner bearing cup, L68111
I 122087 Grease seal, double lip, 1.72" ID x 2.565" OD
A
B
C
D
E
F
G
H
I
