D. understanding the reticle – Leapers 30mm 36-color Crossbow Scope (SCP3-1428CRWQ) User Manual
Page 6

10
11

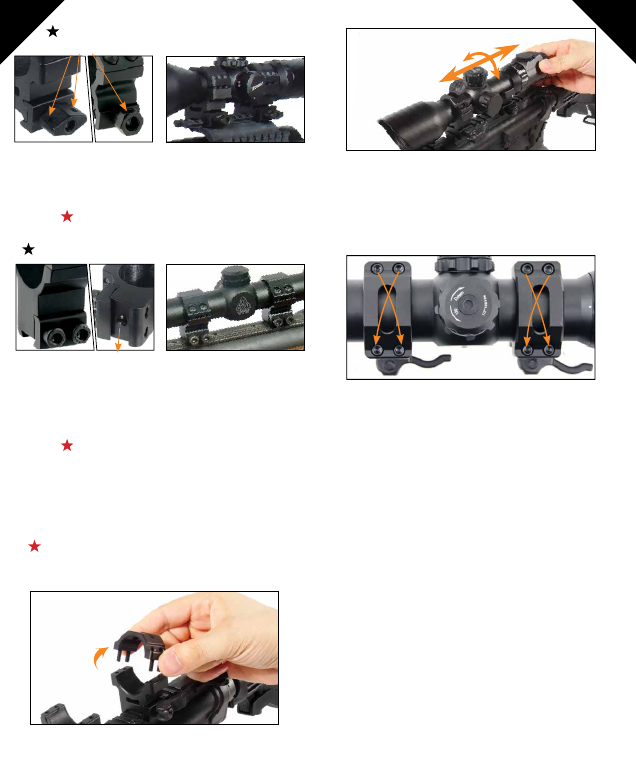

1. Fit the ring bases to the mount rail of the rifle.
2. Make sure that the Stop Pin in one of the rings fully sink into the
position hole on the rail if applicable. Insert the short end of the
Allen Wrench into the screw and fully tighten by turning the long
end and ensure a firm grip.
Mounting C-4 Rings on Rail
1
3
8
6
5
7
4
2
Stop Pin
Locking Holes
1. Fit the ring bases to the mount rail of the rifle.
2. Tighten the Twist Lock or the Thumb Nut with your finger. To ensure
a firm grip, plug the long end of the Allen Wrench into the Locking
Holes and further tighten it by turning the short end.
Mounting C-2 or C-3 Rings on Rail
Mounting Scope in Rings
(Ring style in images is for illustration purposes
only. Style may vary.)
1. Remove the top half of the ring by loosening the screws and
slowly backing them out.
2. Place your scope on the ring bases. Put the rifle to your
shoulder in your natural shooting position and adjust the
scope eye relief until you achieve a full field of view. When
you have found the ideal eye relief, rotate the scope so the
reticle crosshair is vertical and perpendicular to the rifle.
3. Replace the top ring halves and tighten the screws evenly
by the cross-torque pattern. Do not over-tighten the screws
as damage to scope tube may occur. It is recommended
to grasp the Allen wrench by its short end to perform final
tightening of the screws with torque value at about 15
inch-lb. Using the long end of the Allen wrench to tighten
ring screws will result in over-tightening and may cause
permanent damage to rings and deformation of scope tube.
The scope is now ready to be zeroed.
Go to Mounting Scope in Rings
Go to Mounting Scope in Rings
1. Each scope has a reticle for aiming. A reticle is a thin planar
component disposed perpendicular to the optical axis inside the main
tube. It is made by etched metal film or etched glass. The former
is called Wire Reticle, and the latter is called Etched Glass Reticle.
2. For Leapers riflescopes, the reticle is on the second image plane.
The reticle does not change when the magnification is adjusted. But,
the space the reticle occupies on the target image does change when
magnification changes. The smaller the magnification, the bigger
space the reticle occupies on the target image.
3. Leapers offers a variety of reticles for different scopes. See the reticle
table for the introduction.
d. understanding the reticle
