Warning, A. scope parts illustration – Leapers 30mm 36-color Crossbow Scope (SCP3-1428CRWQ) User Manual
Page 3

4
5

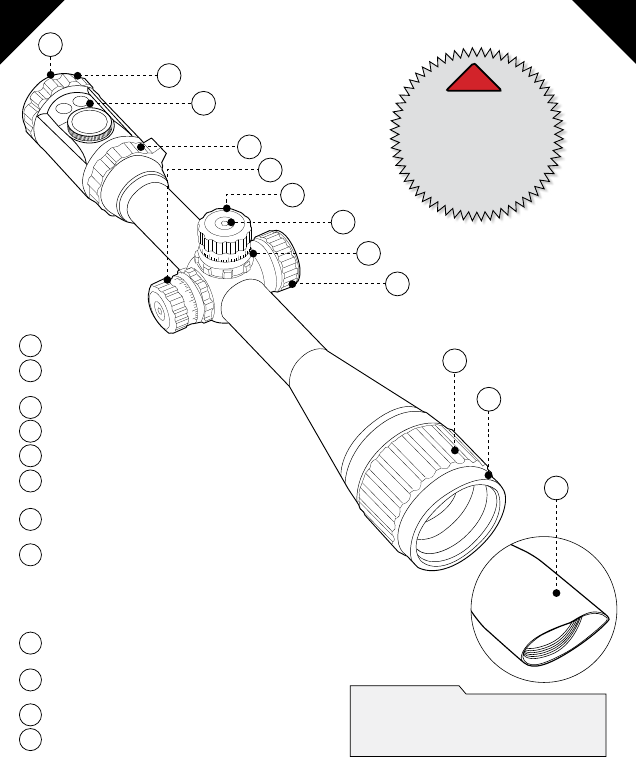

a. scope parts illustration
Read entire manual before
mounting your scope.
Make sure the firearm
is not loaded upon
installation.
!
Warning:
G
R
01
02
03
09
11
10
06
07
08
05
04
12
Note:
Scope diagram is for illustration purposes only,
not intended to represent your actual product
appearance.
PARTS LIST
01
Eyepiece Assembly
02
EZ-TAP Control Panel (For Reticle Illuminated
Models with IE Capability)
03
Power Ring (For Variable Power Models Only)
04
Windage Adjustment Knob
05
Elevation Adjustment Knob
06
Adjustment Hex Screw (For Models with Center
Hex Screw in Turrets)
07
Zero Locking Ring (For Models with Zero Locking
Function)
08
Reticle Illumination Rheostat
(For Reticle Intensified Models Only)
OR
Parallax Adjustment Side Wheel
(For Side AO Models Only)
09
Objective Parallax Adjustment Ring (For Front AO
Models Only)
10
Objective Lens Protective Ring (For Models with
Protective Ring)
11
Ocular Lens
12
Integral Sunshade (For Models with Angled
Objective Bell)
