c. Mounting the Scope
CAUTION:
Always ensure your rifle is UNLOADED, UNCOCKED and,
where applicable, the safety catch is applied before fitting the scope.
Practice safe handling procedures at all times.

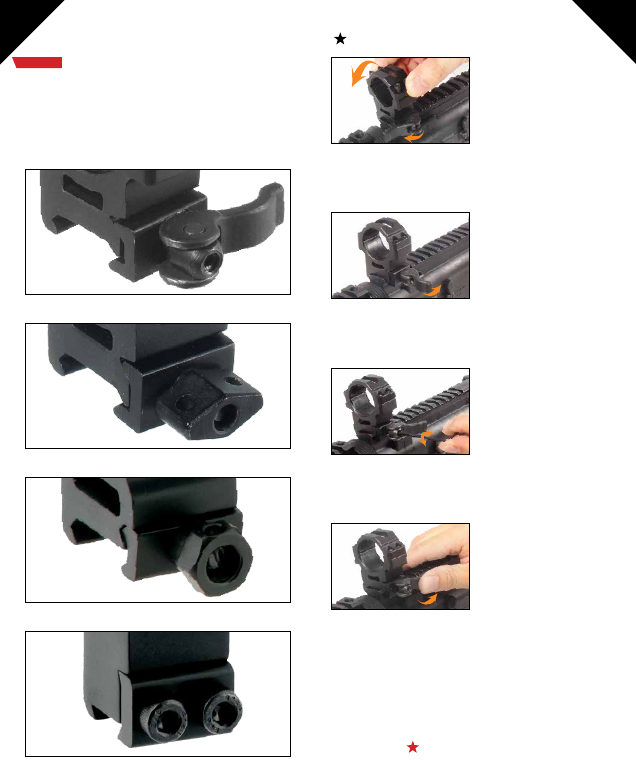

C-1. QD Lever Lock
C-2. Twist Lock
C-3. Thumb Nut Lock
C-4. Hex Screw Lock
Mounting C-1 Rings on Rail
1. Turn the Cam Lever leftward
to its unlocked position. Place
the QD ring on the Picatinny
rail at a desired position. Seat
the cross bolt at the bottom
of the ring into a selected
Picatinny slot.
2. Turn the Cam Lever from left
to right to begin locking the
QD ring on the rail, but do not
complete the locking motion,
leaving some travel distance
to allow for adjustment.
3. Use the included Allen wrench
to adjust the Hex Screw
at the side of the cam for
proper tension and fit against
the rail. Adjust clockwise to
increase the tension and
tighten the clamping width.
Adjust counter-clockwise to
decrease the tension and
increase the clamping width.
4. The optimal tension is
achieved when the side
plate first makes contact with
the Picatinny rail while the
Cam Lever still has enough
travel left for you to securely
snap into its locking position.
Once you achieve the optimal
tension, push the Cam Lever
all the way to the right for a
positive lock onto the rail.
You may repeat Step 3 and
4 if needed to find the best
clamping tension and locking
position for your rings on the
rail.
Ensure you have top quality rings from UTG. Buying cheap rings
is a false economy and can result in poor performance from your
combo.
