SEA Series Steam Sterilizers

Operation manual

2 7

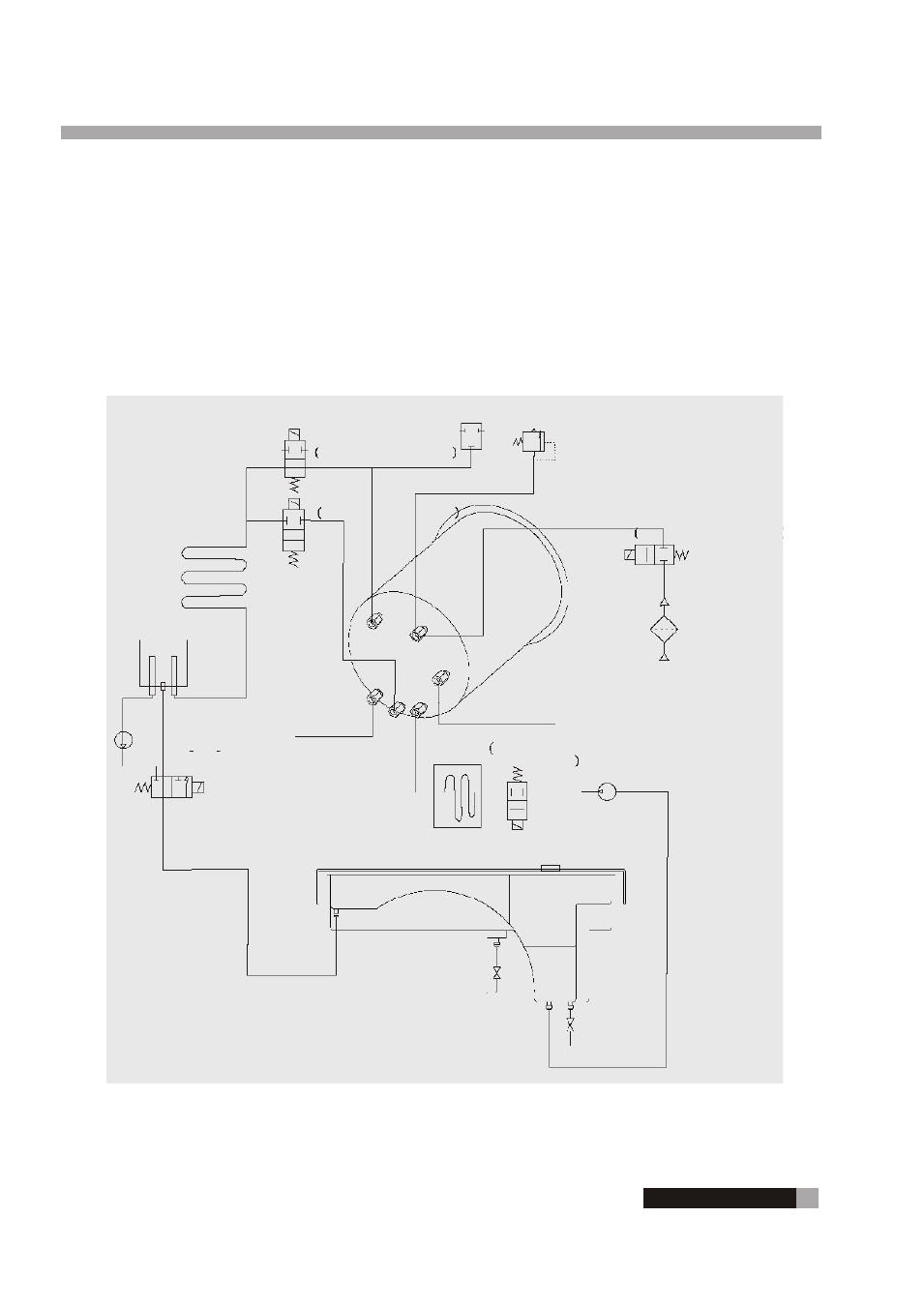

Piping diagram of 8L/12L

Fig 2.

Two pass valve

Vacuum pump

Condense pipe

two position three pass valve

Chamber temperature sensor

Exhaust solenoid valve

Normally open valve

Draning water solenoid valve

Normally open valve

waste water tank

waste water
drain connection

Steam

generator

Pressure sensor

Chamber

Steam solenoid valve

Normally

closed valve

water tank

manual water
filling exit

Safety valve

drain connection

Let in air pump

Let in air solenoid valve

Normally closed valve

Air filter
