Page 12 LAARS Heating Systems
----------- SETTINGS ------------
Season Winter
Set Point 70 F
BACK SELECT
BACK SAVE
------------- SEASON --------------
Winter
Summer
BACK SAVE
------------ SET POINT ----------
70
F
[]
--------- RESET RATIO ----------
1.00 OD=4.00 Sys
1.00 OD=3.00 Sys
1.00 OD=2.00 Sys
1.00 OD=1.50 Sys
1.00 OD=1.25 Sys
1.00 OD=1.00 Sys
1.25 OD=1.00 Sys
1.50 OD=1.00 Sys
2.00 OD=1.00 Sys
3.00 OD=1.00 Sys
4.00 OD=1.00 Sys
BACK SAVE
BACK START
-------- SYSTEM STARTUP ------
(START)
to continue
BACK CONTINUE
------------- WARNING ------------
THESE SETTINGS
CHANGE PRIMARY
SYSTEM FUNCTIONS.
BACK SAVE
-------- ARE YOU SURE? -------
No
Yes
BACK SAVE
---------- SENSOR TYPE ---------
Set Point F
Set Point C
Reset F
Reset C
BACK SAVE
------- OUTPUT A TYPE --------
4-20ma
0-10v
0-5v
2-10v
1-5v
BACK SAVE
------ MODULATION MODE ------
Normal
Parallel
BACK SAVE
--------- SETBACK MODE --------
Day/Night Schedules
External Signal
BACK SAVE
--------- SENSOR FAULT --------
All Off
All On
BACK SAVE
------- OUTDOOR CUTOFF -------
65
F
[]
BACK SAVE
-------------- OFFSET -------------
+0
F
[]
BACK SAVE
--- MINIMUM WATER TEMP ----
70
F
[]
BACK SAVE
--- MAXIMUM WATER TEMP ----
240
F
[]
BACK SAVE
----- PROVE/DHW SHARING ----
Prove
DHW Without Priority
DHW With Priority
BACK SAVE
---------- BOOST MODE ---------
30 Minutes
Disabled
BACK NEXT
--- SYS= 91 F, 10:57Am ---
BACK EXIT
--- OD= 54 F, 11:36Am ---
BACK SAVE
------ EMS INPUT MODE -------
Disable
Enable
Reset Options
Set Point
BACK SAVE
----- EMS 20ma SETPOINT-----
220
F
[ ]
BACK SAVE
------ EMS 4ma SETPOINT------
120
F
[ ]
BACK SAVE
------- OUTPUT B TYPE --------
4-20ma
0-10v
0-5v
2-10v
1-5v

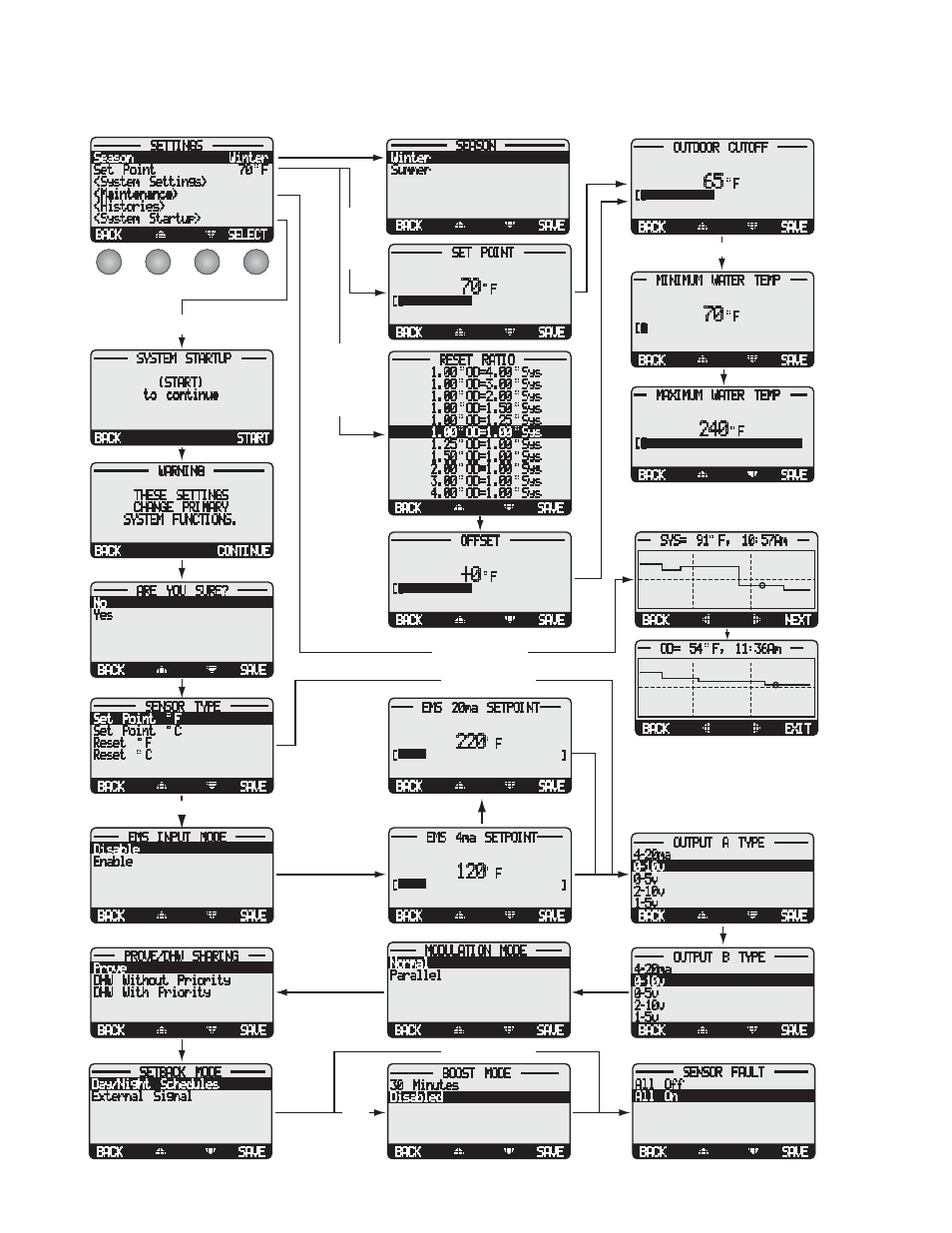

MENU SEQUENCE
