Mighty Therm

2

(200, 300, 400)

Page 17

Model

(Size)

20°F

25°F

30°F

35°F

flow

gpm

H/L

feet

flow

gpm

H/L

feet

flow

gpm

H/L

feet

flow

gpm

H/L

feet

200

17

1.6

14

1.0

11

0.7

10

0.5

300

26

3.5

20

2.3

17

1.6

15

1.2

400

34

6.3

27

4.0

23

2.8

19

2.1

Metric Equivalent
Model

(Size)

11°C

14°C

17°C

19°C

flow

lpm

H/L

m

flow

lpm

H/L

m

flow

lpm

H/L

m

flow

lpm

H/L

m

200

64

0.5

51

0.3

43

0.2

37

0.2

300

97

1.1

77

0.7

64

0.5

55

0.4

400

129

1.9

103

1.2

86

0.9

74

0.6

Notes: gpm = gallons per minute, lpm = liters per minute,

H/L = head loss, ft = head loss in feet,

m = head loss in meters.

Maximum temperature rise is 35°F (19°C), as shown.

Head loss is for boiler’s heat exchanger only.

N/R = not recommended.

Table 8. Water Flow Requirements - MT2H.

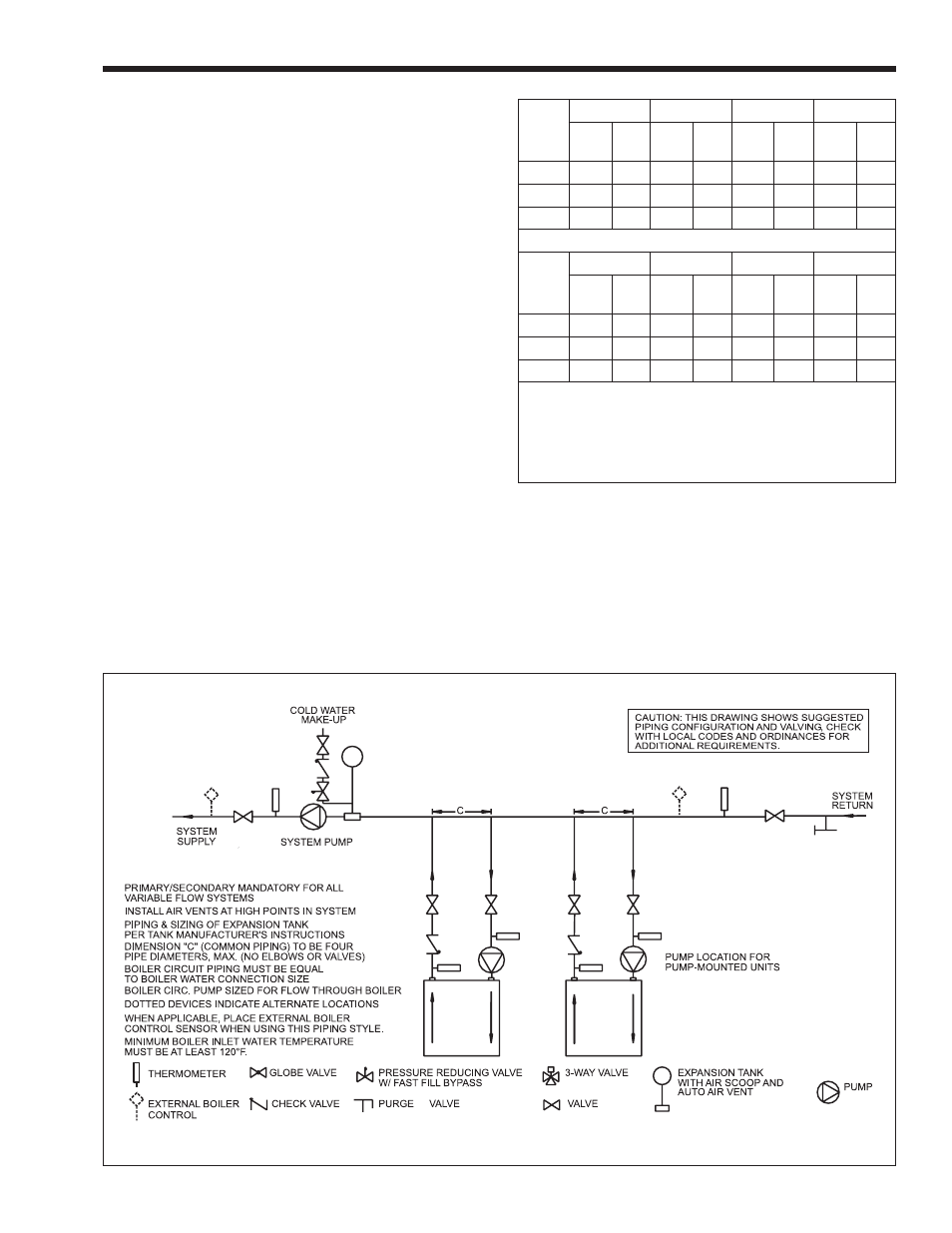

Figure 4. Hydronic Piping — Multiple Boilers, Primary Secondary System.

IMPORTANT NOTES: Different glycol products

may provide varying degrees of protection.

Glycol products must be maintained properly in a

heating system, or they may become ineffective.

Consult the glycol specifications, or the glycol

manufacturer, for information about specific

products, maintenance of solutions, and set up

according to your particular conditions. Never use

ethylene glycol (automotive antifreeze).
