Page 5
Mighty Therm
2
Page 5
or combustion air terminal terminate through a wall,
and there is potential for snow accumulation in the local
area, both terminals should be installed at an appropriate
level above grade.
The dimensions and requirements that are shown in
Table 1
should be met when choosing the locations for
the appliance.
1.6 Locating Pump-Mounted Water Heater
with Respect to Storage Tank(s)
For best results, a pump-mounted Mighty Therm2
water heater should be located within 15 feet (4.6m) of
the storage tank(s). The pump is sized for 30 feet (9.1m)
of piping.
If the appliance must be installed with longer
piping runs, then larger diameter pipe or tubing shall be
used. Consult the factory for assistance.

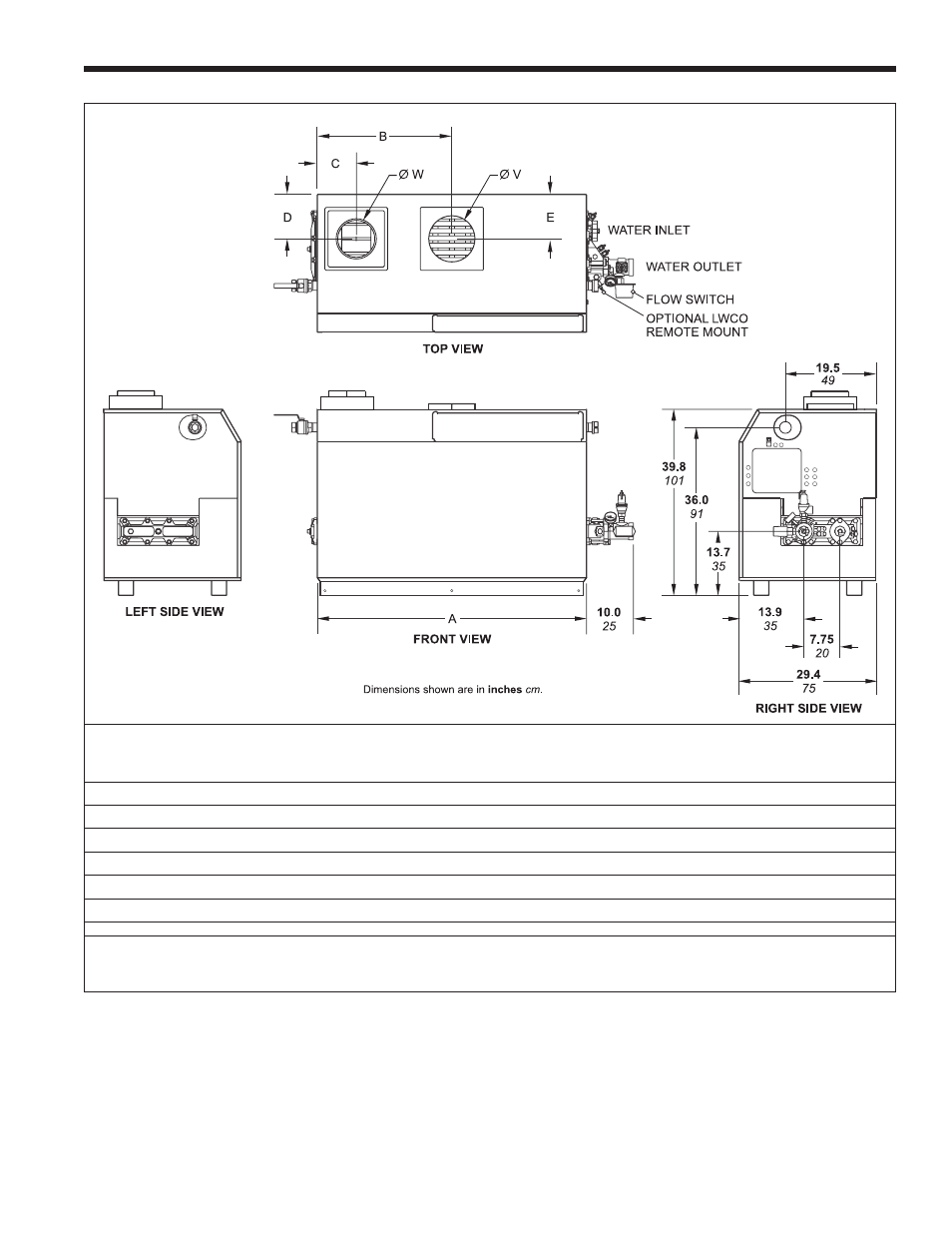

Figure 1. Dimensional Data (standard units).
Air
Vent
Shipping Weight
1
Unit
Conn.
Conn.
Size
A
B
C
D
E
W
V
lbs
kg
500
33¾ 85
16¾ 43
6½ 17
10 25
8 20
6 15
8 20
425 193
750
45¾ 116
22¾ 53
6½ 17
10 25
9½ 24
6 15
10 25
505 229
1000
57¾ 147
28¾ 73
6½ 17
10 25
9½ 24
8 20
10 25
615 279
1250
68¼ 173
34
87
10¼
26
10 25
9 23
8 20
12 30
675 306
1500
78¾ 200
39½ 100
10¼
26
10 25
9 23
8 20
12 30
760 345
1750
89¼ 227
44¾ 113
10¼
26
10 25
9 23
8 20
14 36
825 375
2000
99¾ 253
49¾ 127
10¼
26
10 25
9 23
12 30
14 36
955 434
NOTES: 1. Add 55 lbs (25kg) for pump-mounted units.
Dimensions in inches cm.
