Compressor: for details see instructions with the compressor. The compressor has a
safety valve and overheating protection!
Everything is set and checked by Kuzma Ltd. The only item missing is oil inside the
compressor and air intake filter, which must be fitted after transport. If the
compressor is in an upright position, however, it can be moved safely.
Note: The compressor is factory adjusted to a higher pressure (8 bar-120 psi) than quoted
in the Compressor Instruction Manual. (See label at the side of the cover!)
Note: Do not switch on the compressor before filling with oil and connecting the air
intake filter.
Note: Oil should last for at least 5 years of normal use and should be replaced when it is
very dark - almost black in colour.
Note: Check water condensation occasionally, 1-3 months approx.
If you have any questions just drop us an E mail:

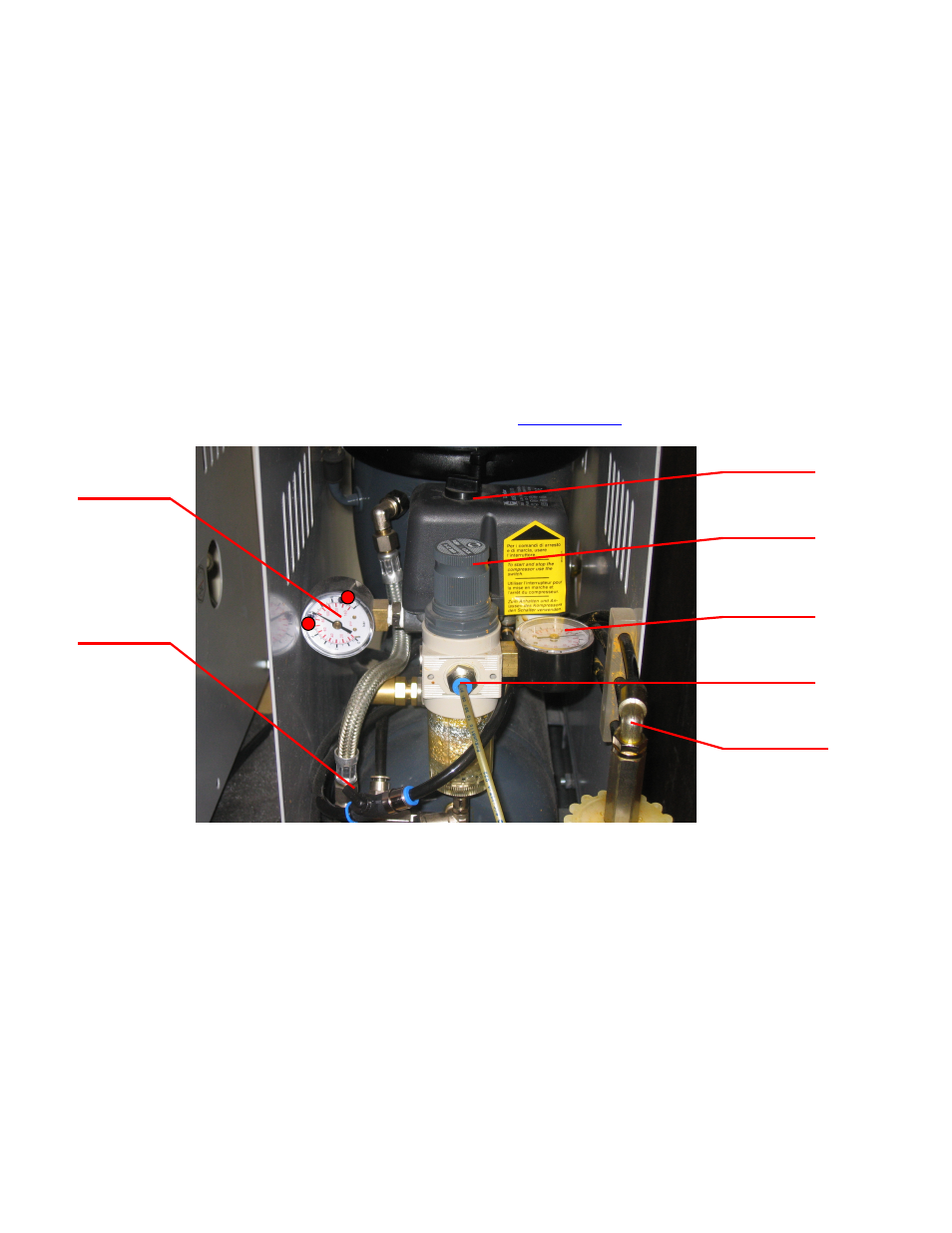

Compressor - front view
At one end of the compressor are filters and pressure gauge and at the other end are
main cable and input air filter. In the plastic bag inside the housing is an air intake
filter and nozzle for filling the oil. Remove the small plastic cap from the metal input
tube at the head of compressor, which is on the same side as the mains cable. Fix the
nozzle onto the oil bottle, after cutting the metal cover on the oil bottle and a 5-8 mm
of hose. Putting the nozzle into the metal tube, gently squeeze oil into the compressor.
At the side of the compressor is a glass bubble which will show the level of oil when
the compressor is not working. The whole bottle should go in. Wipe any spillage of
oil and fix on the air intake filter.
Connect the PVC tubes. It is a blue 'quick fit' fitting. Keep the valve closed at the tone
arm.
There are two pieces of PVC air supply tubing. The shorter connects the air supply
from the red filters to the tonearm and the longer connects the compressor to the red
Compressor pressure
indicator
Valve *
Mains switch
Pressure regulator
Output pressure indicator
Output tube
Drain bottle
