Parts Included:
 K13-001 & K13-006:

1x Chain Catcher
 1x M5 x 22.5 mm socket head stainless steel bolt
 1x M5 x 25 mm socket head stainless steel bolt
 1x M5 Flat washer
 1x Radius washer
 K13-001-SL1 (Shimano & Campagnolo)

1x Chain catcher
 1x M5 x 22.5 mm titanium bolt
 1x M5 Flat washer
 1x Radius washer
 K13-001-SL2 (SRAM)

1x Chain catcher
 1x M5 x 25mm titanium bolt
 1x M5 flat washer
 1x Radius washer
Tools/Items Required:
 Metric Allen Set (4mm for mounting bolt)
 Torque wrench
Installation Steps:
1. Position the chain on the inner (small) ring and the lowest (largest cog) gear in the back.

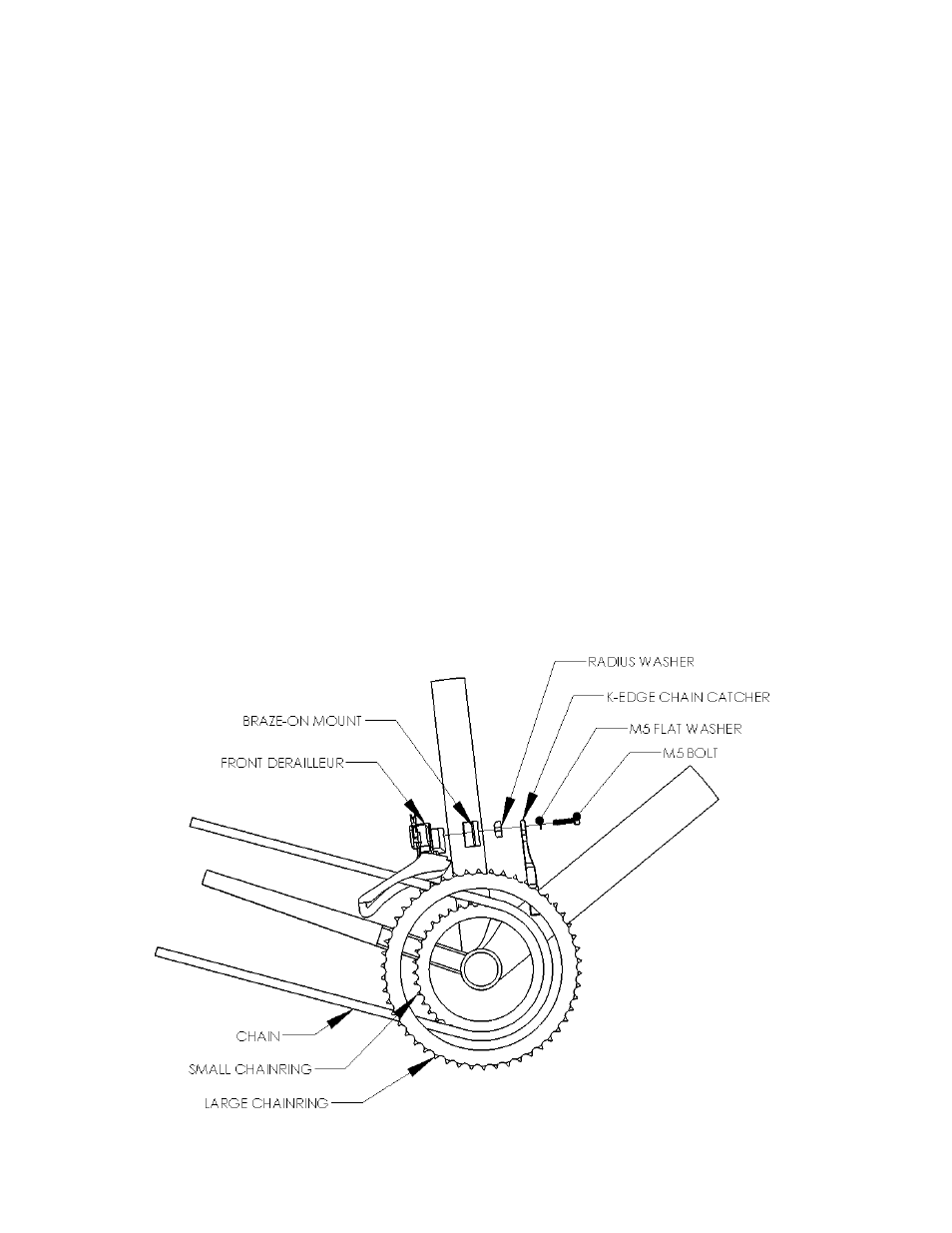

2. Thread the bolt and K-Edge assembly into the front derailleur and finger tighten to allow for both derailleur and chain
catcher adjustment. See Image below:
