FM Tuner
Frequency Range: 87.9 MHz to 107.9 MHz
Usable Sensitivity: 9 dBf
50dB Quieting Sensitivity: 15 dBf
Alternate Channel Selectivity: 70 dB
Stereo Separation (1 kHz): 38 dB
Frequency Response (
r3 dB): 30 Hz to 15 kHz
AM Tuner
Frequency Range: 530 kHz to 1710 kHz
Usable Sensitivity: 28 dB
PV
DVD Player
System:
Digital Versatile Disc System with CDDA
capable
Usable discs:
DVD video disc, Compact disc
Frequency Response:
20 Hz to 20 kHz (CD) (
r1 dB)
Signal to Noise Ratio: 100 dB (1 kHz)
Dynamic Range: 100 dB (1 kHz)
Distortion: 0.006%
USB
Specification: USB 2.0 Full Speed
File system: FAT12/16/32, non-VFAT-compliant
Playable audio format:
MP3 (.mp3): MPEG 1/2 Audio Layer-3
WMA (.wma): Ver. 7/8/9.1/9.2
AAC (.m4a): AAC format encoded by iTunes
and iTunes+ only
Maximum number of folders: 512
Maximum number of files: 255 (for a folder)
Maximum folder hierarchy: 8 levels (including Root)
Maximum power supply: 500 mA
Audio Amplifier
Maximum power output:
200 W (50 W
u 4)
Speaker impedance: 4
: (4 to 8 : allowable)
Input
Audio input sensitivity:
High: 0.65 V (at 2 V output)
Mid: 1.3 V (at 2 V output)
Low: 2.0 V (at 2 V output)
(input impedance 10 k
: or greater)
Video input:
1.0
r0.2 Vp-p (input impedance 75 :)
Video Output
Video output:
1.0
r0.2 Vp-p (output impedance 75 :)
LCD Monitor
Screen Size: 7-inch wide type
6" Width (152 mm)
u 3-5/16" Height (85 mm)
Display method:
Transmission type TN liquid crystal display
Drive method: TFT (thin-film transistor)
active matrix driving
Pixels: 336,960 (1440
u 234)
General
Power source voltage:
14.4 V DC (10.8 to 15.6 V allowable)
Ground: Negative
Current consumption: 3.5 A (1 W)
Auto Antenna Rated Current: 500 mA less
Dimensions of the Main Unit:
7" Width (178 mm)
u 3-15/16" Height (100 mm)
u 6-5/16" Depth (160 mm)
Weight of the Main Unit: 2.6 kg
Dimensions of the Remote Control Unit:
1-3/4" Width (43.4 mm)
u 1/2" Height (12.5 mm)
u 4-1/2" Depth (112.7 mm)
Weight of the Remote Control Unit:
60 g (including battery)
Note:
• Specifications comply with JEITA Standards.
• Specifications and design are subject to change
without notice for further improvement.

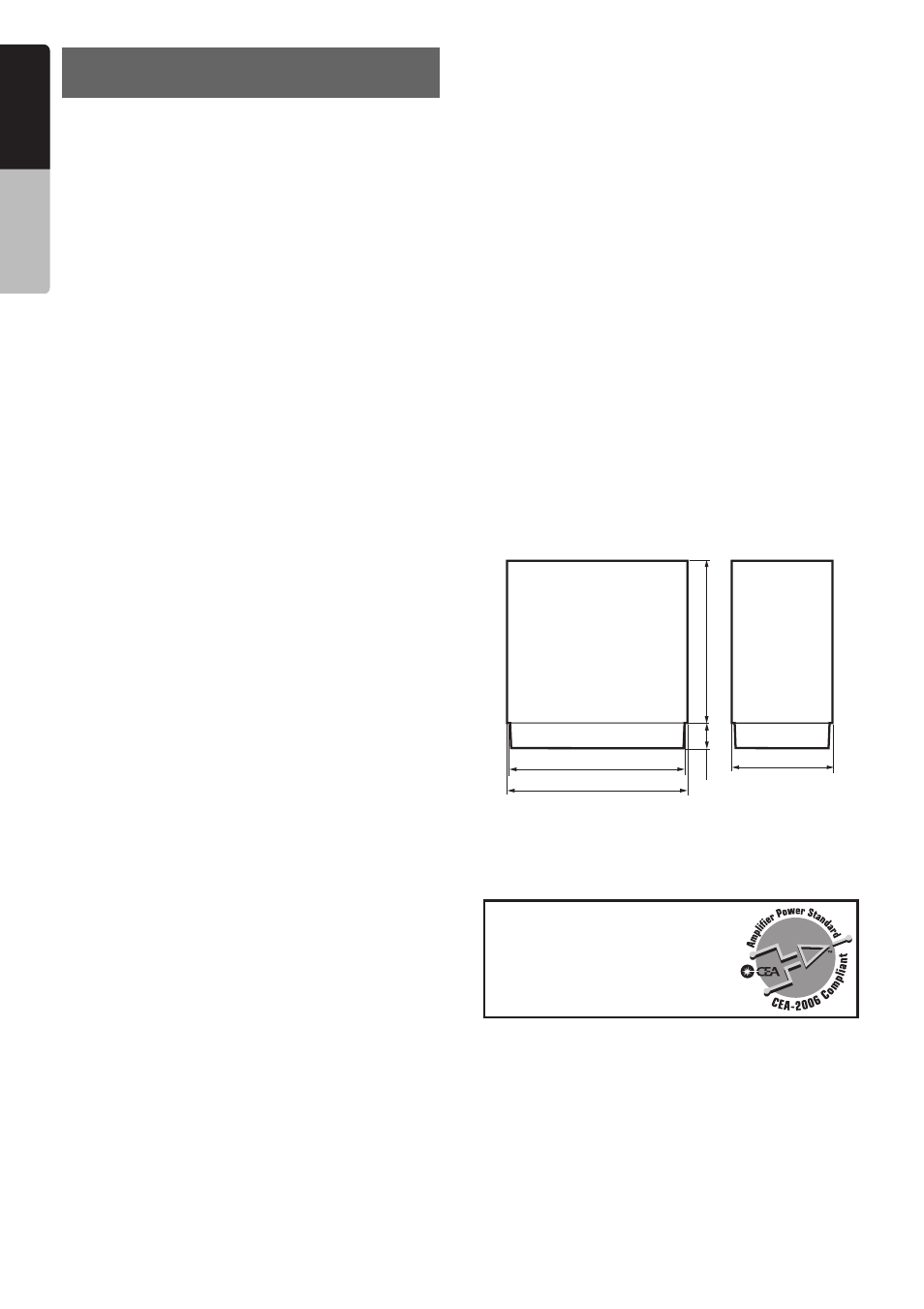

10.SPECIFICATIONS
6-3/4" (171 mm)
7" (178 mm)
2" (25mm)
6-5/16" (160mm)
3-15/16"
100 mm
Power Output:
20 W x 4 Channels RMS [4
: @
14.4 V
d 1 % THD+N]
Signal to Noise Ratio:
84 dBA (reference: 1 W into 4
:)
