SKU 99702

For technical questions, please call 1-800-444-3353.

Page 21

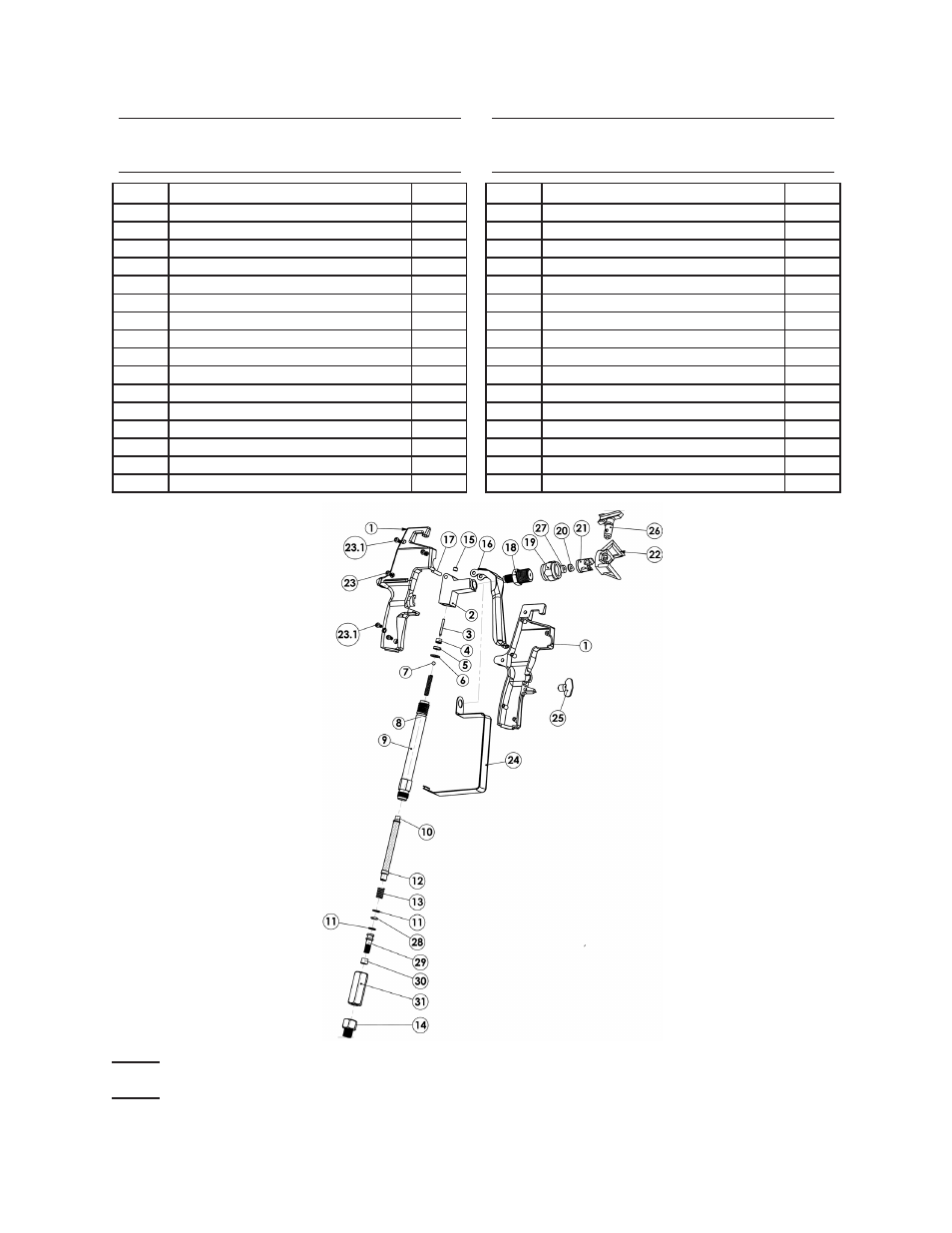

gun pArts list &

diAgrAm

part

description

Qty

1C

Housing

2

2C

Elbow

1

3C

Pin

1

4C

Seal

1

5C

Washer

1

6C

Washer

1

7C

Ball

1

8C

Spring

1

9C

Pipe

1

10C Filter Housing

1

11C Ring

2

12C Bush

1

13C Spring

1

14C Tip

1

15C Cap

1

16C Trigger

1

gun pArts list &

diAgrAm

part

description

Qty

17C Pin

1

18C Fluid Housing

1

19C Retaining Nut

1

20C Tip Seat

1

21C Tip Connector

1

22C Tip Guard

1

23C Screw M4x22

2

23.1C Screw M4x15

3

24C Handle

1

25C Trigger Lock

1

26C Tip Assembly

1

27C Tip Gasket

1

28C Ring

1

29C Plunger

1

30C Bush

1

31C Socket

1

note: When order parts from this list use the suffix “C”
note: Some parts are listed and shown for illustration purposes only, and are not avail-

able individually as replacement parts.
