Ceiling Attachment:
1. By rule, the front of the crossbar should be even with the field side (inside) edge
of the end line such that the crossbars measure 360 ft apart inside to inside.
2. The crossbar should be level and at a height of 10 ft above ground level. The
uprights should be plumb in both directions, front to back and side to side. Adjust
turnbuckle components as necessary.
3. Unistrut comes in a length of 96” long to accommodate spanning between purlins
or joist. When direct attaching underneath joist, rigid frame, girder or box truss
cut the unistrut to length of the structure width plus 6” on both sides.

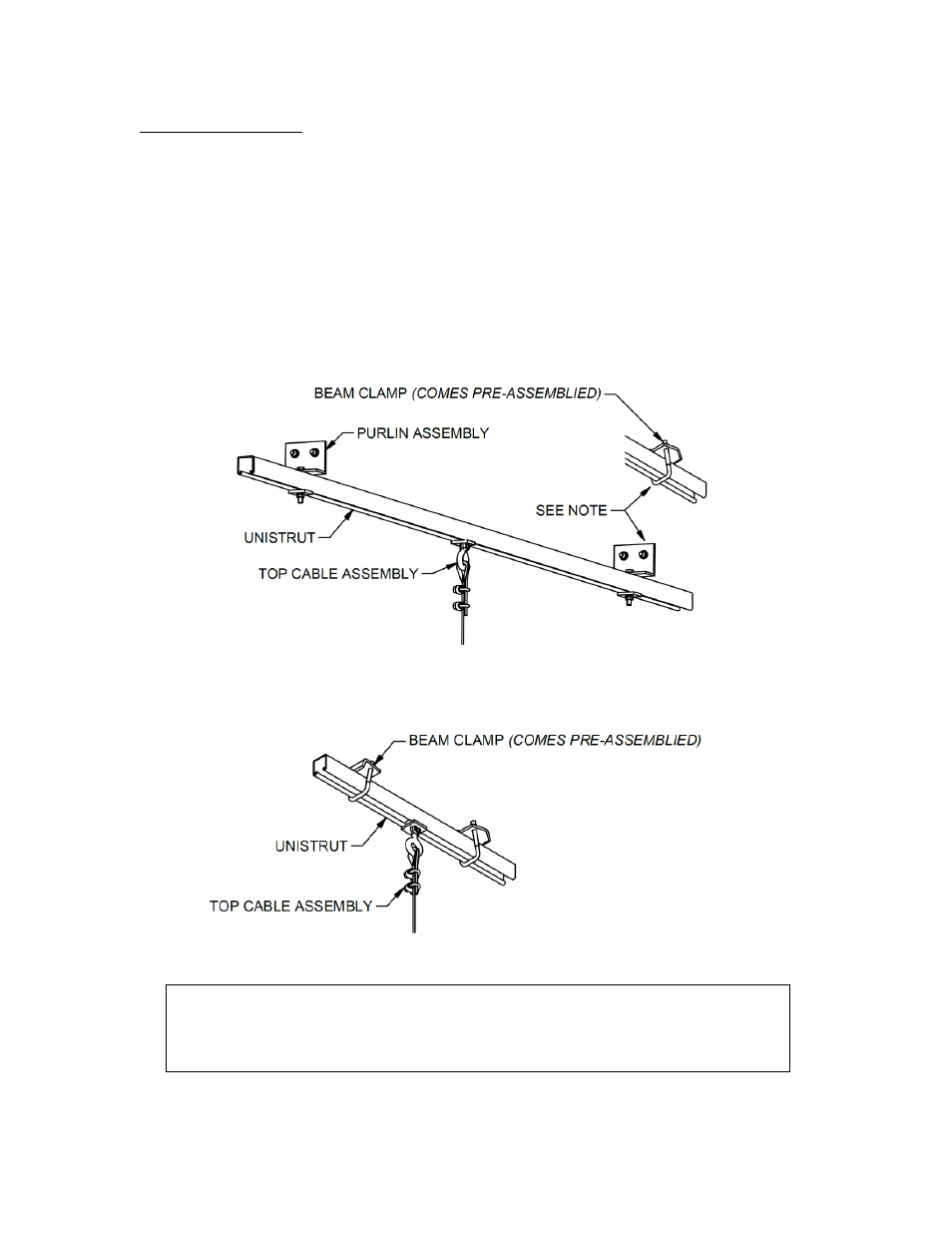

4. Assemble per Figure 1 for spanning between purlins or joist type. Assemble per
Figure 2 for direct attaching underneath joist type.
Figure 2
Direct Attachment
NOTE:
* Typical I-beam / Purlin attachment shown.
* Specific attachment type and mounting hardware depends on building type.
Figure 1
Spanning Attachment
