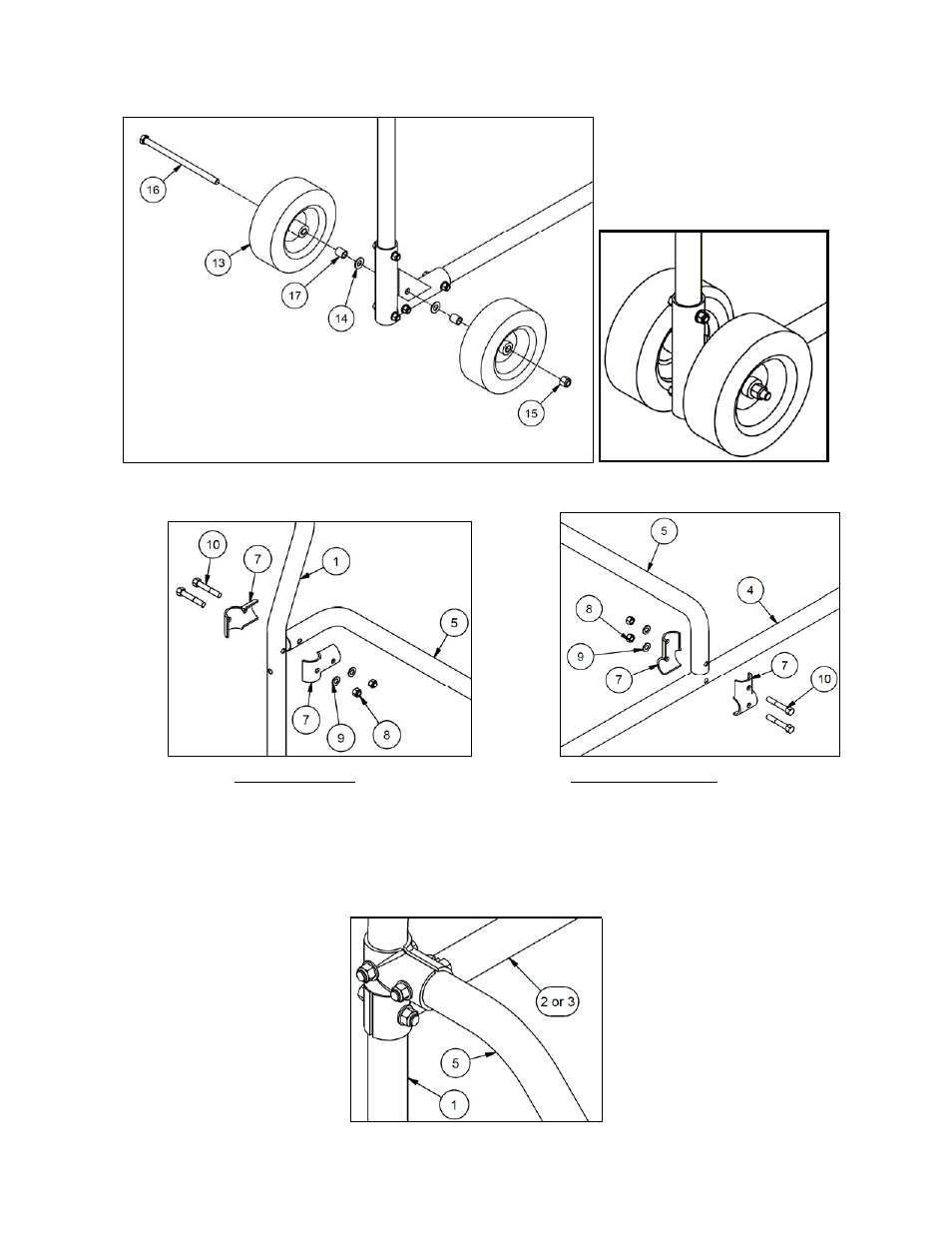

5. Assemble wheels onto corner brackets as shown below. Make sure wheels turn freely and do not rub
against bolts.
6. Assemble backstays (support braces) onto frame halves using 1.90 pipe clamps. Assembly details are
shown below, tighten nuts fully.
Top of backstay Bottom of backstay
7. Assemble 1.90 pipe clamps onto uprights where crossbar(s) will be located. Leave these nuts somewhat
loose for now.
8. Rotate side frames so backstay becomes vertical, and assemble crossbar(s) into pipe clamps on uprights.
Assembly details are shown below, tighten nuts fully.
