GBA Series Breakaway Basketball Goal Instructions
- 5 of 9-
JSL-Inst045
www.jayprosports.com
5 Assembly/Installation
5.1 Install rim

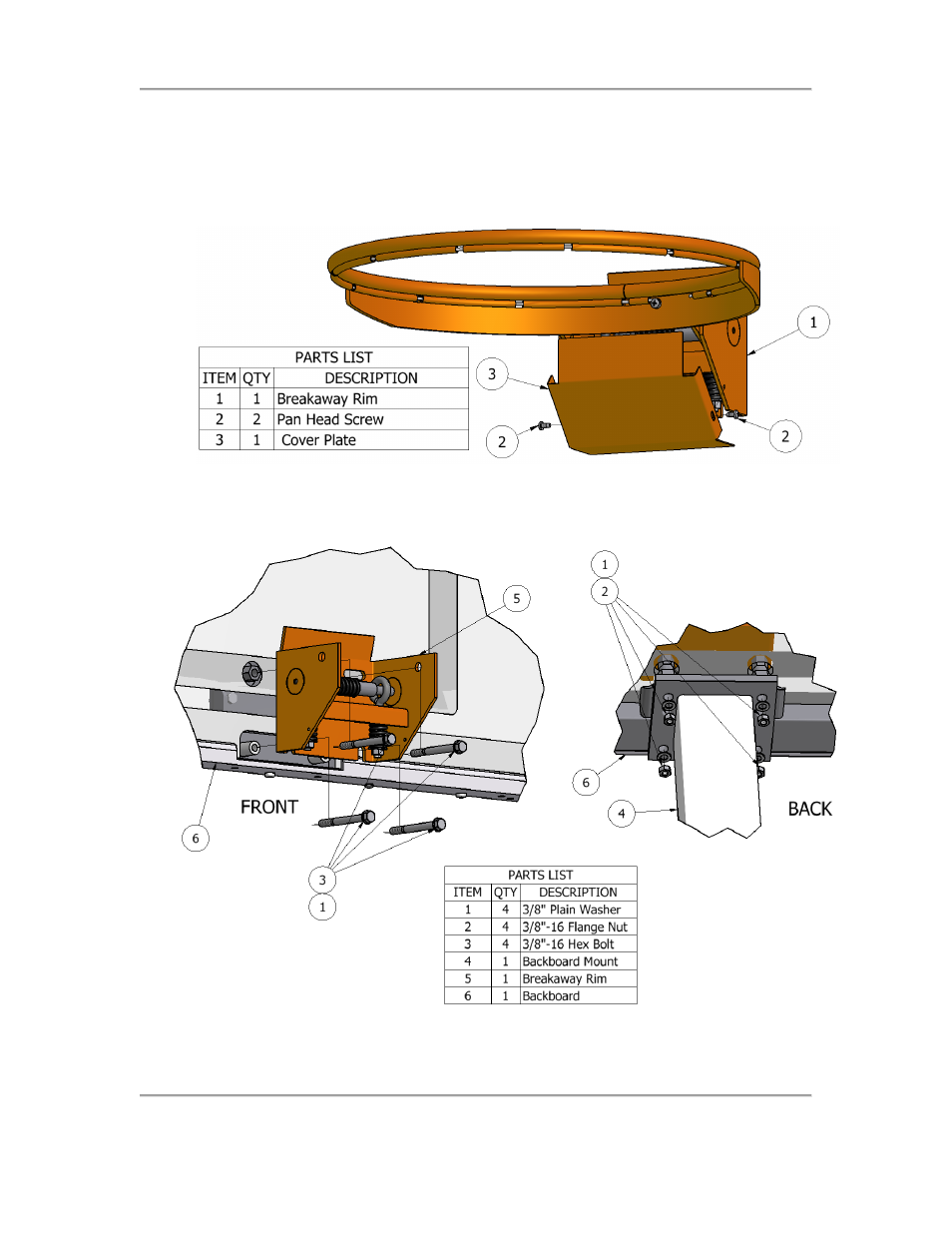

1. Remove cover plate from rim (Figure 5-1).
Figure 5-1: Cover plate removal/installation.
2. Attach rim to backboard as shown in Figure 5-2.
Figure 5-2: Attach rim to backboard.
3. Reinstall cover plate (Figure 5-1).
