GBA Series Breakaway Basketball Goal Instructions
- 2 of 9-
JSL-Inst045
www.jayprosports.com
1 Safety

WARNING: Springs under extreme tension. Do not tamper with springs
other than to adjust breakaway force as described in section 6.
 IMPORTANT: Only use white lithium grease when lubricating breakaway
mechanism (as described in section 7.1).
2 Specifications
N
ET
A TTACHMENT
S TYLE
I
NITIAL
B REAKAWAY
FORCE
B REAKAWAY F ORCE
R ANGE
M
OUNTING
B
OLT
P ATTERN
(F IGURE 2-1) W EIGHT
F
ITS
B ACKBOARD
S IZE
GBA-542 Pigtail
180 lbs
(82 kg)
135 lbs (61 kg)
to
245lbs(111kg)
4”(10.2cm)
x
4”(10.2cm)
27 lbs
(12kg)
42”
GBA-548 Pigtail
180 lbs
(82 kg)
135 lbs (61 kg)
to
245 lbs (111 kg)
4”(10.2cm)
x
5”(12.7cm)
27 lbs
(12 kg)
48”
GBA-642 Hideaway
180 lbs
(82 kg)
135 lbs (61 kg)
to
245 lbs (111 kg))
4”(10.2cm)
x
4”(10.2cm)
27 lbs
(12 kg)
42”
GBA-648 Hideaway
180 lbs
(82 kg)
135 lbs (61 kg)
to
245 lbs (111 kg)
4”(10.2cm)
x
5”(12.7cm)
27 lbs
(12 kg)
48”

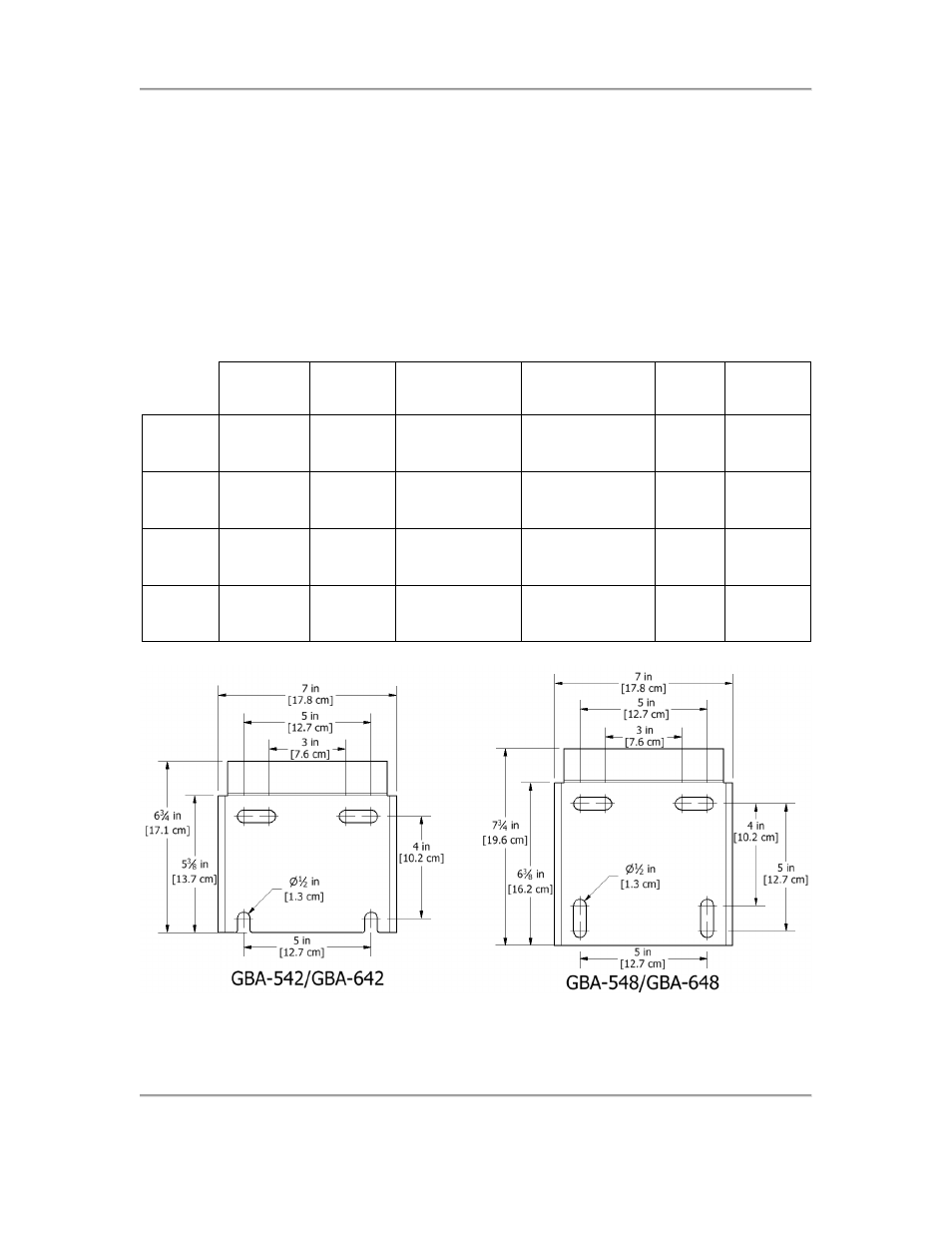

Figure 2-1: Mounting bolt patterns.
