LADDER SETUP (continued)

A

B

2.1

3

A

A

A

B

A

B

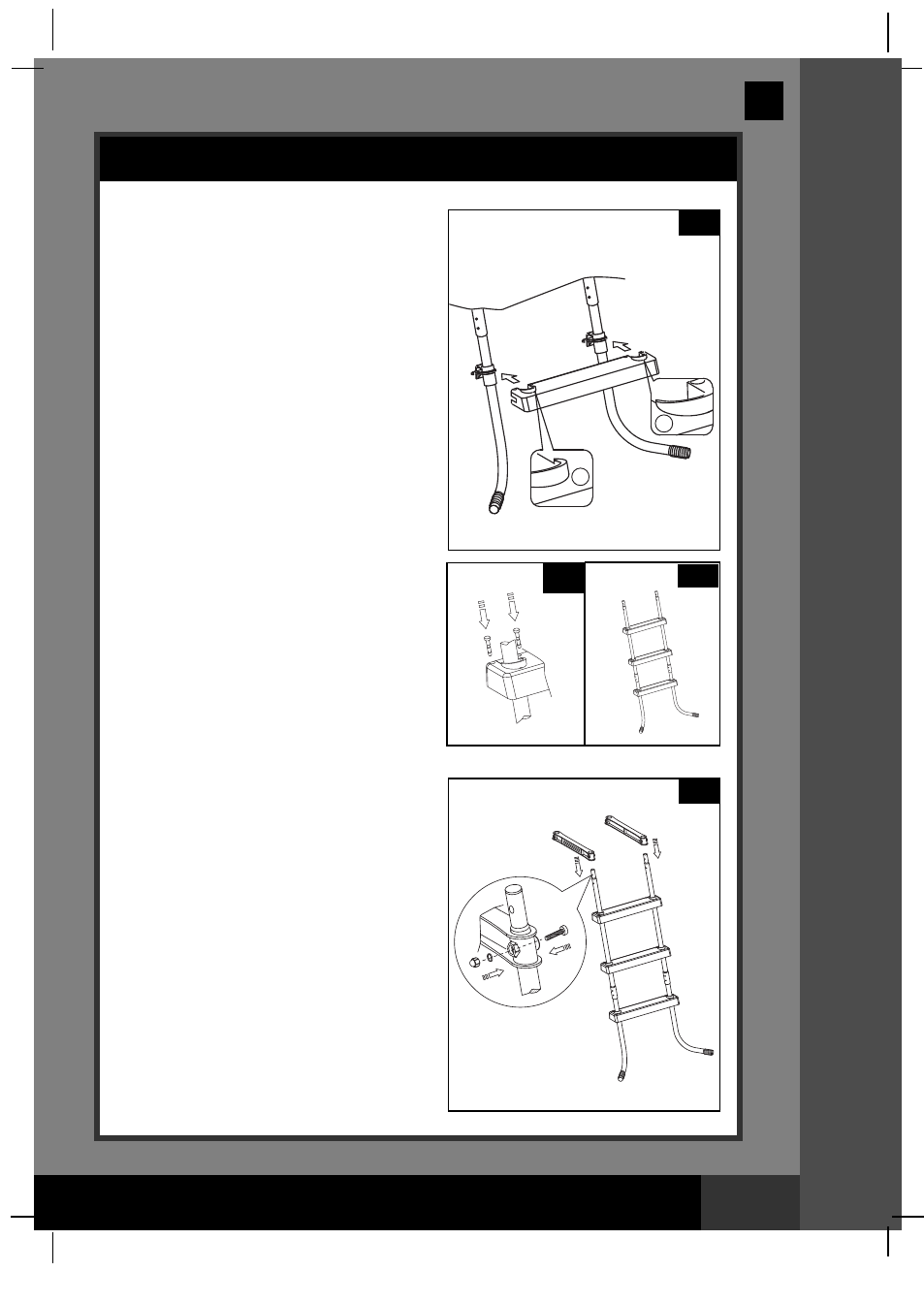

3. STEP INSTALLATION (refer to

figures 2.1 through 2.3):
Take one complete “A” leg and one
complete “B” leg. The steps (6) attach
to the mounting fixtures on each leg.
Note the markings “A” and “B” next to
each attachment slot on each step.
“A” side of the step attaches to “A” leg
and “B” side of the step attaches to
“B” leg - see figure 2.1.
Slide the step over the mounting
fixture on the leg and push it all the
way until it is completely flush with
the mounting fixture.
Any protrusion of the mounting
fixture beyond the step indicates
the step is upside-down or
otherwise wrongly positioned.
After ensuring the step is placed
correctly, push the mounting pins (5)
into the holes on the step, securing
the step to the mounting fixture
– see figure 2.2 (four pins for each
step).
Repeat the process with the
remaining steps and with the
remaining pair of legs.
When finished, you will have two
complete sides of the ladder. Each
side should resemble figure 2.3.

4. TOP BRACE INSTALLATION – ONE

SIDE AT A TIME (refer to figure 3):
Identify hole “A” and hole “B” on the
top braces (2), marked accordingly at
each end. Slide the top braces over

the legs, making sure hole “A” of

one brace slides over leg “A” and
hole “B” of the other brace over
leg “B”. The small holes on the side of
braces should align with the lower
holes on the legs.
Fasten each brace to the legs using

the longer fasteners/screws (4).

Do not yet attach the other side of the
ladder to the top braces – this
assembly step will follow later.

A

2.2

2.3

A

B
