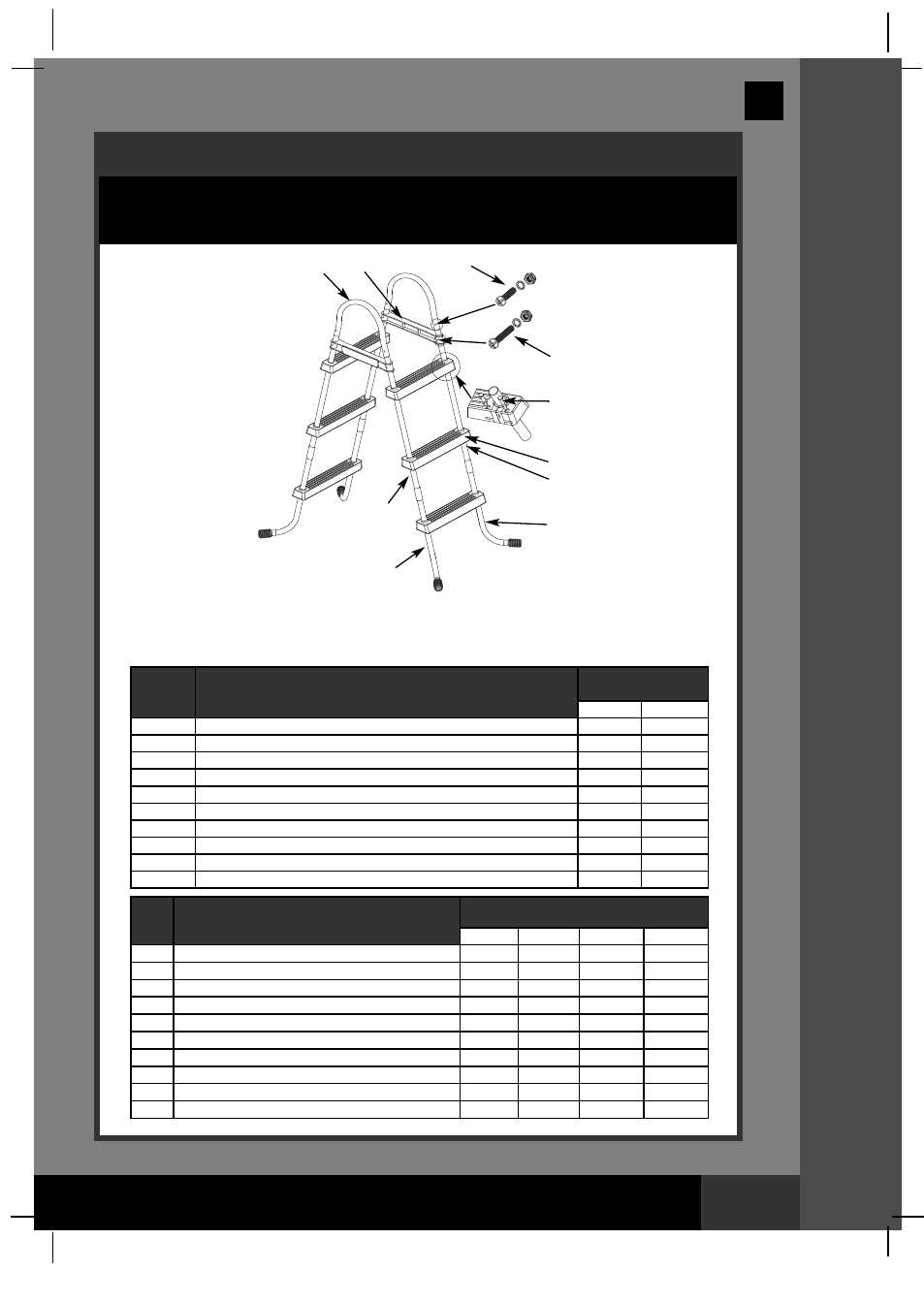

PARTS REFERENCE
Before assembling your product, please take a few minutes to check the contents
and become familiar with all the parts.
1
3
4
7
9
10
6
8
2
5
36in (91 cm) & 42in (107 cm) models
REF. NO
.
DESCRIPTION
LADDER SIZE
& QUANTITIES
36”
42”
1
U-SHAPED TOP RAIL
2
2
2
TOP BRACE
2
2
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
5
5
4
LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)
5
5
5
STEP MOUNTING PIN (WITH 2 EXTRA)
26
26
6
STEP
6
6
7
UPPER SIDE LEG (“A” ENGRAVED ON TOP CAP)
2
2
8
UPPER SIDE LEG (“B” ENGRAVED ON TOP CAP)
2
2
9
LOWER J-SHAPED SIDE LEG (“A” ENGRAVED ON TOP CAP)
2
2
10
LOWER J-SHAPED SIDE LEG (“B” ENGRAVED ON TOP CAP)
2
2
REF.
NO.
DESCRIPTION
SPARE PART NO.
#58972
#11462
#58973
#11395
1
U-SHAPED TOP RAIL
11128
11530
11164
11396
2
TOP BRACE
11094
11397
11094
11397
3
SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)
10228
10228
10228
10228
4
LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)
10227
10227
10227
10227
5
STEP MOUNTING PIN (WITH 2 EXTRA)
10349
10913
10349
10913
6
STEP
10348
10914
10348
10914
7
UPPER SIDE LEG (“A” ENGRAVED ON TOP CAP)
11091A 11531A
11162A 11398A
8
UPPER SIDE LEG (“B” ENGRAVED ON TOP CAP)
11091B 11531B
11162B
11398B
9
LOWER J-SHAPED SIDE LEG (“A” ENGRAVED ON TOP CAP)
10895A 11532A
11163A 11399A
10
LOWER J-SHAPED SIDE LEG (“B” ENGRAVED ON TOP CAP)
10895B 11532B
11163B
11399B
NOTE: Drawings for illustration purpose only. Actual product may vary. Not
to scale.
