91PO

SAVE THESE INSTRUCTIONS

Page 6

(91PO) 36", 42" & 48" 2-SECTIONS POOL LADDER ENGLISH 7.5” X 10.3” PANTONE 295U 10/13/2011

English

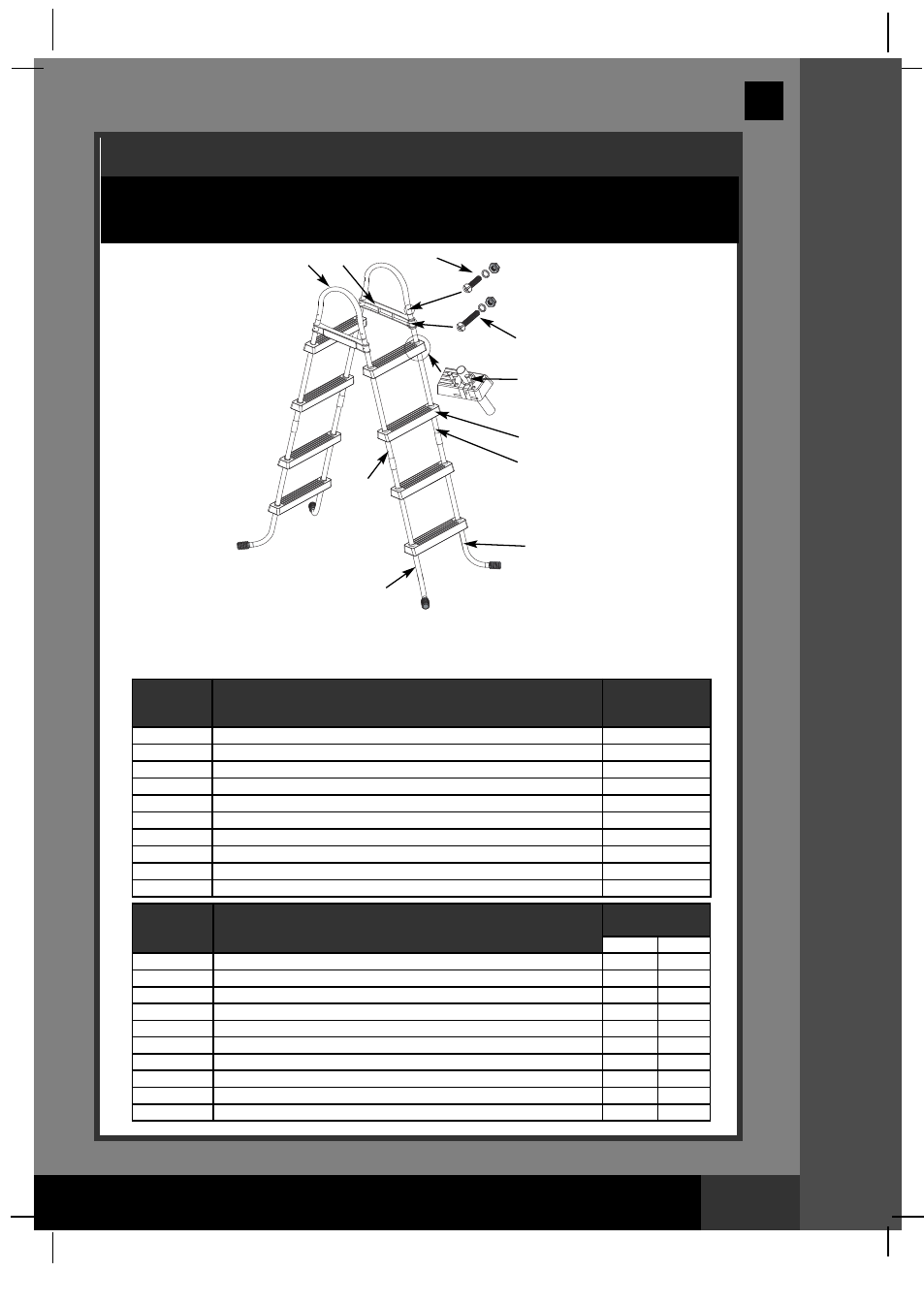

PARTS REFERENCE (continued)

Before assembling your product, please take a few minutes to check the contents

and become familiar with all the parts.

PP

AA

RR

TT

SS

RR

EE

FF

EE

RR

EE

NN

CC

EE

1

3

4

7

9

10

6

8

2

5

48in (122 cm) model

NOTE: Drawings for illustration purpose only. Actual product may vary. Not
to scale.

REF. NO.

DESCRIPTION

QUANTITY

1

U-SHAPED TOP RAIL

2

2

TOP BRACE

2

3

SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)

5

4

LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)

5

5

STEP MOUNTING PIN (WITH 2 EXTRA)

34

6

STEP

8

7

UPPER SIDE LEG (“A” ENGRAVED ON TOP CAP)

2

8

UPPER SIDE LEG (“B” ENGRAVED ON TOP CAP)

2

9

LOWER J-SHAPED SIDE LEG (“A” ENGRAVED ON TOP CAP)

2

10

LOWER J-SHAPED SIDE LEG (“B” ENGRAVED ON TOP CAP)

2

REF. NO.

DESCRIPTION

SPARE PART NO.

#58974 #10903

1

U-SHAPED TOP RAIL

11167

11171

2

TOP BRACE

11168

11172

3

SHORT FASTENER FOR U-SHAPED TOP RAIL (WITH 1 EXTRA)

10810

10810

4

LONG FASTENER FOR TOP BRACE (WITH 1 EXTRA)

10227

10227

5

STEP MOUNTING PIN (WITH 2 EXTRA)

10349

10913

6

STEP

10348

10914

7

UPPER SIDE LEG (“A” ENGRAVED ON TOP CAP)

11165A 11169A

8

UPPER SIDE LEG (“B” ENGRAVED ON TOP CAP)

11165B 11169B

9

LOWER J-SHAPED SIDE LEG (“A” ENGRAVED ON TOP CAP)

11166A 11170A

10

LOWER J-SHAPED SIDE LEG (“B” ENGRAVED ON TOP CAP)

11166B 11170B
