SAVE THESE INSTRUCTIONS

Page 9

(161) MODEL SF15110 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U

12/02/2010

English

SS

EE

TT

UU

PP

II

NN

SS

TT

RR

UU

CC

TT

IIOO

NN

SS

The strainer grid prevents large objects from jamming and/or damaging the

filter pump. If your pool has an inflatable top ring, install the strainer, nozzle

and plunger valve before inflating the pool liner top ring. The part numbers

here onward refer to the parts depicted in the Parts List section of this

manual. To install, do the following:

1. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (26) (see drawing 1).

Be careful not to lose the step rubber

washer (23). Place the plunger valve on

the ground in a safe place.

2. In a counter-clockwise motion unscrew the

strainer nut (24) from the threaded

connector (26). Leave the flat washer (25)

on the connector (26).

3. Install the strainer and plunger valve at the

lower position of pool outlet (marked "+").

From the inside of the pool liner insert the

connector (26) into one of the pre-cut holes

with the washer remaining on the

connector to be placed against the inside

of the liner wall.

4. Before assembly, lubricate the threads with

a petroleum jelly. With the flat side of the

strainer nut (24) facing the outside wall of

the liner in a clockwise motion screw the

strainer nut (24) back onto the threaded

connector (26) (see drawing 2).

5. Finger tighten the strainer nut (24) onto the

threaded connector (26).

6. Grasp the plunger valve assembly. Make

sure the step washer (23) is in place.

7. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (26) (see drawing 3).

8. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the handle

in a clockwise direction until the plastic

protruding notch anchors in the "0/1"

position. This will prevent water from

flowing out during filling (see

drawings 4.1 & 4.2).

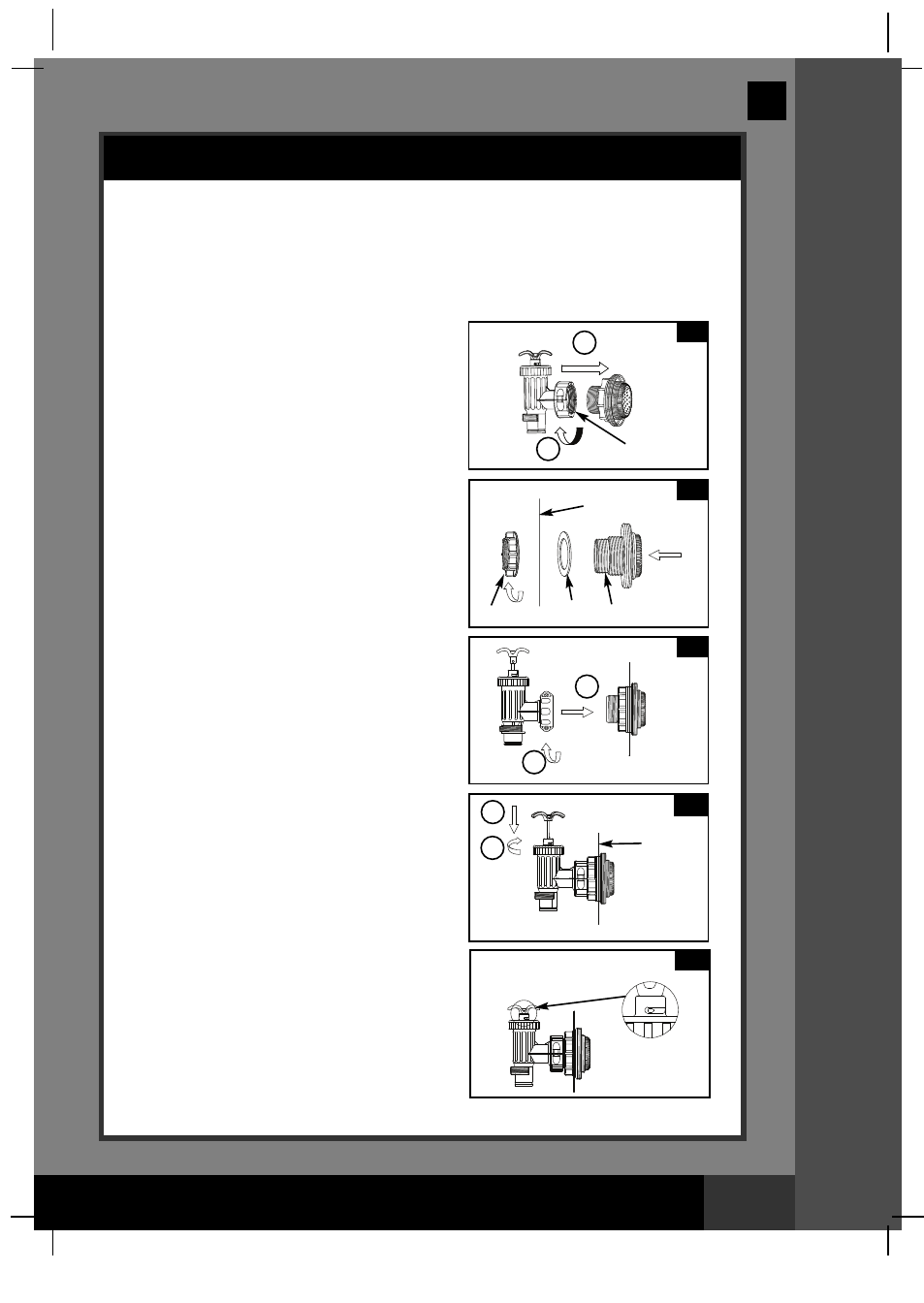

POOL OUTLET - STRAINER & PLUNGER VALVE SETUP

1

2

3

4.1

4.2

25

26

23

INSIDE

LINER WALL

INSIDE

LINER WALL

24

2

1

1

2

1

2
