SAVE THESE INSTRUCTIONS

Page 10

(161) MODEL SF15110 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U

12/02/2010

English

IIOO

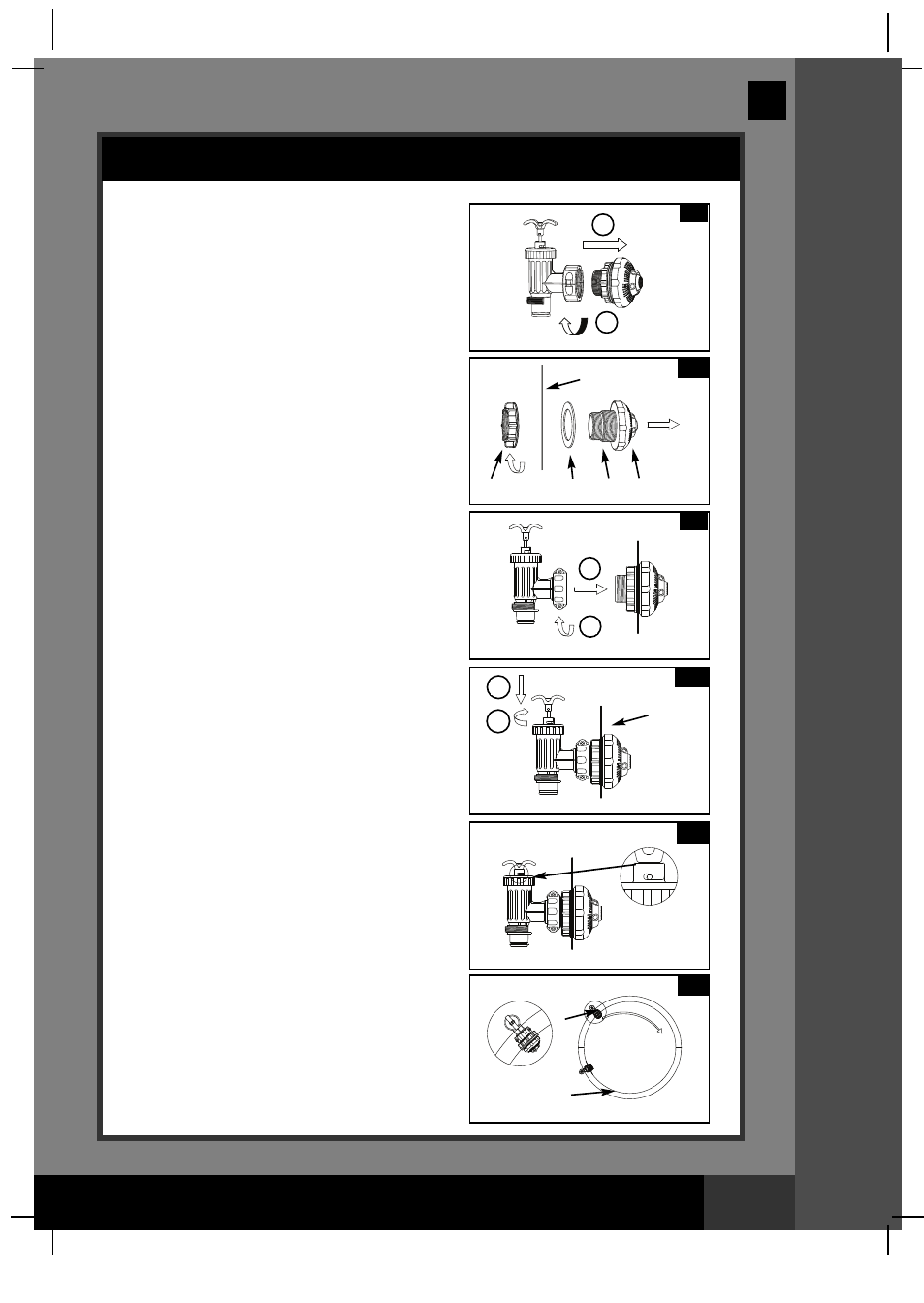

POOL INLET - NOZZLE & PLUNGER VALVE SETUP

1. In a counter-clockwise motion unscrew

plunger valve union from the threaded

strainer connector (26) (see drawing 5).

Be careful not to lose the step rubber

washer (23). Place the plunger valve on

the ground in a safe place.

2. In a counter-clockwise motion unscrew the

strainer nut (24) from the threaded

connector (26). Leave the flat washer (25)

on the connector (26).

3. Install the nozzle and plunger valve at the

upper position of pool inlet. From the inside

of the pool liner insert the connector (26)

into one of the pre-cut holes with the

washer remaining on the connector to be

placed against the inside of the liner wall.

4. Before assembly, lubricate the threads with

a petroleum jelly. With the flat side of the

strainer nut (24) facing the outside wall of

the liner in a clockwise motion screw the

strainer nut (24) back onto the threaded

connector (26) (see drawing 6).

5. Finger tighten the adjustable pool inlet

nozzle (27) and the strainer nut (24) onto

the threaded connector (26).

6. Grasp the plunger valve assembly. Make

sure the step washer (23) is in place.

7. In a clockwise motion screw the plunger

valve union back onto the threaded

connector (26) (see drawing 7).

8. Examine the plunger valve to see if the

handle is pushed fully down to the "0/1"

position. If not, then grasp the handle at

the top and push down turning the handle

in a clockwise direction until the plastic

protruding notch anchors in the "0/1"

position. This will prevent water from

flowing out during filling (see

drawings 8.1 & 8.2).

9. Adjust the direction of nozzle head pointing

away from the pool outlet for a better

circulation result (see drawing 9).

10. The pool liner is now ready to fill with

water. Consult the above-ground-pool

ownerʼs manual for filling instructions.

8.1

8.2

INSIDE

LINER

WALL

POOL

26 27

INSIDE

LINER WALL

WATER

FLOW
