SAVE THESE INSTRUCTIONS
Page 12
(161) MODEL SF15110 SAND FILTER PUMP ENGLISH 7.5” X 10.3” PANTONE 295U 12/02/2010
English

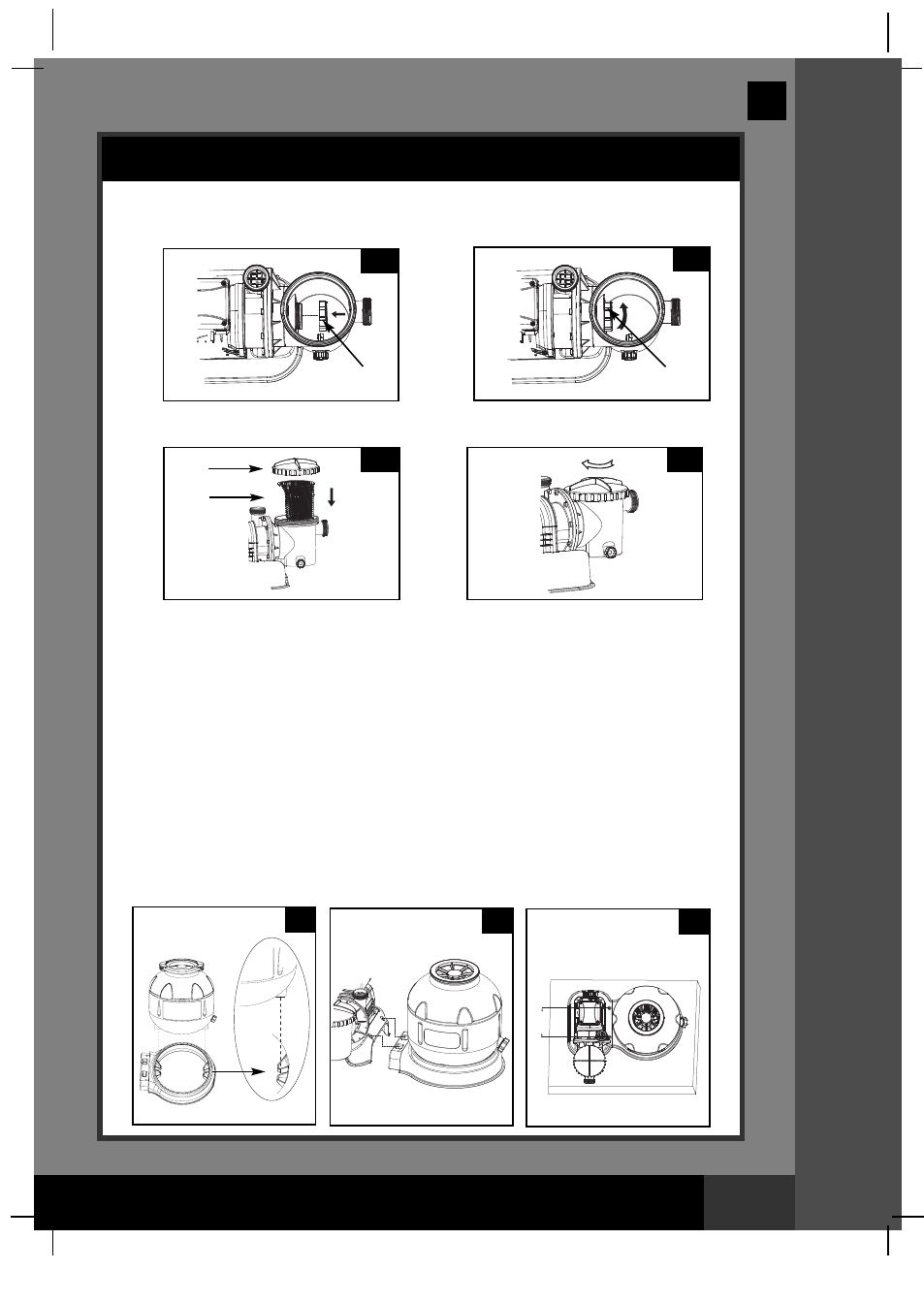

4. In a clockwise motion screw filter housing nut (17) onto the motor water inlet
(See drawings 12.1 & 12.2).
5. Replace the basket (16) and leaf trap cover (14) back to the pre-filter housing
(See drawings 13.1 & 13.2).
SETUP INSTRUCTIONS (continued)
SS
EE
TT
UU
PP
II
NN
SS
TT
RR
UU
CC
TT
IIOO
NN
SS
Sand tank installation:
1. Place the tank support base on the selected location.
2. Place the tank on the tank support base (See drawing 14.1).
3. Connect the motor pre-filtering assembly unit to the tank support base (See
drawing 14.2). NOTE: Ensure the pre-filter housing water inlet hose connection
is facing towards the pool.
IMPORTANT: Some countries, especially in the European community,
require the product to be secured to the ground or to a base in a
permanent upright position. Check your local authorities to determine if
there is a regulation in your area regarding above-the-ground swimming
pool filter-pumps. If yes, then the product can be mounted to a platform
using the two holes located in the base. See drawing 14.3.
The product can be mounted on a cement base or onto a wooden
platform to prevent accidental falling over.
• The mounting holes are 6.4 mm in diameter and spaced 160 mm
apart.
• Use two bolts and lock nuts with a maximum of 6.4 mm in diameter.
12.2 12.1
13.1 13.2
14.1 14.2
m
m
16
0
14.3
17 17
14
16
