POOL ENCLOSURE SETUP (continued)

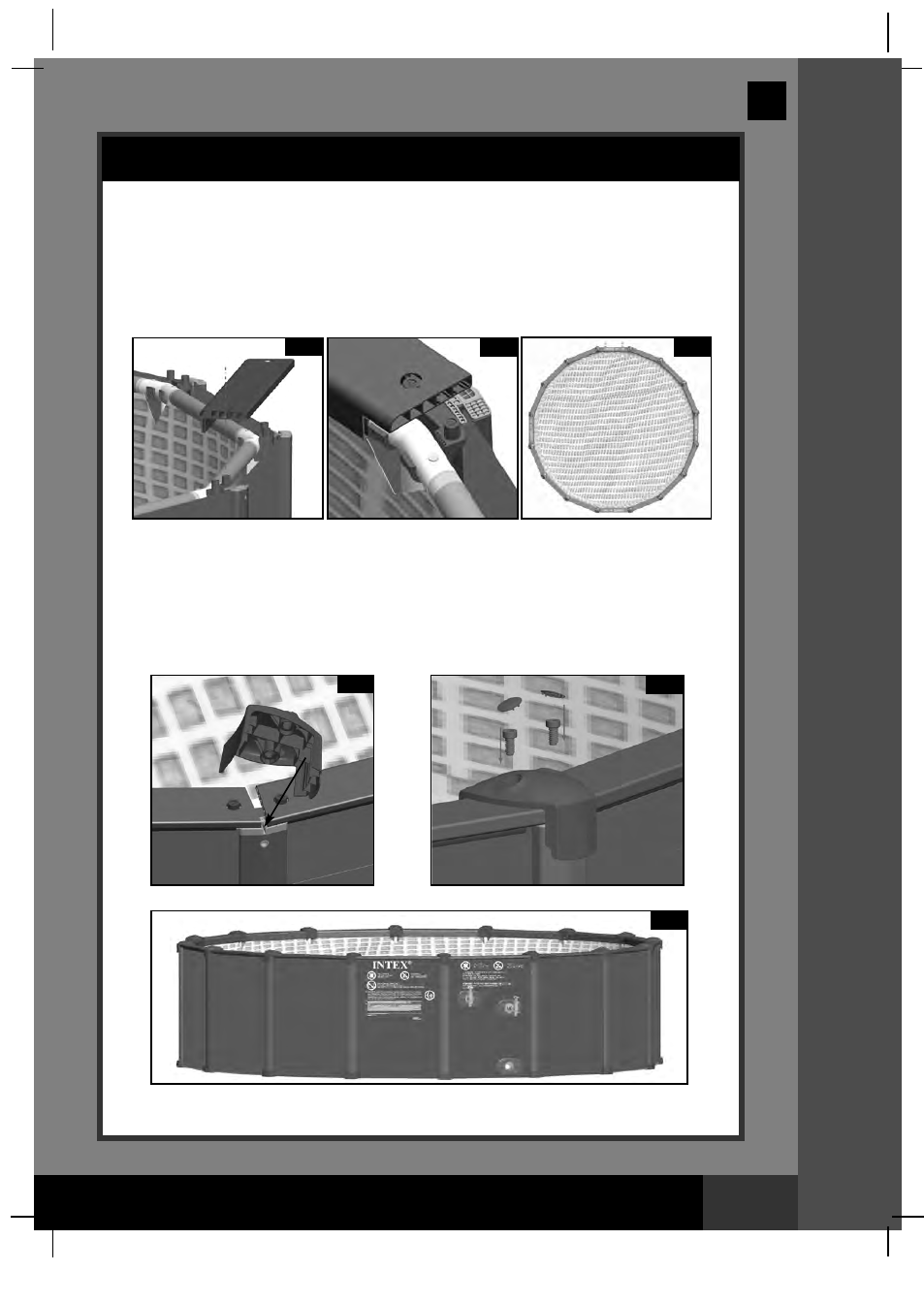

5. Top Board Installation
Attach the top board (15) on the top of the side panel, with the holes at its two ends
aligning with the nuts on the top clamps (16). Make sure the groove underneath the top
board fits firmly onto the tongue of the top board (15). Repeat this procedure until all the
top boards are fixed to the top clamps and side boards.
NOTE: There are four pieces of
top board which are printed with warnings. Install those four top boards three pieces apart
from each other (see drawings 14.1, 14.2 & 14.3).
6. Top Clamp Cover Installation
Install the top clamp cover (14) where the two top boards meet. Insert the ridge of top
clamp cover into the slot on the top end of the support post. Align the top holes on top
clamp cover with the nuts of the top clamp. Insert and screw bolt (13) to each of the
threaded holes by using the wrench (26) provided, and then cover with the waterproof
caps (12). Repeat this procedure until all the top clamp covers are fixed to the top clamps
and support posts (see drawings 15.1, 15.2 & 15.3).
14.1 14.2 14.3
15.2
15.3
15.1
