POOL SETUP (continued)

You may have purchased this pool with the Intex Krystal Clear™ filter pump.
The pump has its own separate set of installation instructions. First
assemble your pool unit and then set up the filter pump.

Estimated assembly time 120 minutes. (Note the assembly time is only approximate
and individual assembly experience may vary.)

1. Liner preparation
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be

used to store the pool during the winter months or when not in use.

• Take out the ground cloth (11) and spread

it over the cleared area. Then take out the
liner (8) and spread it out over the ground
cloth, with the drain valve directed towards
the draining area. Place the drain valve
away from the house. Allow the sun to
warm up the liner before inserting the
beams (7) into the sleeve openings.

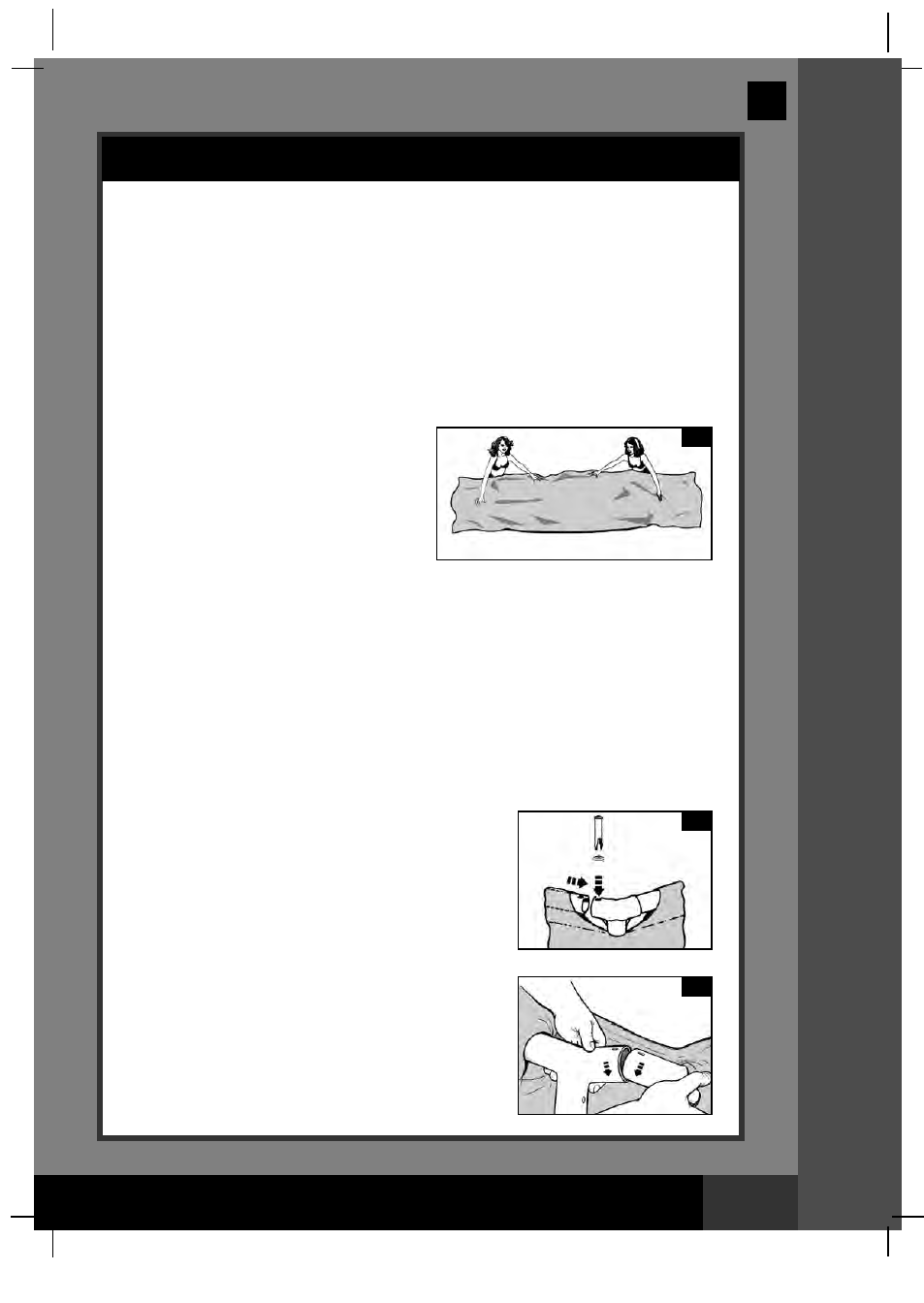

IMPORTANT: Always set up the pool
unit with at least 2 persons. Do not drag the liner across the ground as this can
cause liner damage and pool leakage (see drawing 4).

• During the setup of the pool liner, point the hose connections or openings in the

direction of the electric power source. The outer edge of the pool should be within reach
of the pump’s electrical connection.

2. Frame assembly
• The frame pool’s legs (5) and beams (7) fall into two groups. The larger diameters are

the horizontal beams that are slid (pushed) into the sleeve openings at the top of the
liner. The smaller diameters are the vertical legs. Both these legs and beams fit into the
T-joints (3).

• Starting at any location, but always working in the same

direction, push the horizontal beam into the sleeve. Once
the beam is centered take one of the T- joints and using
the connection pin (1), attach the joint to one end of the
beam by inserting the pin through the seal (2) and in the
pre-drilled holes. Repeat this procedure in a circular
fashion until all the beams and joints have been
connected (see drawing 5.1).

The last joint connection may be difficult to complete.
You can do it though, if you first simultaneously
raisethe last joint and beam about 2 inches (5 cm).
Now, insert the beam into the joint while lowering the
pieces into position. The beam will easily slide into the
joint (see drawing 5.2). Ensure that the last joint is
fully connected before proceeding to connecting the
legs.

5.1

5.2
