POOL SETUP (continued)
You may have purchased this pool with the Intex Krystal Clear™ filter pump. The pump has its own
separate set of installation instructions. First assemble your pool unit and then set up the filter pump.
Estimated assembly time 45-60 min. (Note the assembly time is only approximate and individual assembly
experience may vary.)

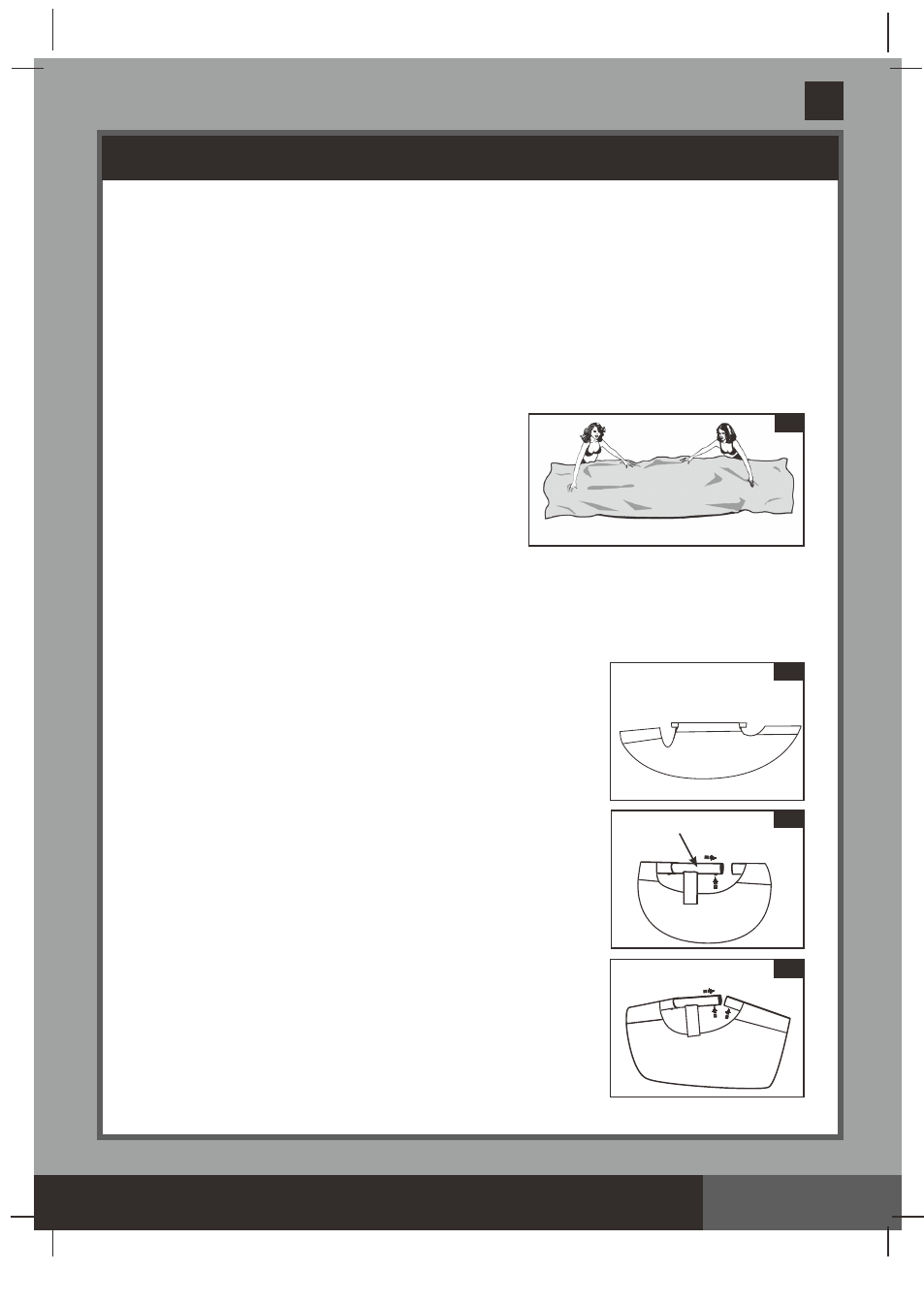

1. Liner preparation
• Find a flat, level location that is free and clear of stones, branches or other sharp objects that may
puncture the pool liner or cause injury.
• Open the carton containing the liner, joints, legs, etc., very carefully as this carton can be used to store
the pool during the winter months or when not in use.
• Take out the ground cloth
(7) (optional) and spread it over
the cleared area. Then, take out the liner (5) and spread it
out over the ground cloth, with the drain valve directed
towards the draining area. Place the drain valve away from
the house. Allow the sun to warm up the liner before
inserting the beams (4) into the sleeve openings.
IMPORTANT: Always set up the pool unit with at least 2
persons. Do not drag the liner across the ground as
this can cause liner damage and pool leakage (see
drawing 1).
• During the setup of this pool liner, point the hose connections or openings in the direction of the electric
power source. The outer edge of the pool should be within reach of the pump’s electrical connection.
2. Frame assembly
• The frame pool’s legs (2) and beams (4) fall into two groups. The smaller
diameters are the vertical legs. Both these legs and beams fit into the
T-joints (1).
• Starting at any location, but always working in the same direction, push
the horizontal beam into the sleeve (see drawing 2.1). Once the beam is
centered take one of the T- joints (1), snap the joint to one end of the
beam by aligning the hole and the spring-loaded pin. Repeat this
procedure in a circular fashion until all the beams and joints have been
connected (see drawing 2.2).
The last joint connection may be difficult to complete, but can be
easily done by simultaneously raising this last joint and beam more
than 2 inches (5 cm), and connect the beam to the joint while
lowering these pieces to their normal position. The joint will slide
into the beam (see drawing 2.3). Make sure the last joint is fully
assembled before proceeding to assembling the legs.
