Chapter 4 Troubleshooting the Installation
Problem Solving with Subsystems
4-22
Cisco 12006 and Cisco 12406 Router Installation and Configuration Guide
OL-11497-03
LEDs that normally should be on:
• One MBUS status LED labeled ENABLED
• Two CSC status LEDs labeled ENABLED
• Three SFC status LEDs labeled ENABLED
RP Alphanumeric LED Displays

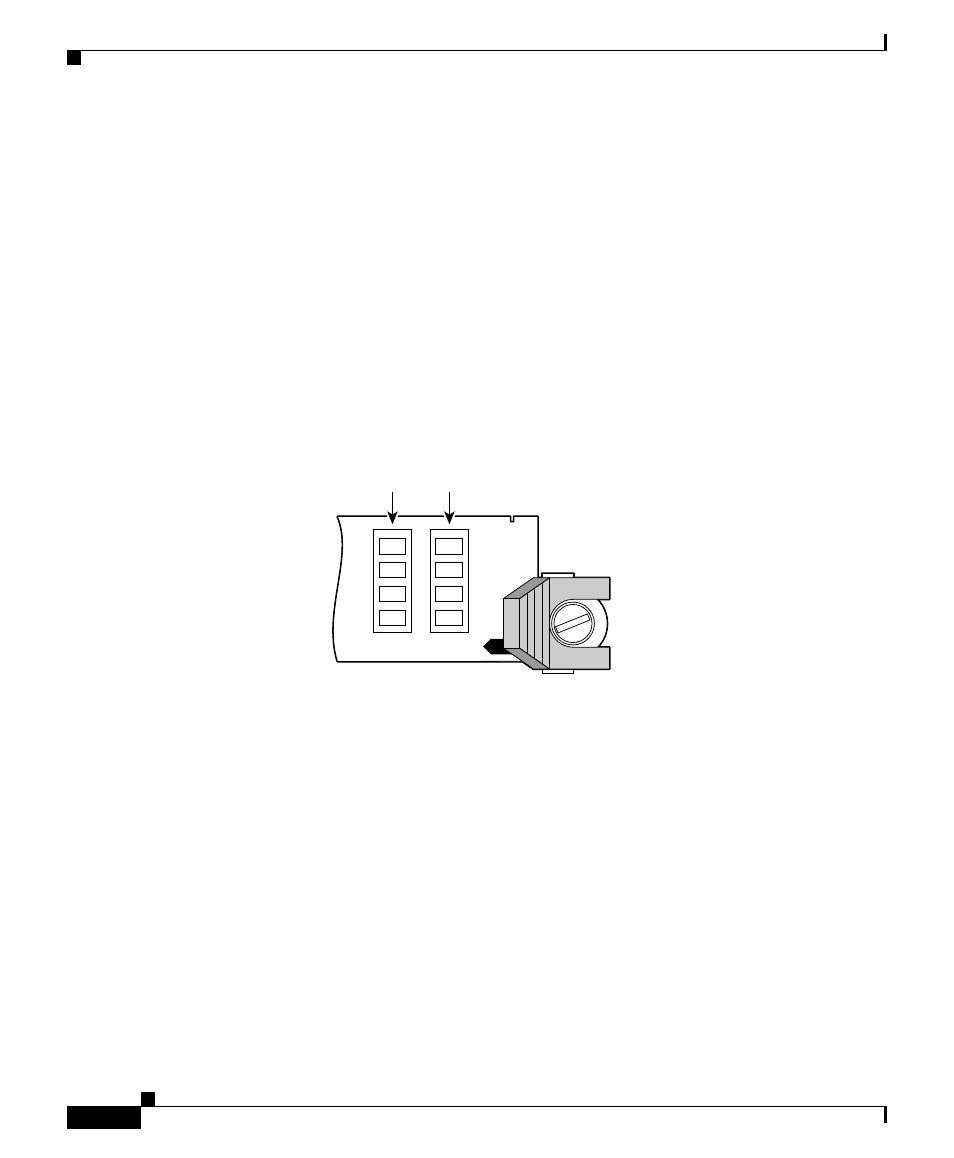

Figure 4-5 shows the location of the alphanumeric LEDs on the RP faceplate.
Figure 4-5 RP Alphanumeric LED Displays (Partial Faceplate View)
When the router is powered on, the four-character alphanumeric displays on the
RP indicate the following:
• Top display—Indicates which RP software component is running.
• Bottom display—Indicates the current phase of the boot process.
Status messages are displayed as the boot process continues. (See Table 4-8 on
page 4-30 .)
Right alphanumeric
LED display (four digits) Left alphanumeric
LED display (four digits)
