7
ASSEMBLY GUIDE
GRILL FINAL Assembly
Part Qty.
C1 – Side Shelf, RH 1
C2 – Side Shelf, LH 1
C3 – Trough 1
C4 – Cooking Grate 1
C6 – Cooler Bags/Coolers 2

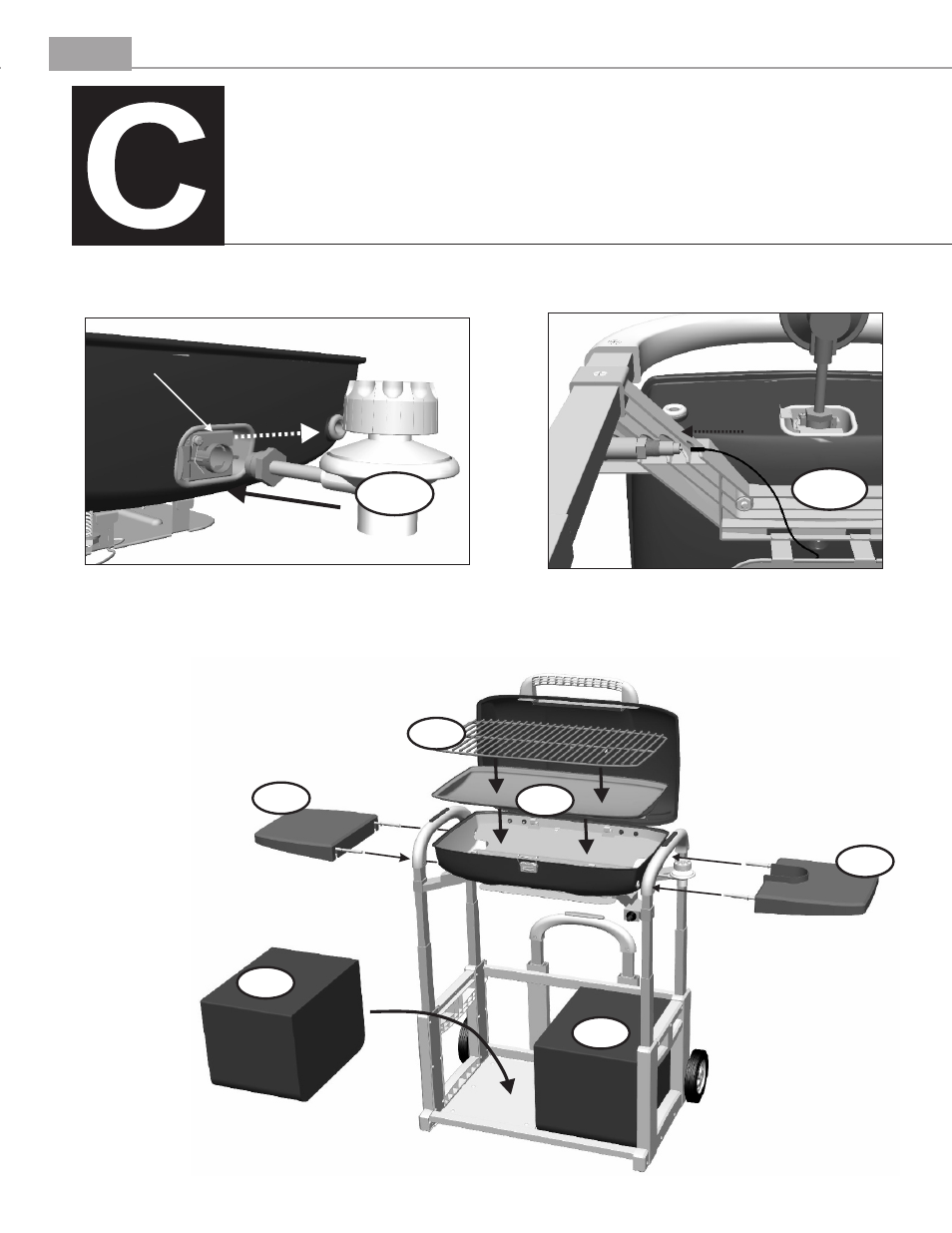

Step 1
- Install the Regulator Control Valve (C5) by first sliding the regulator lock toward the rear of the grill, inserting
the Regulator Control Valve fully into the exposed burner tube, and then releasing the regulator lock. Next, press the end of
the Ignitor Wire (C7) onto the push button ignitor as shown.
Step 2
- Place the Side Shelves RH and LH (C1 & C2) into position by aligning the mounting rods with the bushing located
in the firebox bottom. Press the shelves into place firmly. Place the Trough (C3) into the Firebox Bottom, then place the
Cooking Gate (C4) into the Trough. The Cooler Bags (C6) rest on the bottom shelf of the grill cart, as shown.
C5 – Regulator Control Valve 1
C5
C2
C1
C6
C6
C3
C4
C7 – Ignitor Wire
Part Qty.
1
C7
Regulator Lock
1. Slide to rear
Regulator
2. Insert Regulator fully
into burner tube.
3. Release lock.
