Char-Broil INFRARED 10401582 - Manual (Page 3)

Key Qty Description
A 1 Grill Lid
B 1 Cooking Grate
C 1 Trough
D 1 Burner
E 1
F 1 Firebox Bottom
G 1 Heat Shield
H 2 Side Lift Mechanism
I 1 Rear Lift Mechanism
J 1 Left Side Shelf
K 1 Right Side Shelf
Inner Reflector
L 1 Regulator Control Valve
M 2 Wheel
Key Qty Description
N 1 Hinge Set
O 1
P 1 Handle
Q 1 Logo Plate
R 1 Electrode with Wire
S 2 Side Shelf Bushings
T 2 Cooler Bag
U 2 Axle Rod
X. 1 RH Cart Fascia
Venturi Latch Assembly
V 1 Cart Base
W 1 LH Cart Fascia
Y 1 Match Holder
Z 2 Cooler Tray Kit
NOTE: Some grill parts shown in the assembly steps may differ slightly in appearance from
those on your particular model. However, the method of assembly remains the same.
Key Qty Description
AA 1 Handle Heat Sheild
BB 1 Lid Clasp
CC 2 Cart Foot
DD 10 Tube Plug
EE 1 Venturi Guard
FF 1 Piezo Ignitor Button
GG 2 Cooler Liner
... 1 Hardware Pack
... 1 Assembly Manual, English
... 1 Assembly Manual, Spanish
1 Assembly Manual, French
1 Product Guide, English
... 1 Product Guide, Spanish
... 1 Product Guide, French
...
...
K
A
L
H
D
S
Q
F
I
J
P
N
3
ASSEMBLY GUIDE

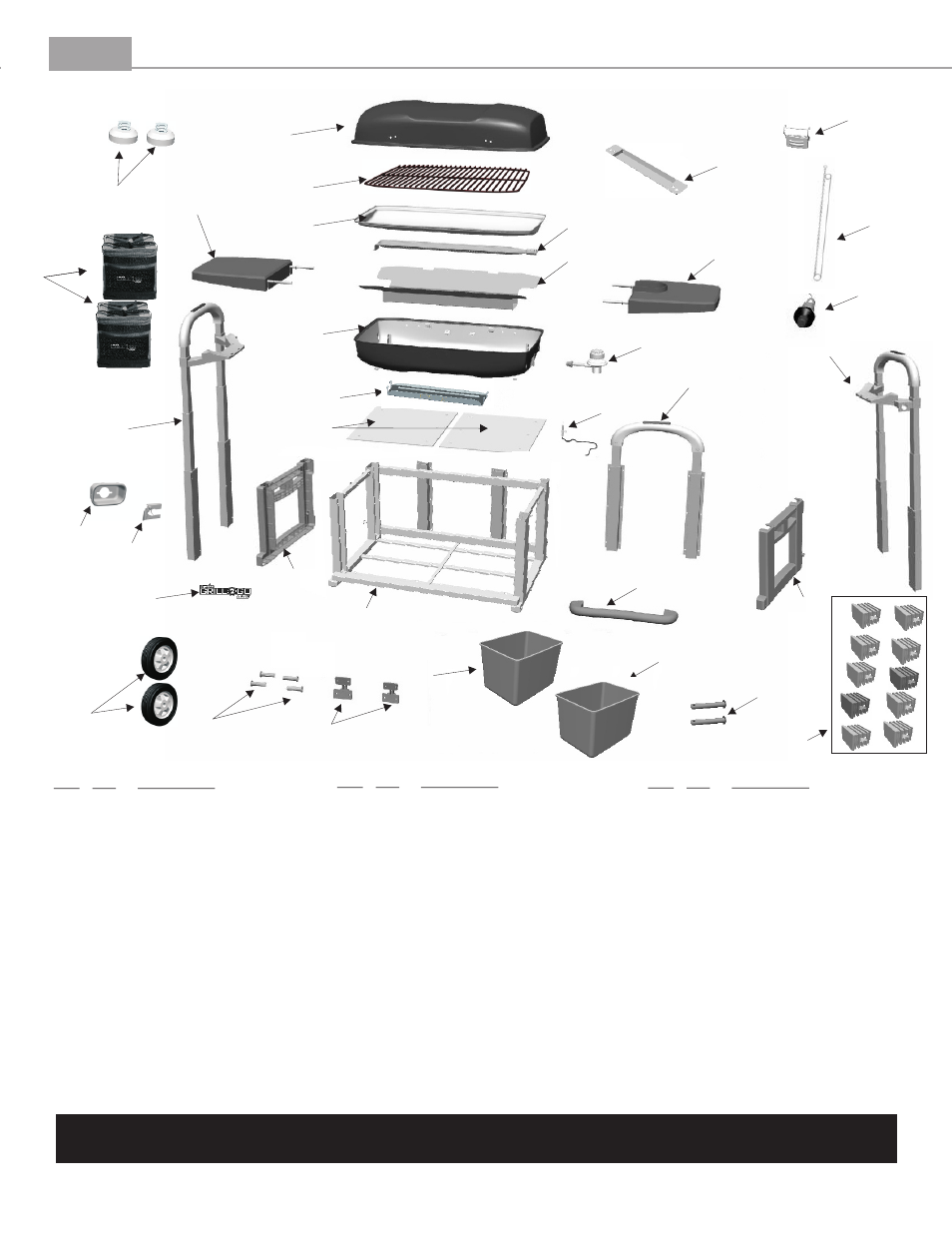

Grill Parts Diagram
M
B
C
E
G
Y
V
W
X
Z
R
U
GG
GG
AA
H
BB
CC
DD
EE
O
FF
T T
