Mounting the wedge dome camera – Interlogix TruVision IP Camera Installation Guide User Manual

Page 21

background image

Installation Guide

21

5.

Reinstall the lower dome and tighten the screws.

Mounting the wedge dome camera

To mount the wedge dome camera on a ceiling:

1.

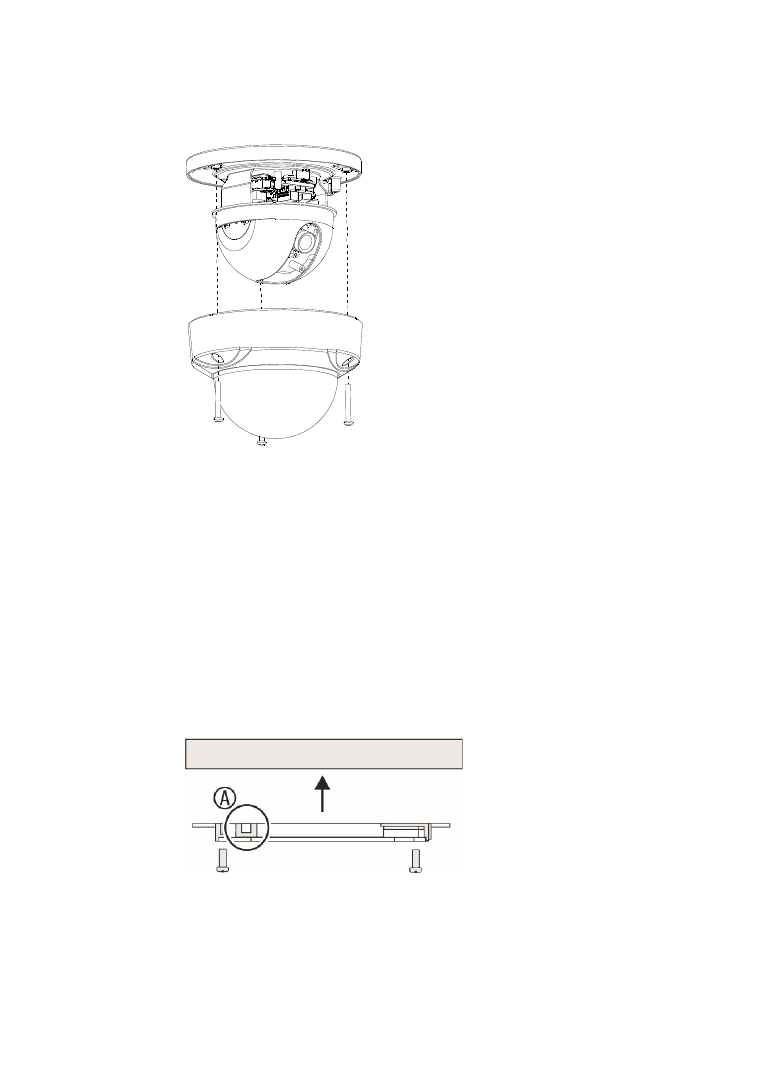

Drill the screw holes on the ceiling with the supplied
drilling template. To route the cables from the base of the
camera, cut a cable hole in the ceiling.

2.

Fix the converter pan to the ceiling (optional).

Note: If required, you can remove the tabs (A) on the
side of the converter pan to pass the cables through.

3.

Loosen the set screws with a hex wrench (supplied) to
remove the dome enclosure.
