12 Installation

Guide

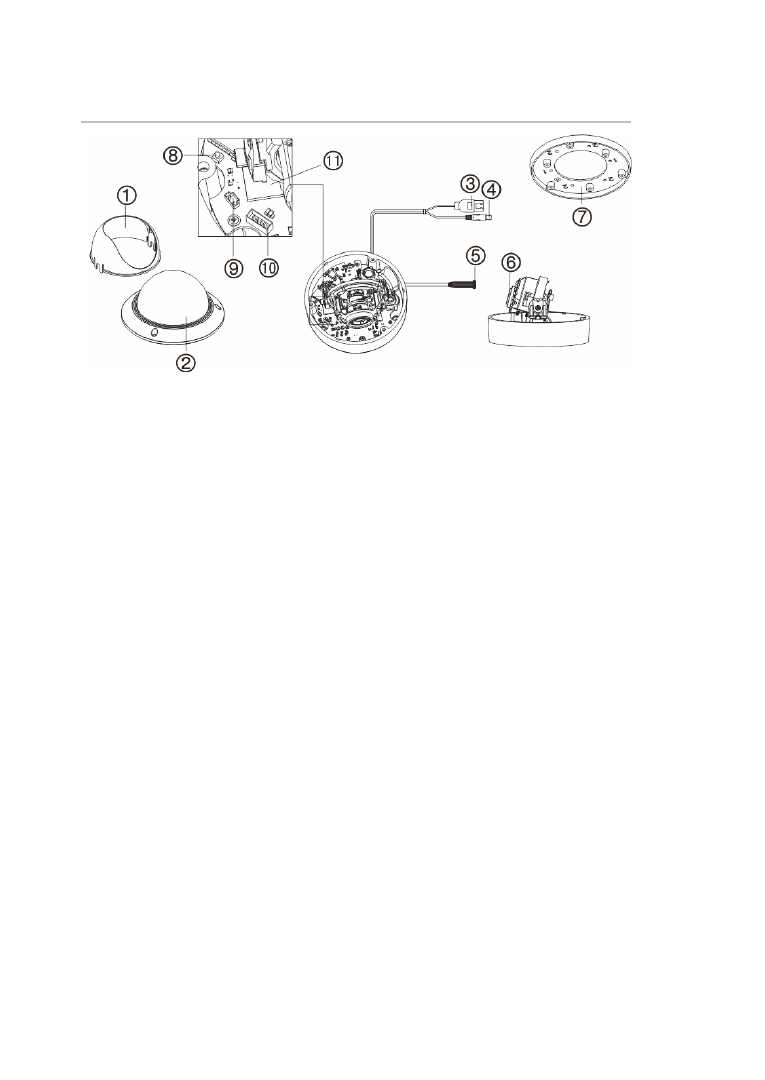

Figure 4: IP VF dome camera

1. Dome liner

2. Housing

3. Ethernet RJ45 PoE port

4. Power supply

5. Audio and alarm cables

6. Lens

7. Mounting plate

8. Reset button

9. Analog video output

10. Serial port

11. SD card

Setting up the camera

Note:

If the light source where the camera is installed

experiences rapid, wide- variations in lighting, the camera may
not operate as intended.

To quickly put the camera into operation:

1. Prepare the mounting surface.

2

Mount the camera on the ceiling using the appropriate
fasteners. See “Mounting the bullet camera” on page 13.

3.

Set up the camera’s network and streaming parameters
so that the camera can be controlled over the network.
