4. If you want to route the cables inside the ceiling, drill a

cable hole in the ceiling or wall using the drill template.

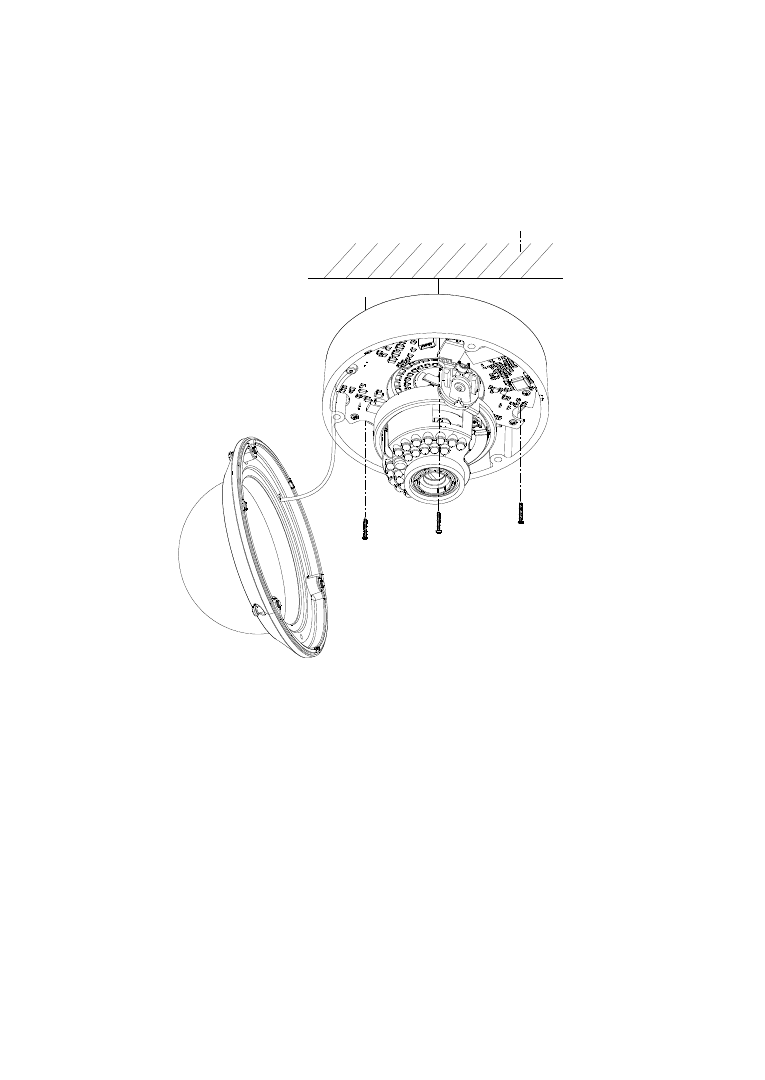

5. Attach the camera to the ceiling or wall by aligning the

housing holes with those in the ceiling. Secure the
camera with the supplied screws as shown below.

6. Route the cables through the cable hole.

Note: If required, you can route cables through the side
screw opening of the camera

7.

Connect the video output connector to the monitor.
Connect the power connector to the power supply.

8.

Adjust the image and focus.

1) Three-axis

adjustment.

View the camera image using the monitor. Hold the
panning table and pull out slightly to adjust the
