8 Installation Guide
9. See “Accessing the camera over the internet” on page
14 to configure the camera over the internet. Refer to
the Configuration Manual for detailed information.
Flush-mount camera

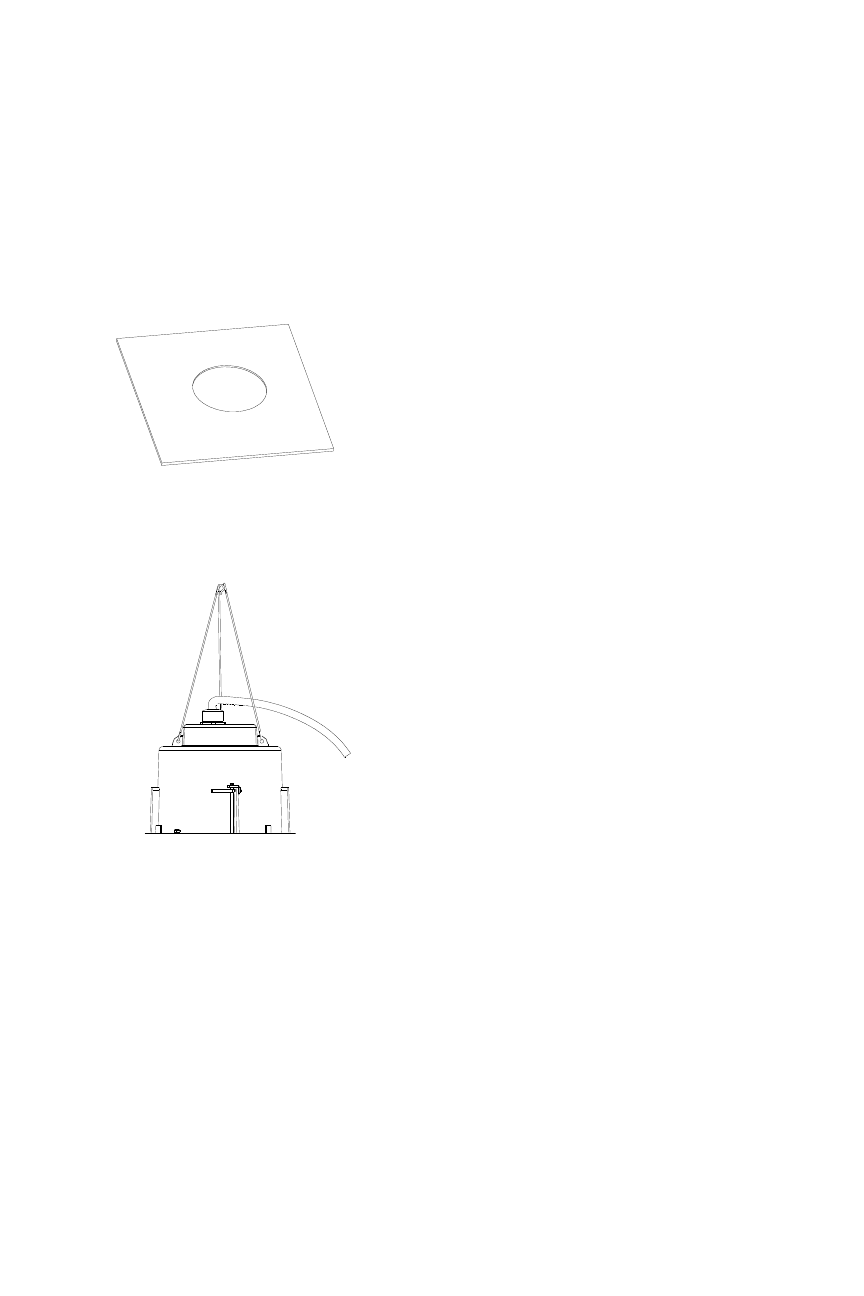

1. Drill a hole on the ceiling using the drill template.
2. Tie three safety cables (not supplied) to the safety
hooks on the camera and hang the camera from a
secure point.
3. Unscrew the bubble from the camera and remove the
protective tape from the PTZ module.
4. Press the two tabs on either side of the PTZ module
and remove it from the camera housing.
5. Route the cables from the bracket and connect them to
the PCB of the module through the cable entry hole on
the top of the housing.
Note: If alarm and audio input/output relays are to be
used, also connect them to the PCB of the module.
