Installation Guide

7

Safety cable

Note: If alarm and audio input/output relays are to be
used, also connect them to the PCB of the module.
Caution: The safety cable is made of metal. Please
ensure that it does not touch the PCB of the module.

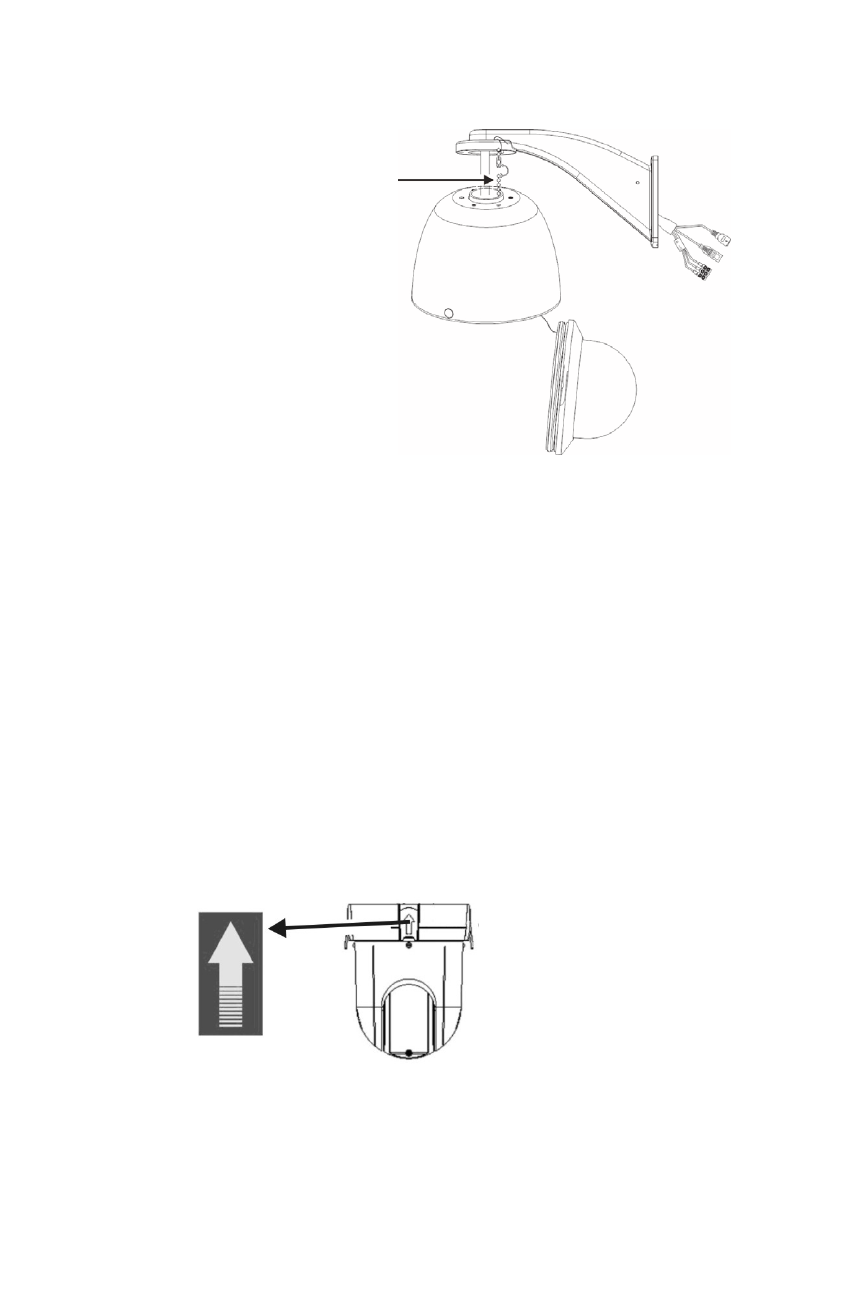

6. Attach the camera housing to the bracket using the

screws enclosed with the bracket.

7. Insert the PTZ module into the housing:

Position the tabs on the PTZ module by aligning the
arrow label on the module with those on the housing
(see below). The module should firmly snap into
position. If using a SD card, insert it into the module
before inserting the module into the housing.

8. Re-attach the bubble by screwing it to the housing.
