Installation Guide

11

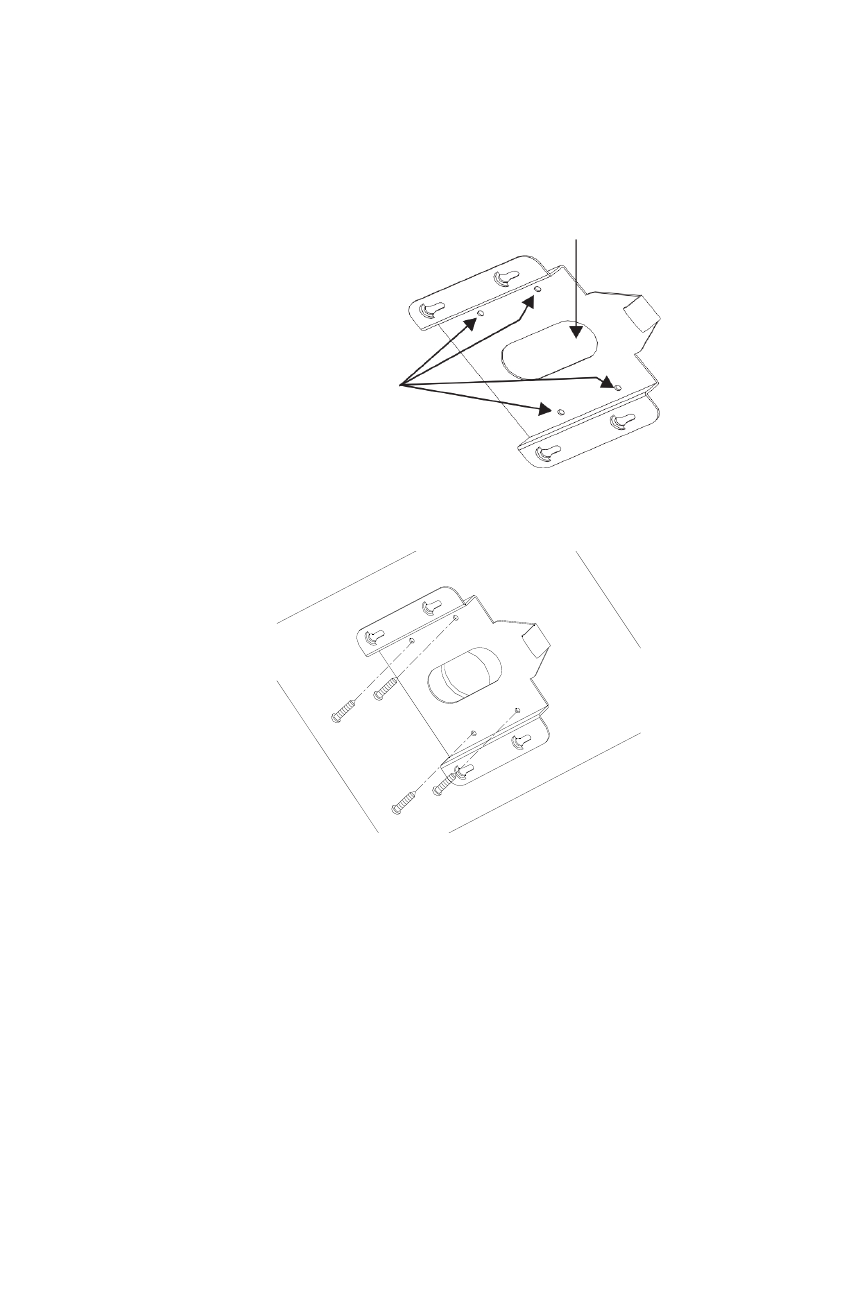

1. Use the mounting base as a template to mark four

screw holes onto the ceiling. If you route cables from
the top of the housing, mark the cable hole on the
ceiling and drill a hole.

Cable hole

Screw holes

2. Secure the mounting base to the ceiling with the set

screws.

3. Unscrew the bubble from the camera and remove the

protective tape from the PTZ module.

4. Press the two tabs on either side of the PTZ module

and remove it from the camera housing.

5. Route the cables from the bracket and connect them to

the PCB of the module through the cable entry hole on
the top or side of the housing.

Note: If alarm and audio input/output relays are to be
used, also connect them to the PCB of the module.
