Interlogix TruVision Device Manager - Manual (Page 8)

6 TruVision Device Manager User Manual

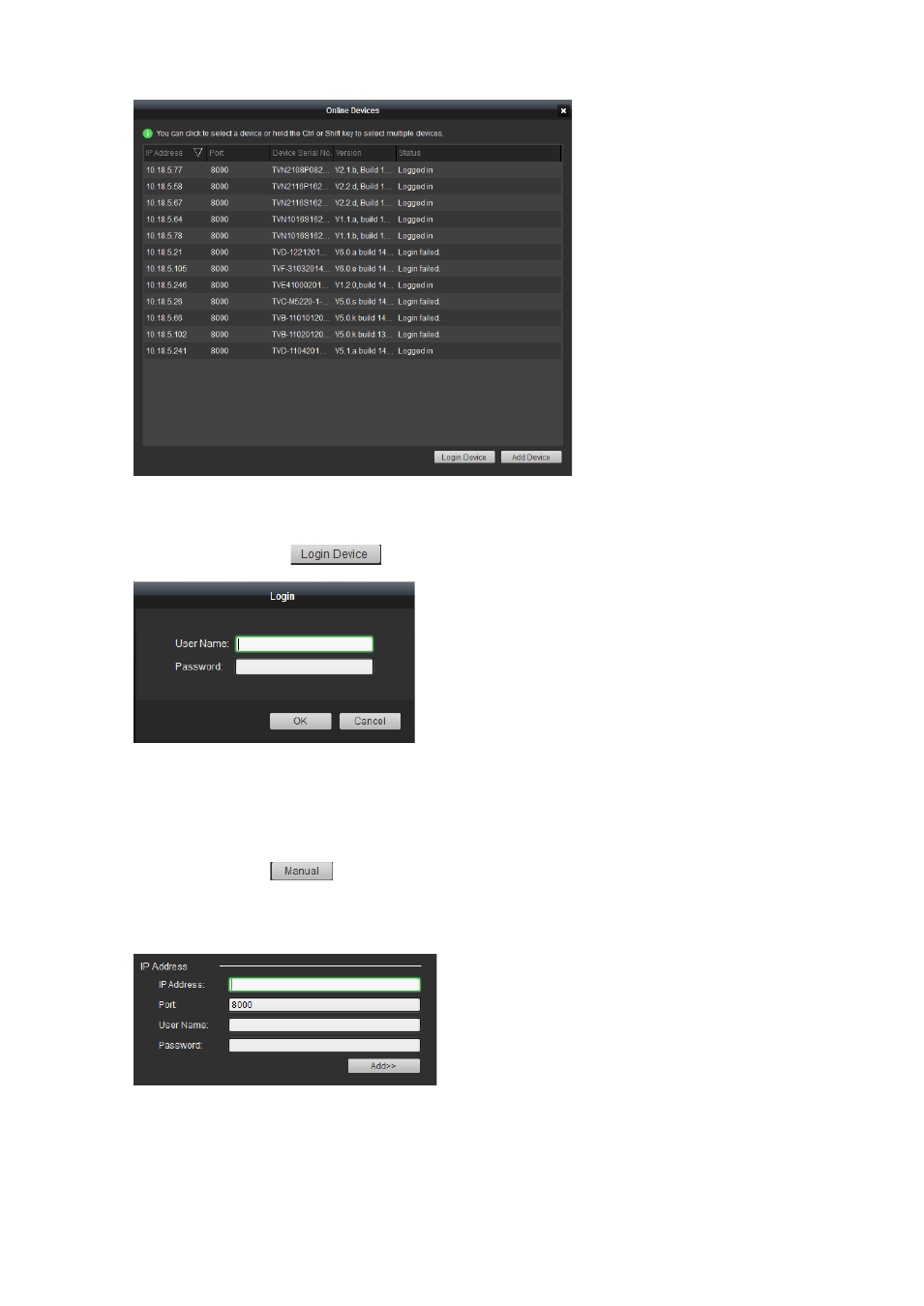

2. Select the desired device.
Click a device to select it or hold the Ctrl or Shift key to select multiple
devices. Then click
. The Login dialog box appears.
3. Enter the user name and password, and click OK to save the settings.
To select devices for firmware upgrade by IP address:
1. Click the FW upgader tab.
2. In its panel, click . The Search window pops up.
3. In the IP Address panel of the Search window, enter the IP address, port,
user name, and password of the device.
4. Click Add to add the device to the upgrading device list for upgrading.
5. In the IP Segment panel, enter the start IP address, end IP address, port,
user name, and password to search for applicable devices.
