UltraView UVC-6130-1 WDR Box Camera User Manual 9
To access the Setup menu:
1. Press the OSD control pad ( Enter ) to access the Main menu and its
submenus.
2. Push the pad up, down, left and right to move between menu options.
3. Press the OSD control pad to select an option.
4. When in a sub menu, select Return to return to the previous menu.
5. To exit the Main menu, move the cursor to Exit at the bottom of the screen
and press Enter . All changes are saved.
Select the lens type
In the Setup menu, go to Lens and select the type of lens used with the camera,
Auto or Manual. Select Manual for a manual lens and adjust the options
manually, or select Auto to set the lens type to autoiris. The Autoiris menu
appears.

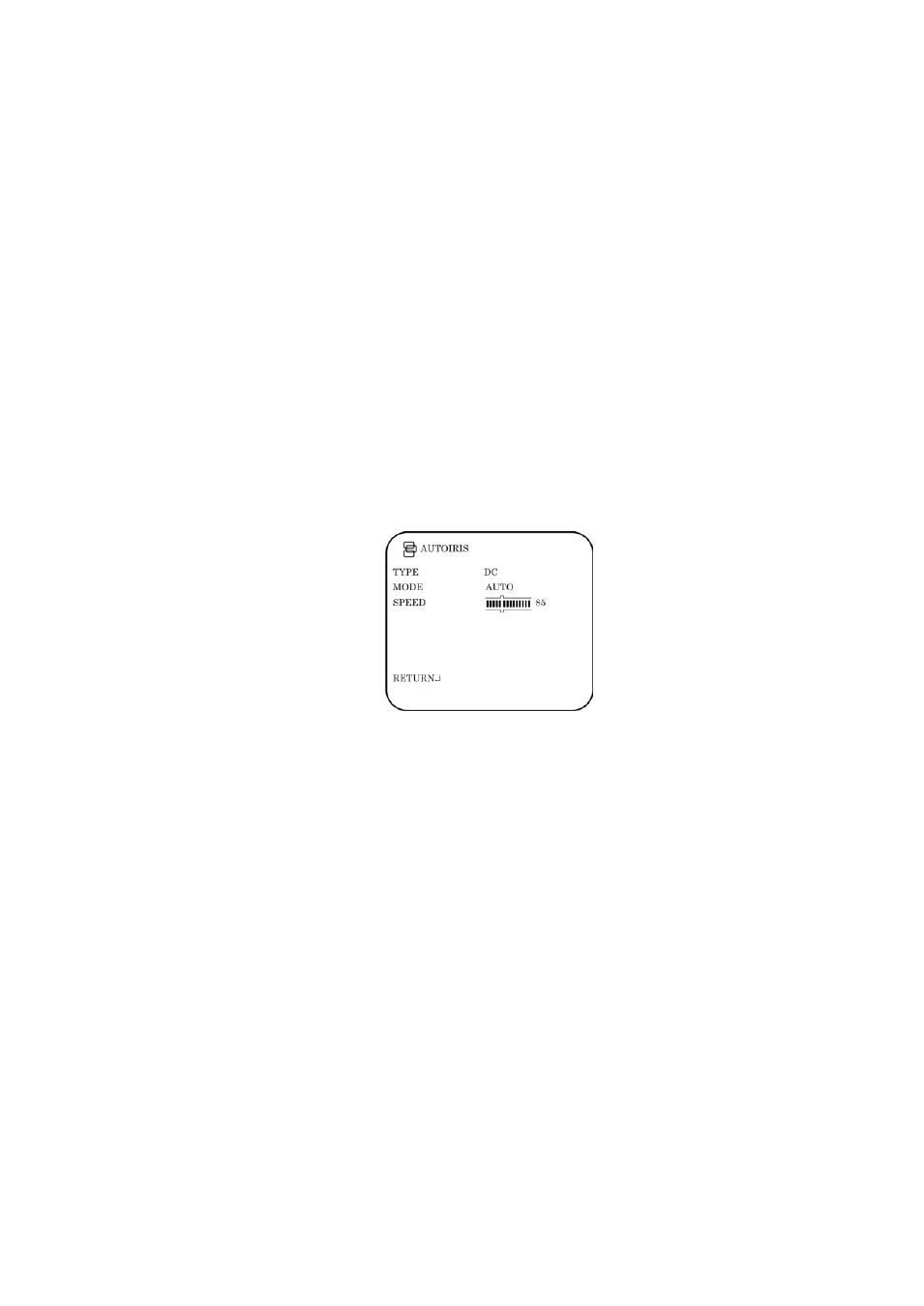

Autoiris menu:
Type: Select the drive mode of the lens. Only DC is available.
Mode: Select the iris control mode. Auto (automatically controlled depending on
the light), Open (always open), or Closed (always closed).
Speed: When the mode is set to Auto, select the convergence speed of the iris
between 0 and 255.
Set shutter/AGC
In the Setup menu, go to Shutter/AGC and select the required light control
option: Manual, Auto or Traffic. Auto is default. The selected menu appears:
