8 UltraView UVC-6130-1 WDR Box Camera User Manual
Programming
Once the camera hardware has been installed, the camera can then be
configured.
Access the Setup menu
The Setup menu provides access to the camera configuration options. The on-
screen display (OSD) is only available in English.
Program the camera by attaching a standard video monitor to the system.

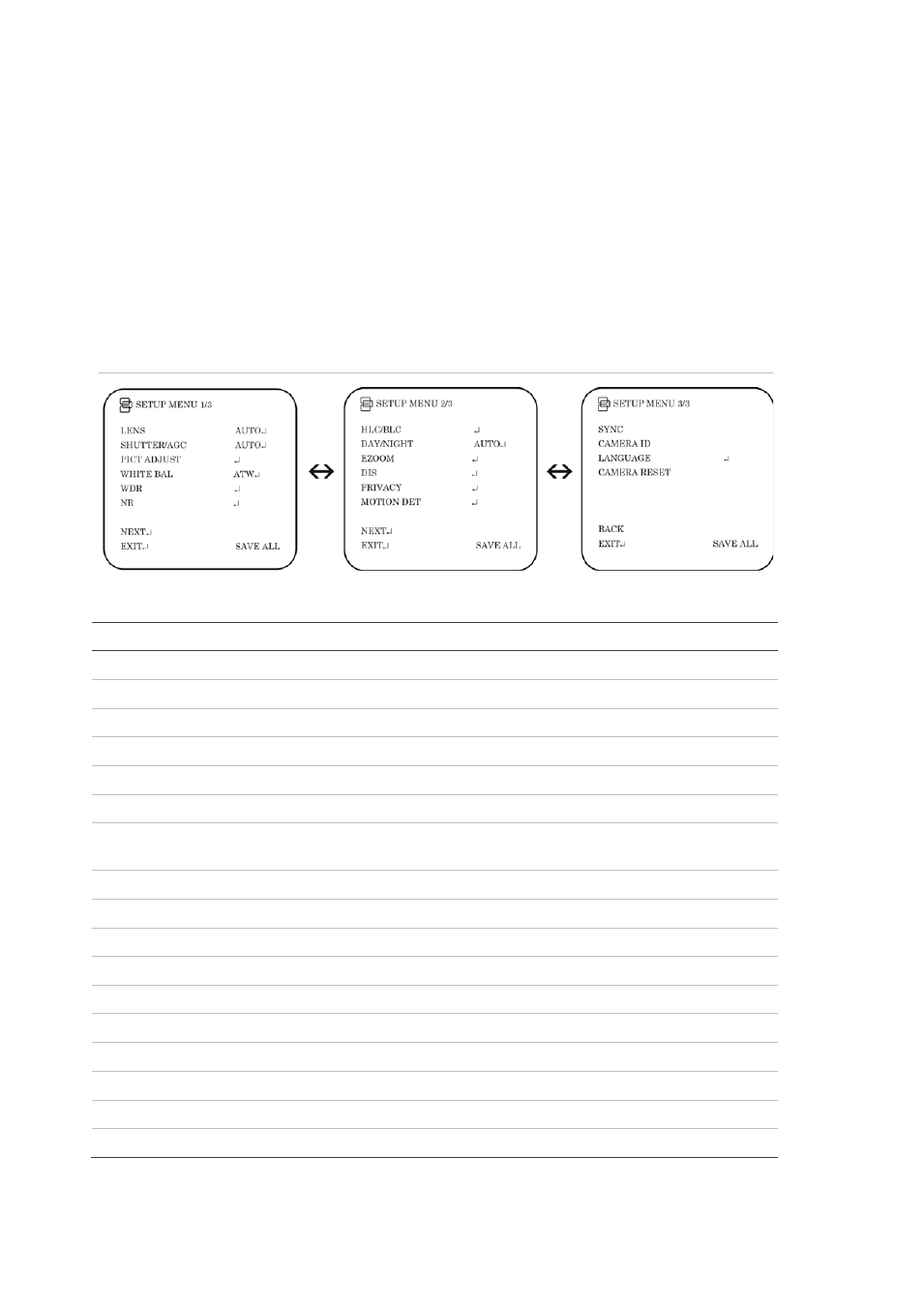

Figure 4: The Setup menu
Table 2: Setup menu description
Menu item Description
Lens Defines the lens type as manual or autoiris.
Shutter/AGC Defines the method of light control.
Pict Adjust Defines the image quality functions.
White Bal Defines the white balance (WB) set up.
WDR Defines the wide dynamic range (WDR) set up.
NR Defines the digital noise reduction level.
BLC/HLC Defines the highlight compensation (HLC) and backlight compensation
(BLC) set up.
Day/Night Defines the day/night (D/N) set up.
EZoom Enables/disables digital zoom.
DIS Enables/disables the digital image stabilizer.
Privacy Defines privacy mask set up.
Motion Det Defines the motion detection set up.
Sync Displays the current synchronization mode.
Camera ID Defines the camera ID displayed on-screen.
Language Defines the language of the OSD.
Camera Reset Resets the camera to factory default settings.
Exit & save Exits the menu and returns to live mode. Saves changes made.
