10 TruVision TVD-7120VE-2 / TVD-7125VE-2 Camera User Manual

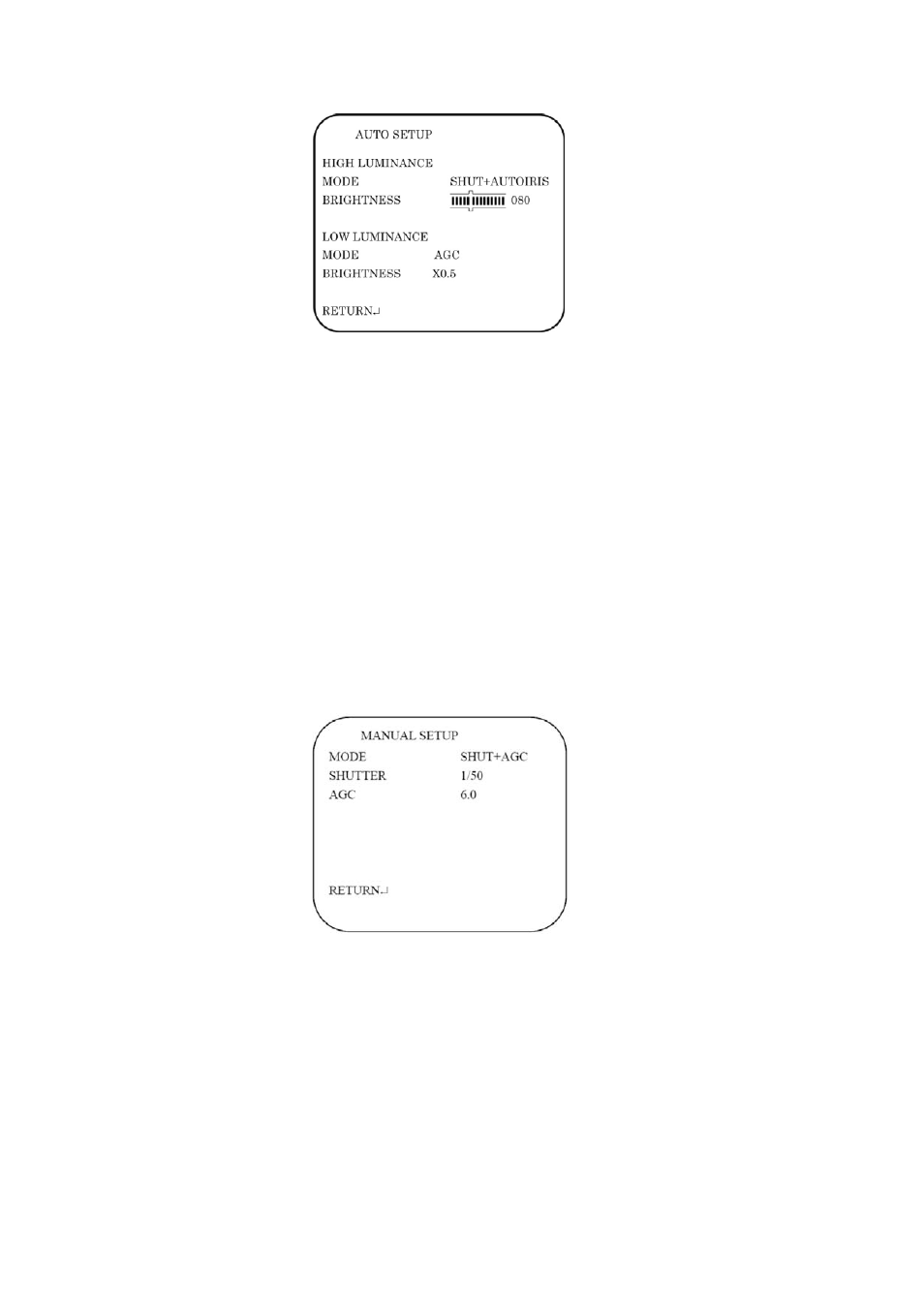

Automatic shutter menu:
Select the parameters for high and low luminance conditions:
High Luminance: Sets the lux level for bright light conditions such as
daylight.
Mode : When lens type is AUTO IRIS, you can choose SHUT+AUTO IRIS or
AUTO IRIS mode. When the lens type is manual, only SHUT mode is
available.
Brightness
: Select the brightness level to which the iris and shutter speed will
adjust automatically. The value ranges from 0 to 255.
Low Luminance: Sets the lux level for low light conditions.
Mode : Only AGC is available.
Brightness : Adjust the brightness to X0.25, X0.5, X0.75 or X1.
Manual shutter menu:
Mode: Only Shut/AGC.
Shutter: Set the manual shutter to 1/60(1/50), 1/100(1/120), 1/250, 1/500,
1/1000, 1/2000, 1/4000 or 1/10000.
AGC: Set the gain level. A higher gain compensates for a brighter scene but
noise increases. Manual AGC can be set to 6, 12, 18, 24, 30, 36, 42 or 44.8
dB.
