TruVision TVD-6120VE-2 / TVD-6125VE-2 Camera User Manual 9
Save changes
Changes are not saved automatically. When all setup changes to the camera are
done, move the cursor in the Setup menu to
Save All and press Enter to save all
changes made.
Select the lens type
In the Setup menu, go to Lens and select the type of lens used with the camera,
Auto or Manual. Select Auto to set the lens type to auto iris or select Manual for
a manual lens. Manual is default. The Auto Iris or Manual menu appears.
Manual menu:
Select a higher shutter speed value to see movement and a lower value to see
clearer images. The shutter speed available are 1/50, 1/120, 1/250, 1/500,
1/1000, 1/2000, 1/4000 and 1/10000. The AGC value can be set between 6 and
44.8.

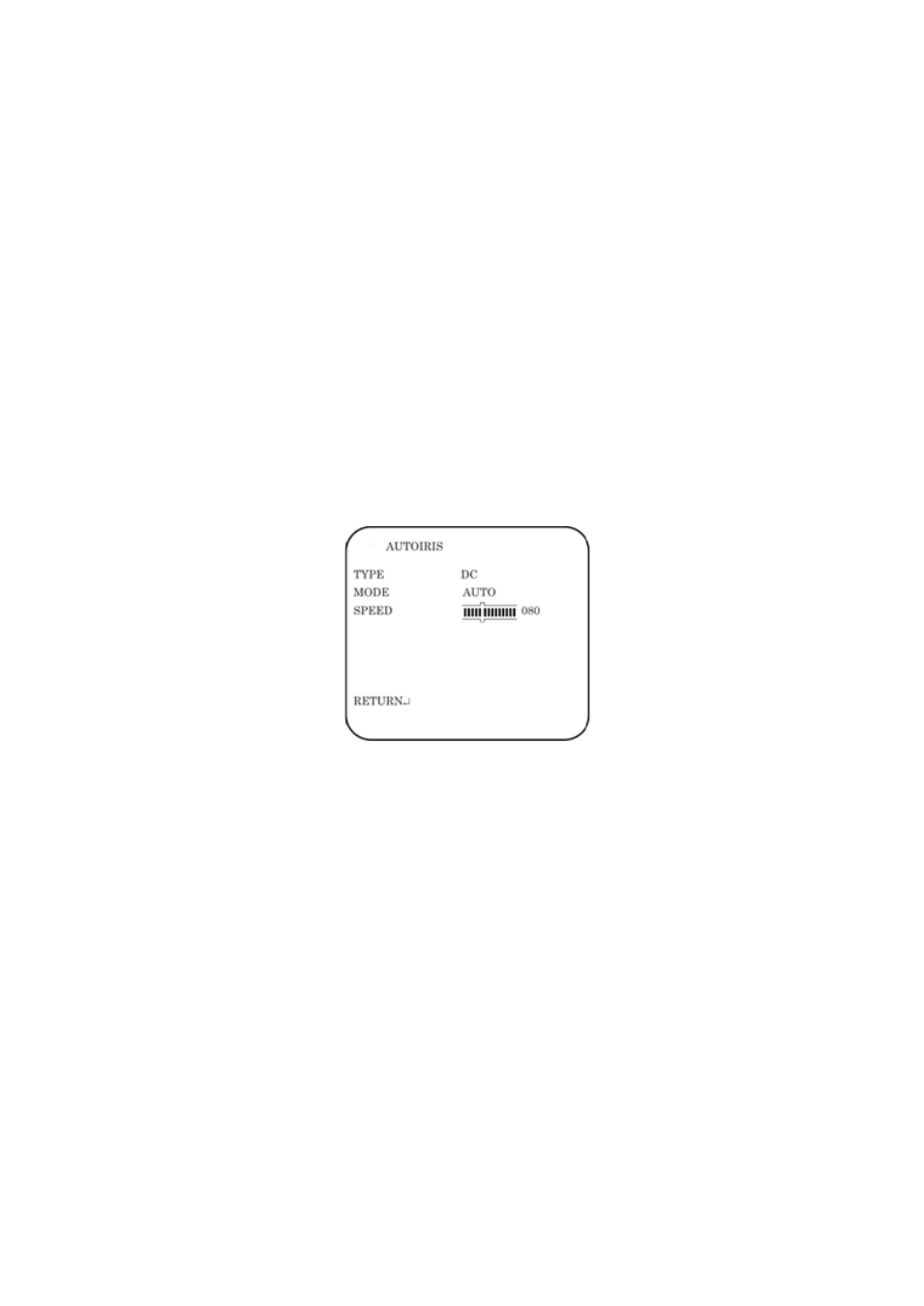

Auto iris menu:
Type: Select the drive mode of the lens, DC or Video.
Mode: Select the iris control mode. Auto (automatically controlled depending on
the light), Open (always open), or Closed (always closed).
Speed: When the mode is set to Auto, select the convergence speed of the iris
between 0 and 255.
Set shutter/AGC
In the Setup menu, go to Shutter/AGC and select the required light control
option, Manual or Autoiris. Auto is default. The Manual or Auto menu appears:
