P/N 1069680 • REV 1.0 • ISS 14APR10 9 of 12

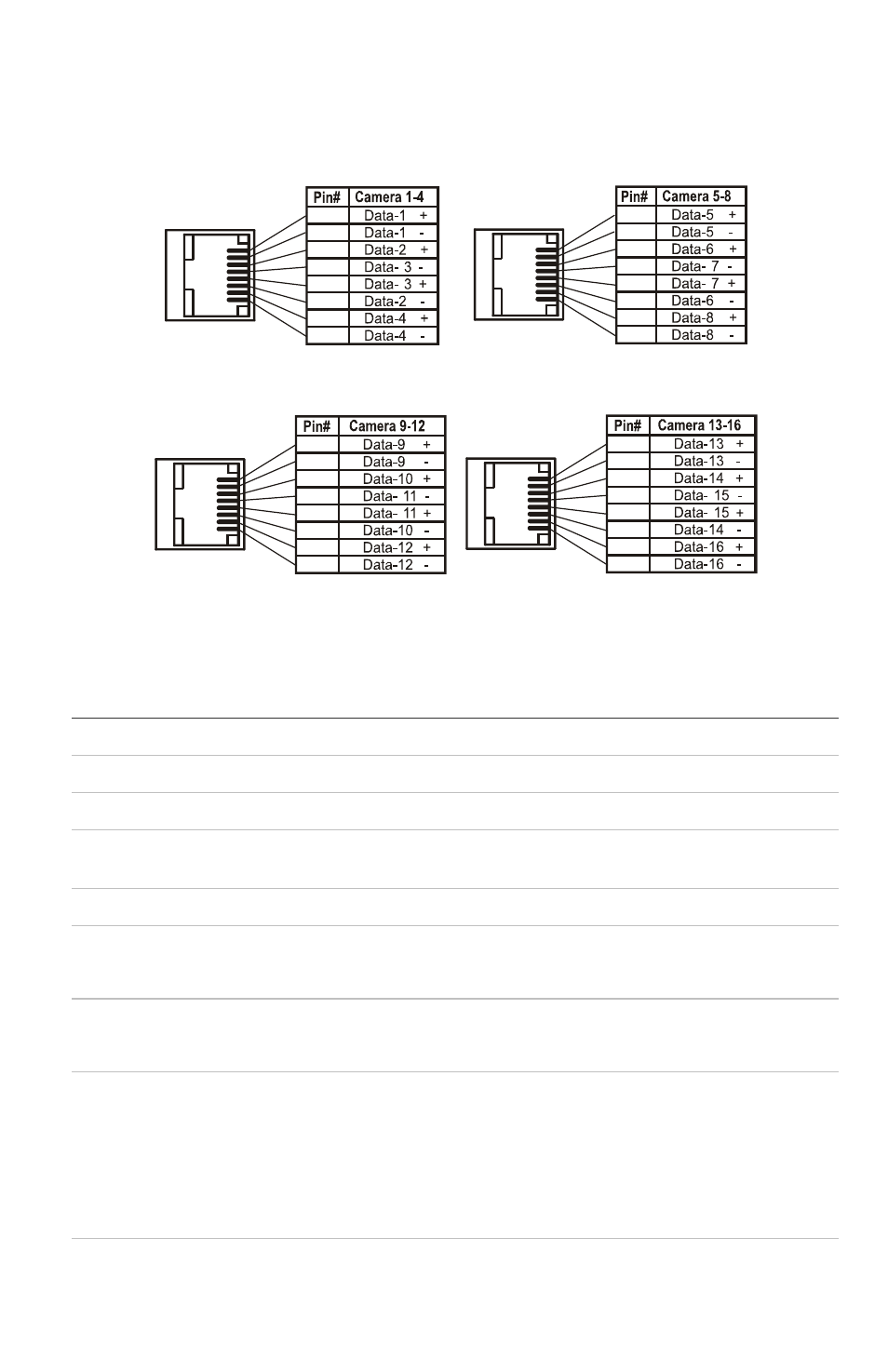

Midspan/Control Room Data Connections
GEC-4VDPC, GEC-16VDPC, GEC-8VPDCHUB, and GEC-16VPDCHUB
(Camera 1-8)
1
2
3
4
5
6
7
8 1
2
3
4
5
6
7
8
GEC-16VDPC and GEC-16VPDCHUB (Camera 9-16)
1
2
3
4
5
6
7
8 1
2
3
4
5
6
7
8
Technical Specifications*
Electrical
Video Format NTSC, PAL, SECAM
Frequency DC to 10 MHZ
Coax 75 Ohm
Twisted Pair 100 Ohms +/- 20%, 24 AWG min., unshielded Category 2-7 up to 750 ft.
(228m)
Power Protection One self-resetting fuse at 1.5 A per channel
Input Voltage Pass through (GEC-4VDPC, GEC-16VDPC)
115/230 VAC 50/60 Hz externally switch selectable
Input Current 2.4 A at 115 VAC / 1.2 A at 230 VAC (GEC-8VPDCHUB)
4.8 A at 110 VAC / 2.4 A at 220 VAC (GEC-16VPDCHUB)
Camera Power Voltage: Isolated class II, individually switch selectable to 24 VAC, off or 28
VAC
Camera Current: 1 A max per camera
6 A aggregated, 170 VA total power (GEC-8VPDCHUB)
12 A aggregated, 340 VA total power (GEC-16VPDCHUB)
