P/N 1069680 • REV 1.0 • ISS 14APR10 5 of 12

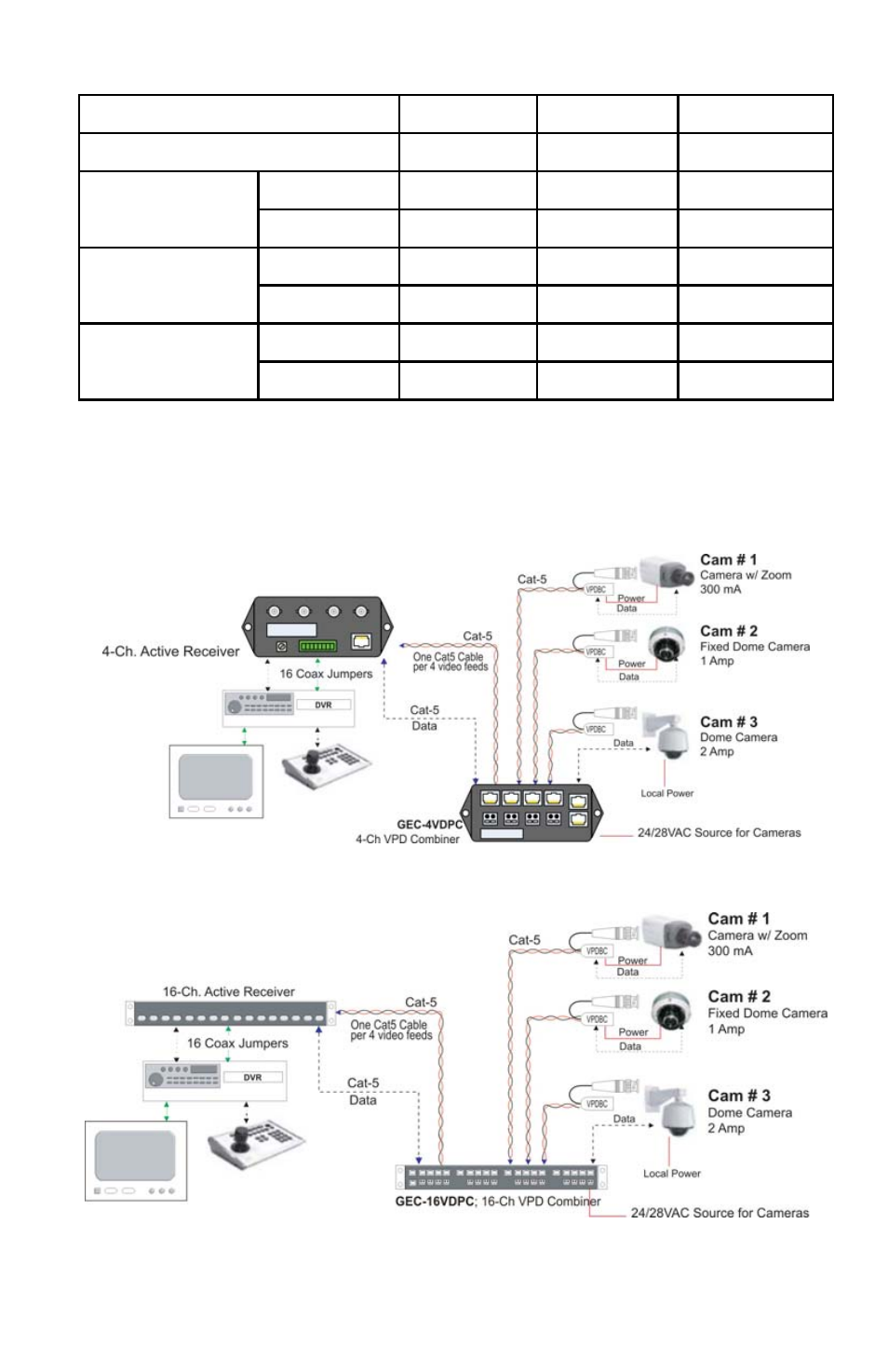

Table 2: Power Distance Chart
Power Supply Voltage 12 VDC 24 VAC 28 VAC
Voltage at the Camera 10.8 VDC 21.6 VAC 21.6 VAC
Dual 24 AWG 448 ft. / 137 m 896 ft. / 273 m 2,388 ft. / 728 m
100 mA Camera
Dual 23 AWG 564 ft. / 172 m 1,130 ft. / 345 m 3,012 ft. / 918 m
Dual 24 AWG 150 ft. / 46 m 300 ft. / 92 m 796 ft. / 243 m
300 mA Camera
Dual 23 AWG 190 ft. / 58 m 378 ft. / 115 m 1,004 ft. / 306 m
Dual 24 AWG 46 ft. / 14 m 90 ft. / 28 m 240 ft. / 73 m
1 AMP Camera
Dual 23 AWG 58 ft. / 18 m 114 ft. / 35 m 300 ft. / 92 m
Application Drawings
GEC-4VDPC
GEC-16VDPC
