- 12 -

7. Starting Web Management

The following shows how to start up the Web Management of the Managed Switch. Note the Managed Switch is configured through
an Ethernet connection. Please make sure the manager PC must be set on the same IP subnet address.

For example, the default IP address of the Managed Switch is 192.168.0.100, then the manager PC should be set at 192.168.0.x
(where x is a number between 1 and 254, except 100), and the default subnet mask is 255.255.255.0.

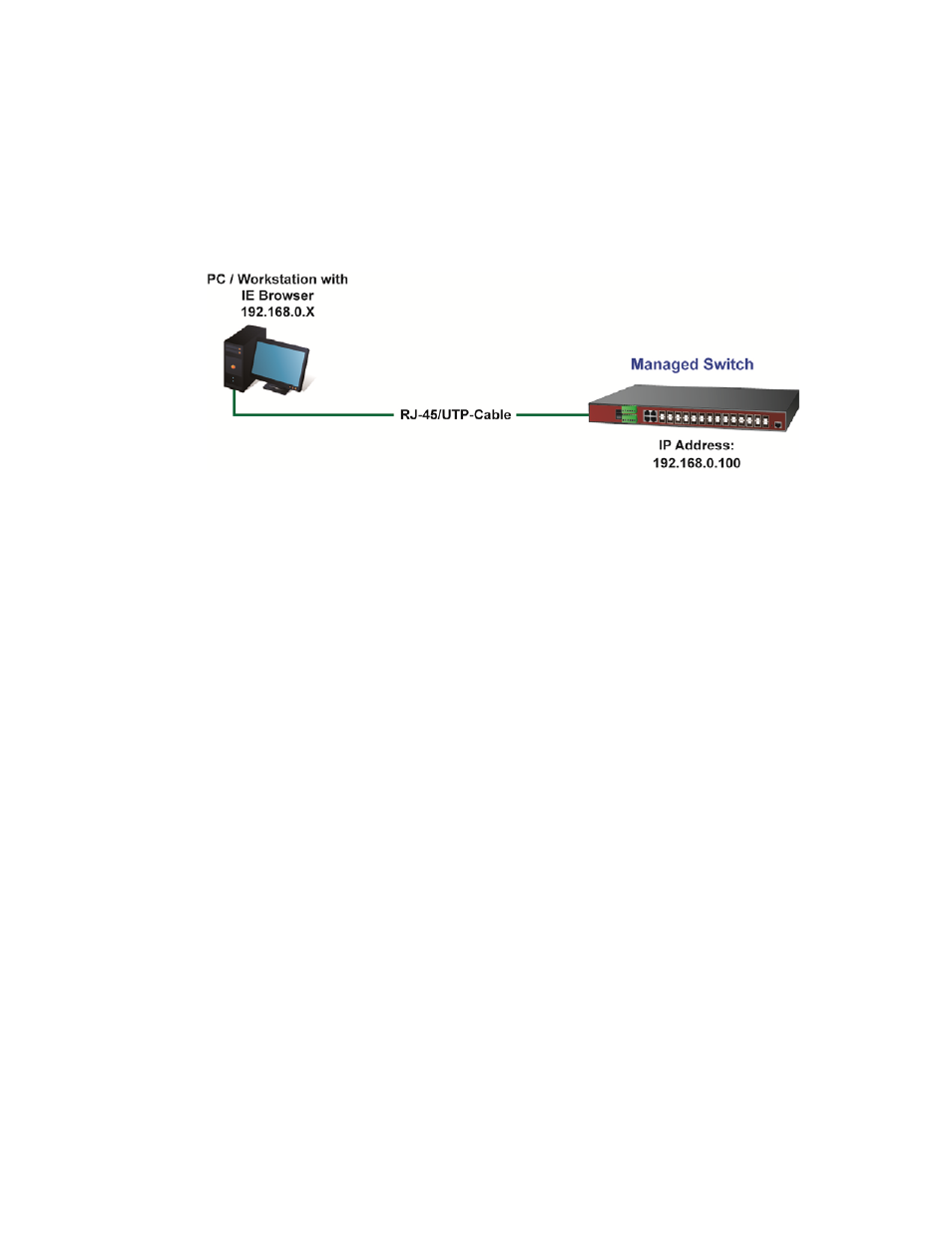

Figure 7-1:

IP Management Diagram
