6 IFS NS3502-8P-2S Quick Installation Guide
5. Configure IP Address
The Managed Switch is shipped with default IP address as following.
IP Address: 192.168.0.100
Subnet Mask: 255.255.255.0
To check the current IP address or modify a new IP address for the Managed
Switch, please use the procedures as follow:
„
Show the current IP address
1. On ”Switch/> ” prompt, enter “ip configuration”.
2. The screen displays the current IP address, Subnet Mask and Gateway. As
show in Figure 5-1.

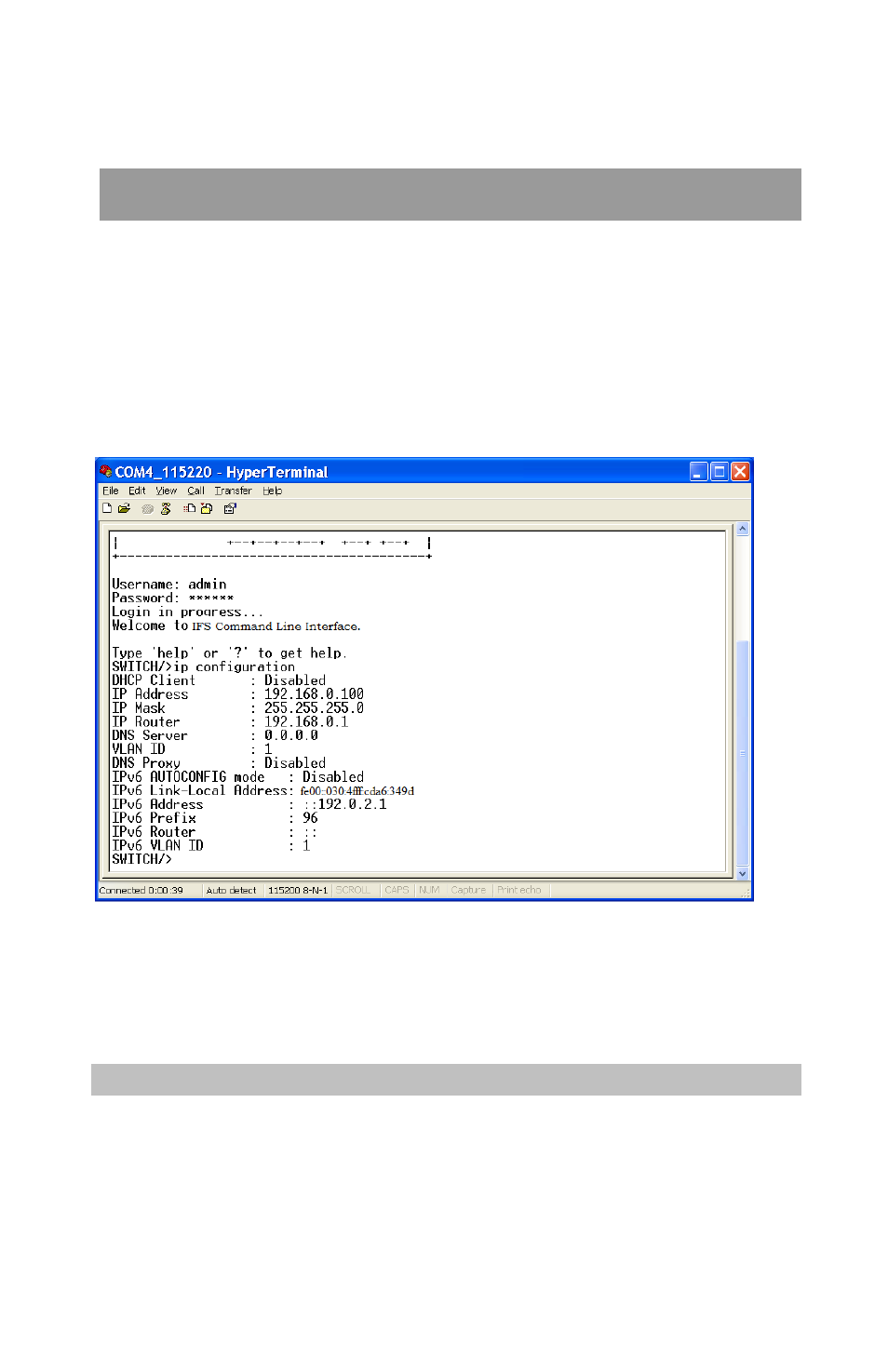

Figure 5-1: Show IP Information Screen
„
Configure IP address
3. On “Switch/> ” prompt, enter the following command and press . As
show in Figure 5-2.
Switch/> ip setup 192.168.1.100 255.255.255.0 192.168.1.1
The previous command would apply the follow settings for the Managed Switch.
IP: 192.168.1.100
Subnet Mask: 255.255.255.0
Gateway: 192.168.1.1
