Terminal Setup
There are three ways to access and setup your switch. They are:
• RS-232 console
• Telnet
•
Web Browser
RS-232 console
To configure the system, connect a serial cable to a COM port on a PC or
notebook computer and to the serial (console) port of the GE-DS-82
Managed Switch. The console port of the Managed Switch is DCE already,
so that you can connect the console port directly through PC without the
need of Null Modem.

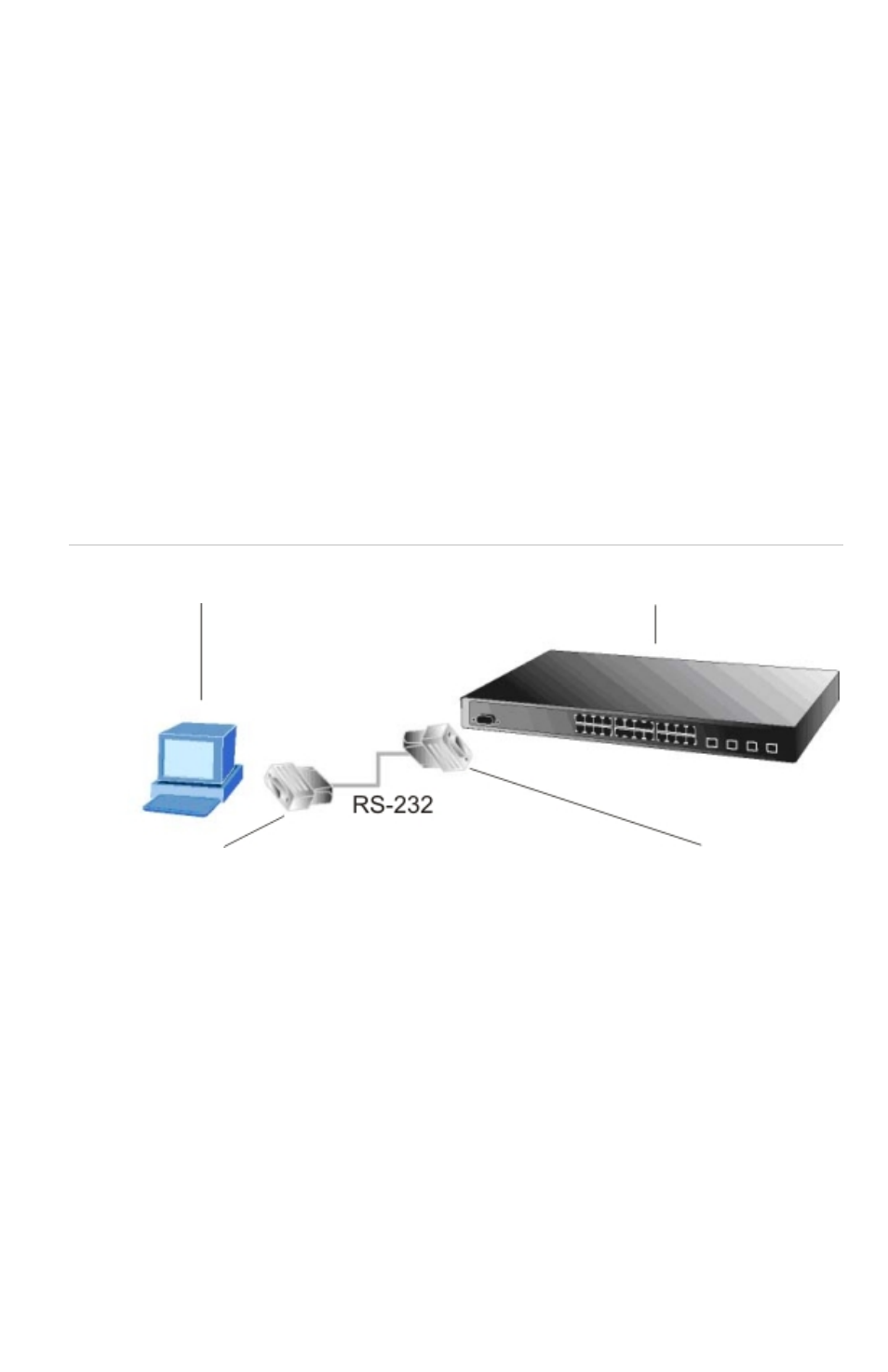

Figure 1: Terminal setup diagram
PC / Workstation with terminal
emulation software
Managed switch
Serial port Serial port 115200,8,n,1
A terminal program is required to make the software connection to the GE-
DS-82 and the GE-DS-82-PoE Managed Switch. Window’s Hyper Terminal
program is a good choice. The Hyper Terminal program can be accessed
from the Start menu.
1. Click START, then Programs/ Accessories and then Hyper Terminal.
2. When the COM1 Properties window appears, configure the COM port
with the following parameters and then click the OK button.
• Baud : 57600
• Parity : None
• Data bits : 8
• Stop bits : 1
• Flow Control : None
